Diagnostic Aids

An intermittent condition may be caused by a poor connection, rubbed-through wire insulation, or a broken wire inside insulation. Check ECM harness connectors for backed-out terminals, improper mating, broken locks, improperly formed or damaged terminals, poor terminal-to-wire connection, and damaged harness.

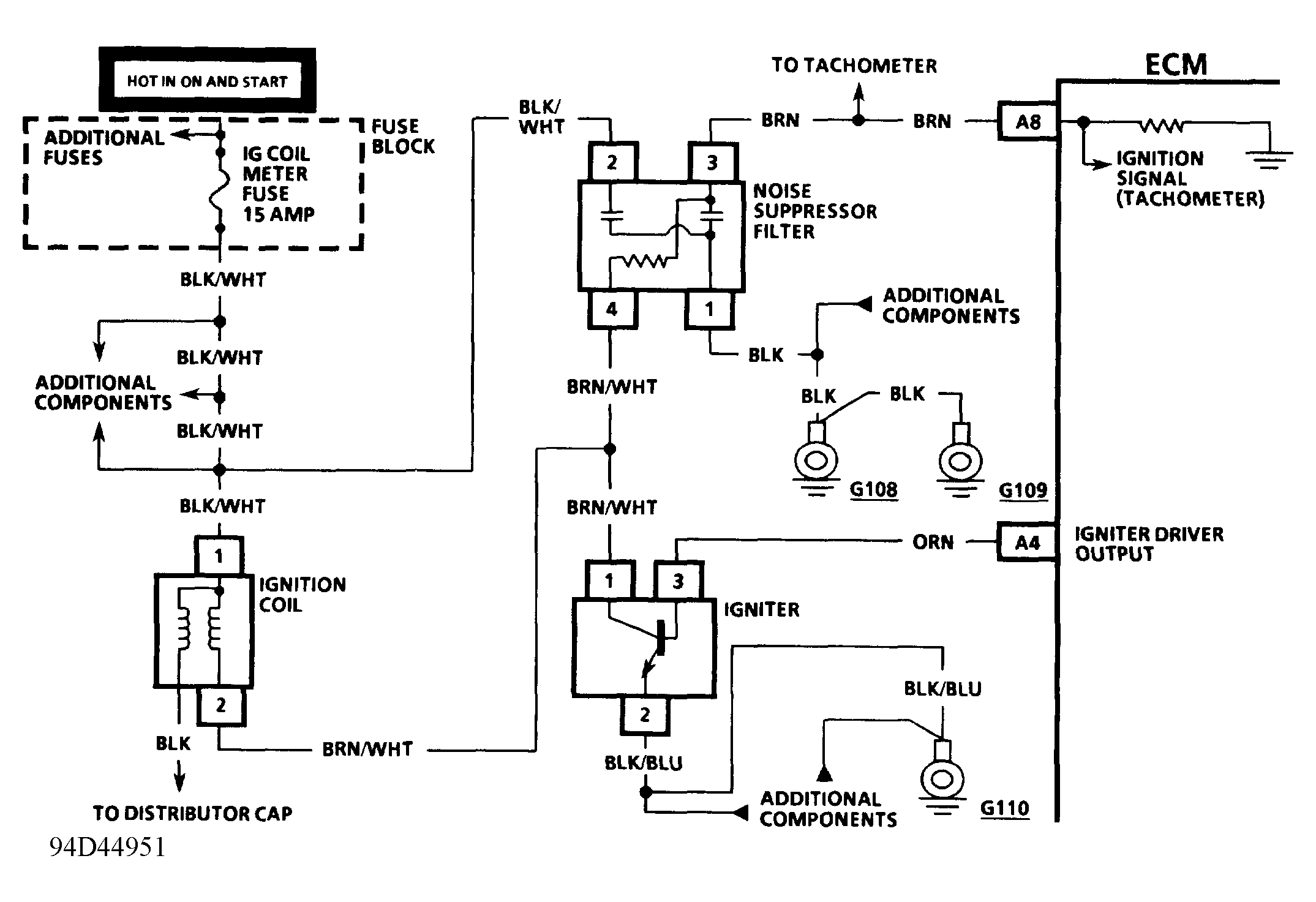

Fig 1: CODE 41 - Schematic (MFI Calif. & New York) No Ignition Signal
G94D44951

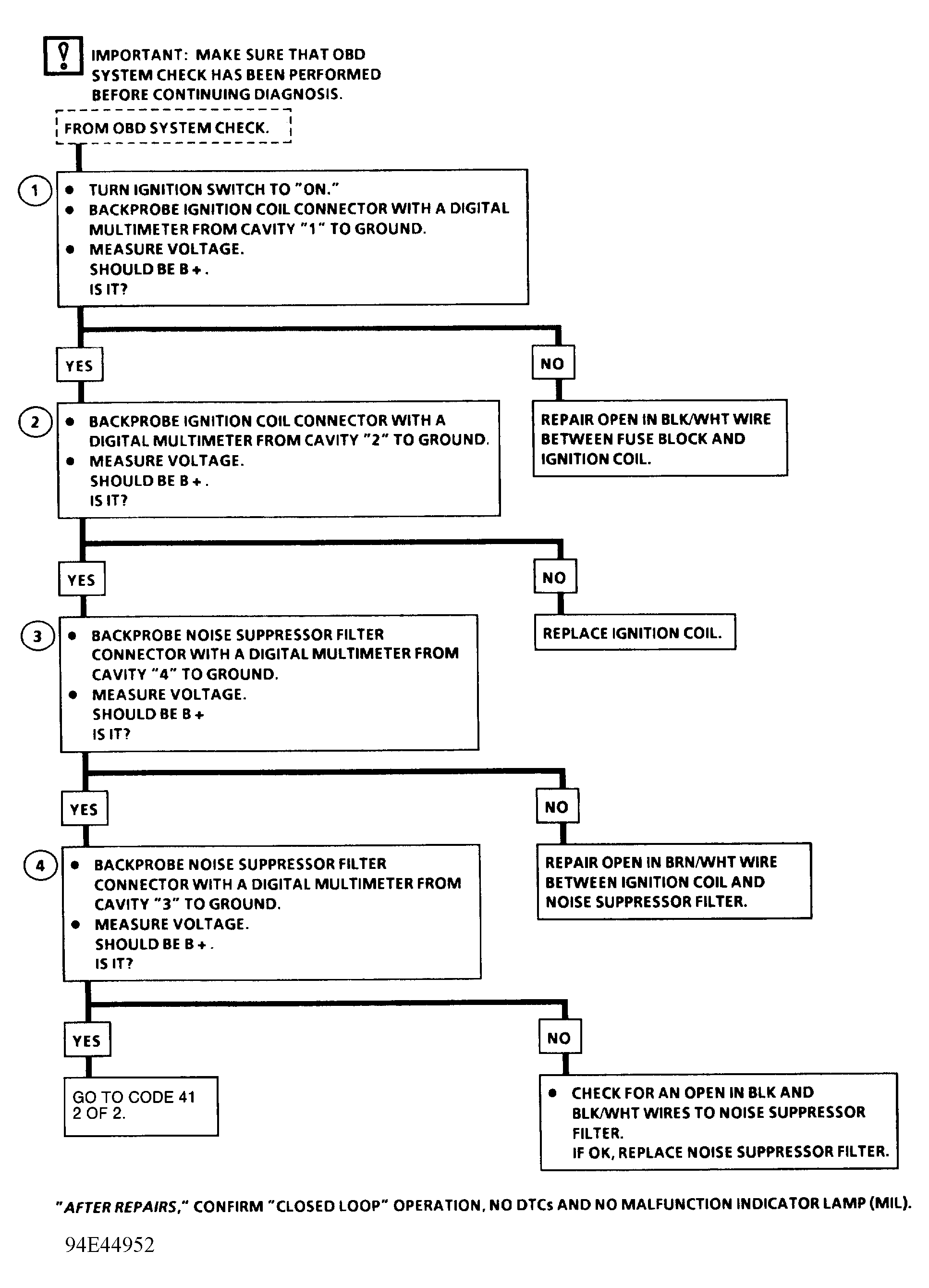

Fig 2: CODE 41 - Flow Chart (MFI Calif. & New York) (1 OF 2) No Ignition Signal
G94E44952

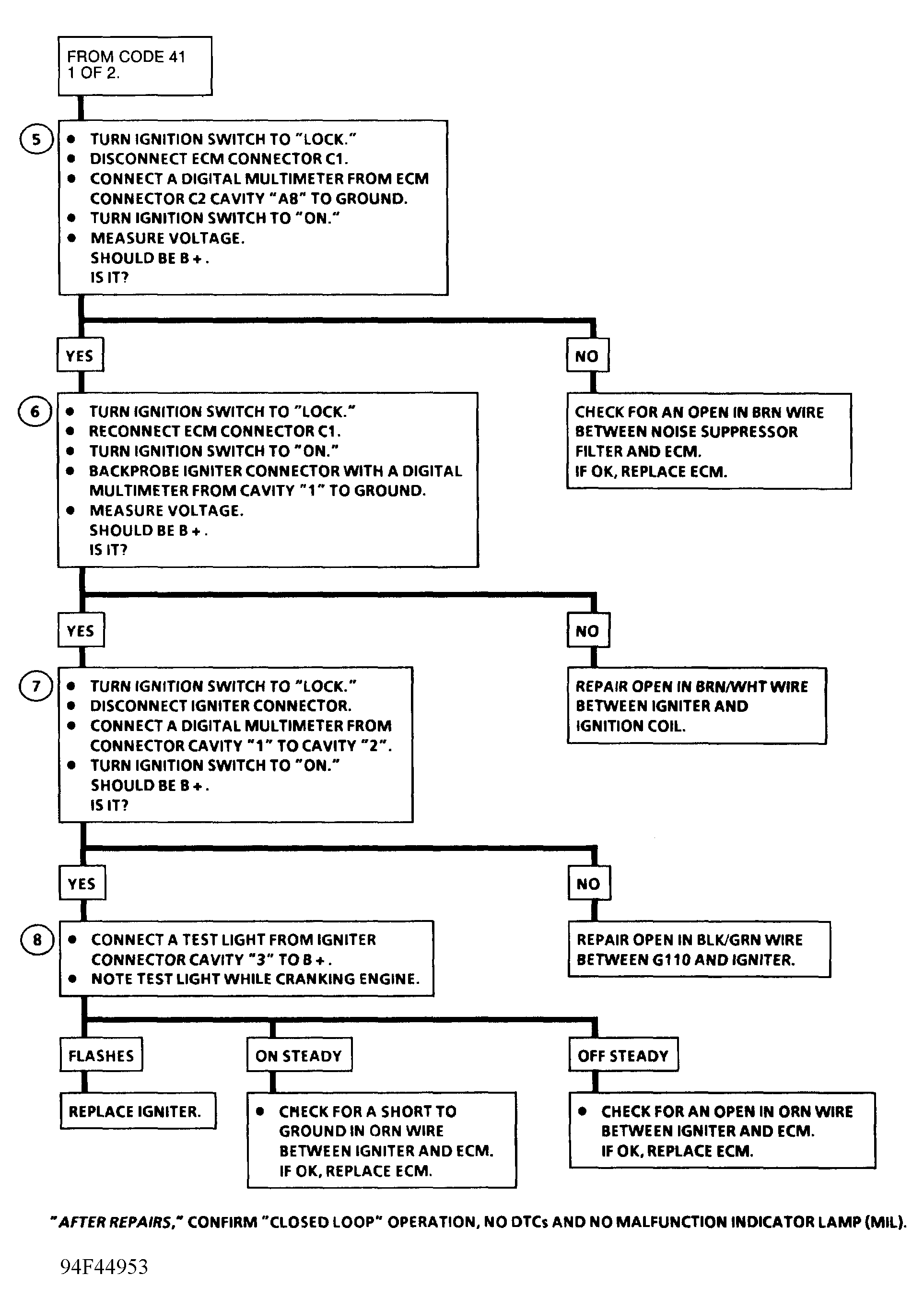

Fig 3: CODE 41 - Flow Chart (MFI Calif. & New York) (2 OF 2) No Ignition Signal
G94F44953
