Oil Pressure

With engine at normal operating temperature, oil pressure should be greater than 4.3 psi (.3 kg/cm2 ) at idle and 36-71 psi (2.5-5.0 kg/cm2 ) at 3000 RPM.

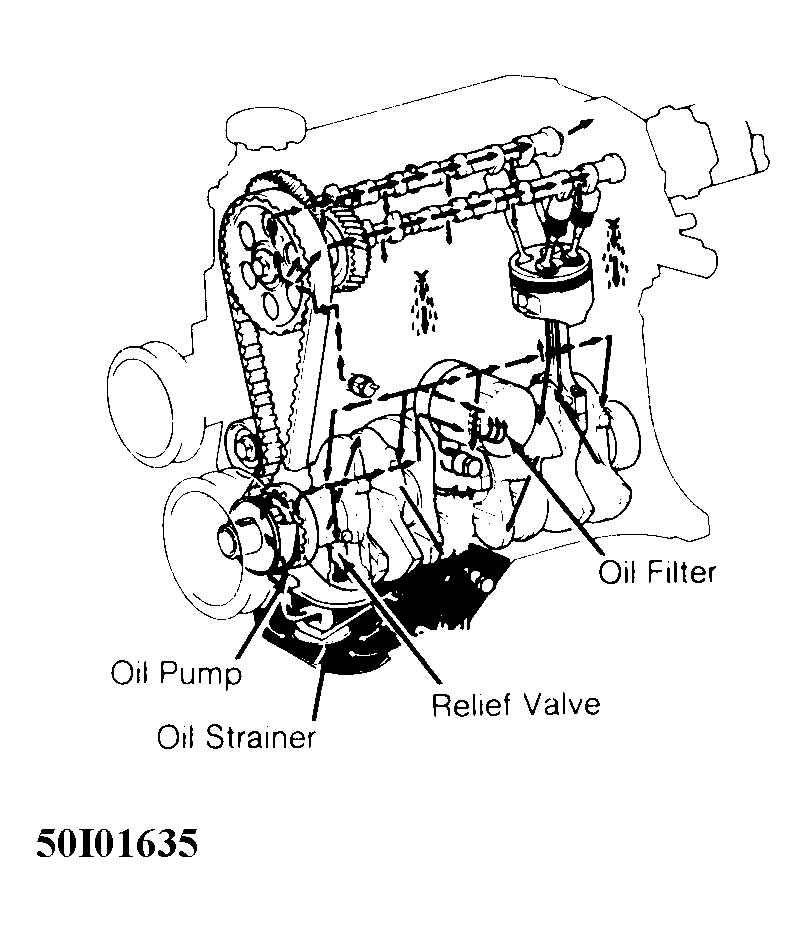

Fig 1: Cross-Sectional View Of Engine Oil System
G50I01635Courtesy of GENERAL MOTORS CORP.
