Action Taken
DERM turns on INFLATABLE RESTRAINT indicator light.
NOTE:

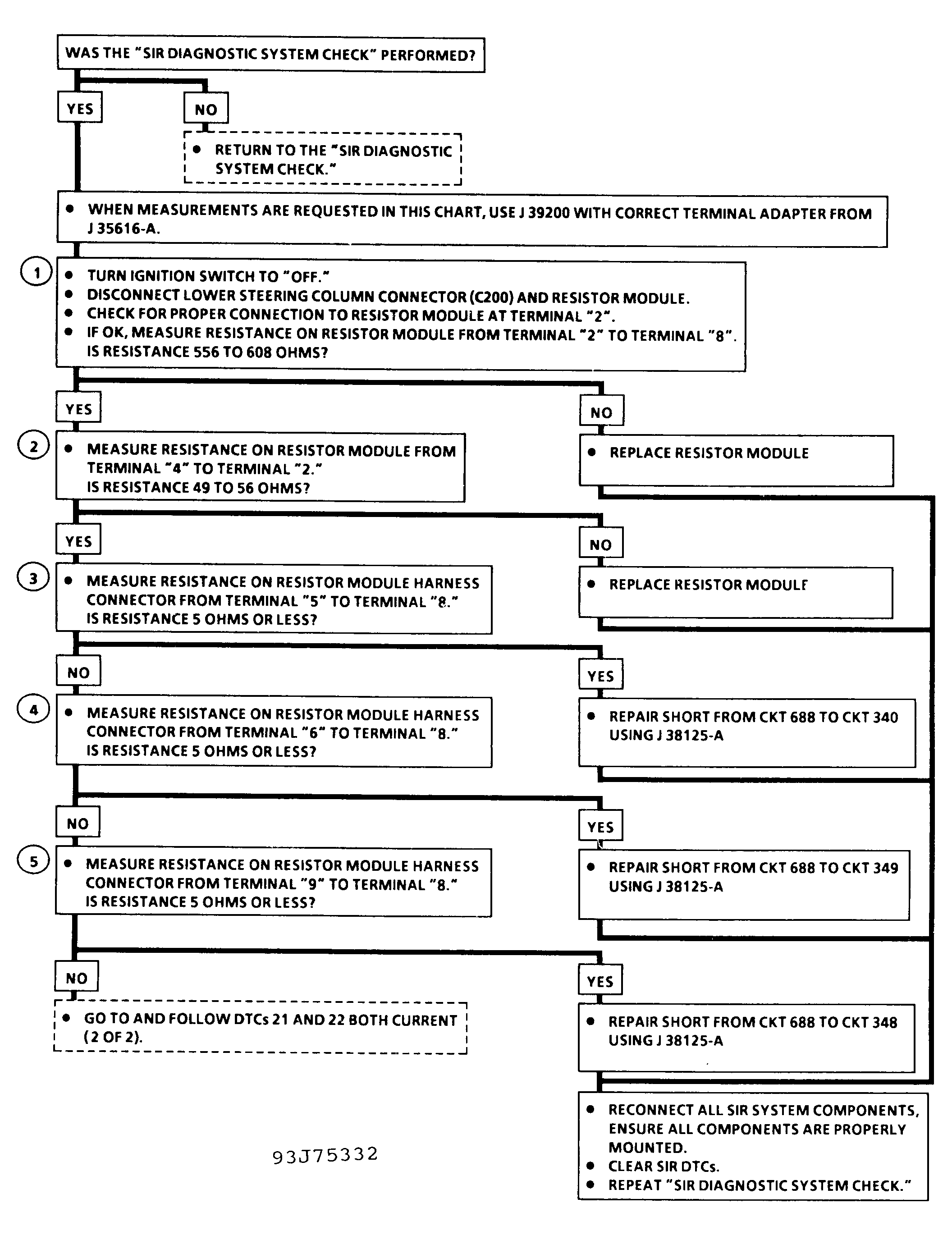

Test numbers refer to test numbers on diagnostic chart. For circuit number identification, see WIRING DIAGRAMS.
- Checks integrity of 49.9-ohm resistor, 100-ohm resistor, 430-ohm resistor, and associated circuitry in resistor module.
- Checks for open in FORCE HIGH resistor circuitry in resistor module.
- Checks for a short from FORCE LOW circuit No. 688 to circuit No. 340.
- Checks for a short from FORCE LOW circuit No. 688 to circuit No. 349.
- Checks for a short from FORCE LOW circuit No. 688 to circuit No. 348.
WARNING:
To avoid air bag deployment and injury when trouble shooting system, only use test equipment specified in diagnostic charts.
