Action Taken
DERM turns on INFLATABLE RESTRAINT indicator light.
NOTE:

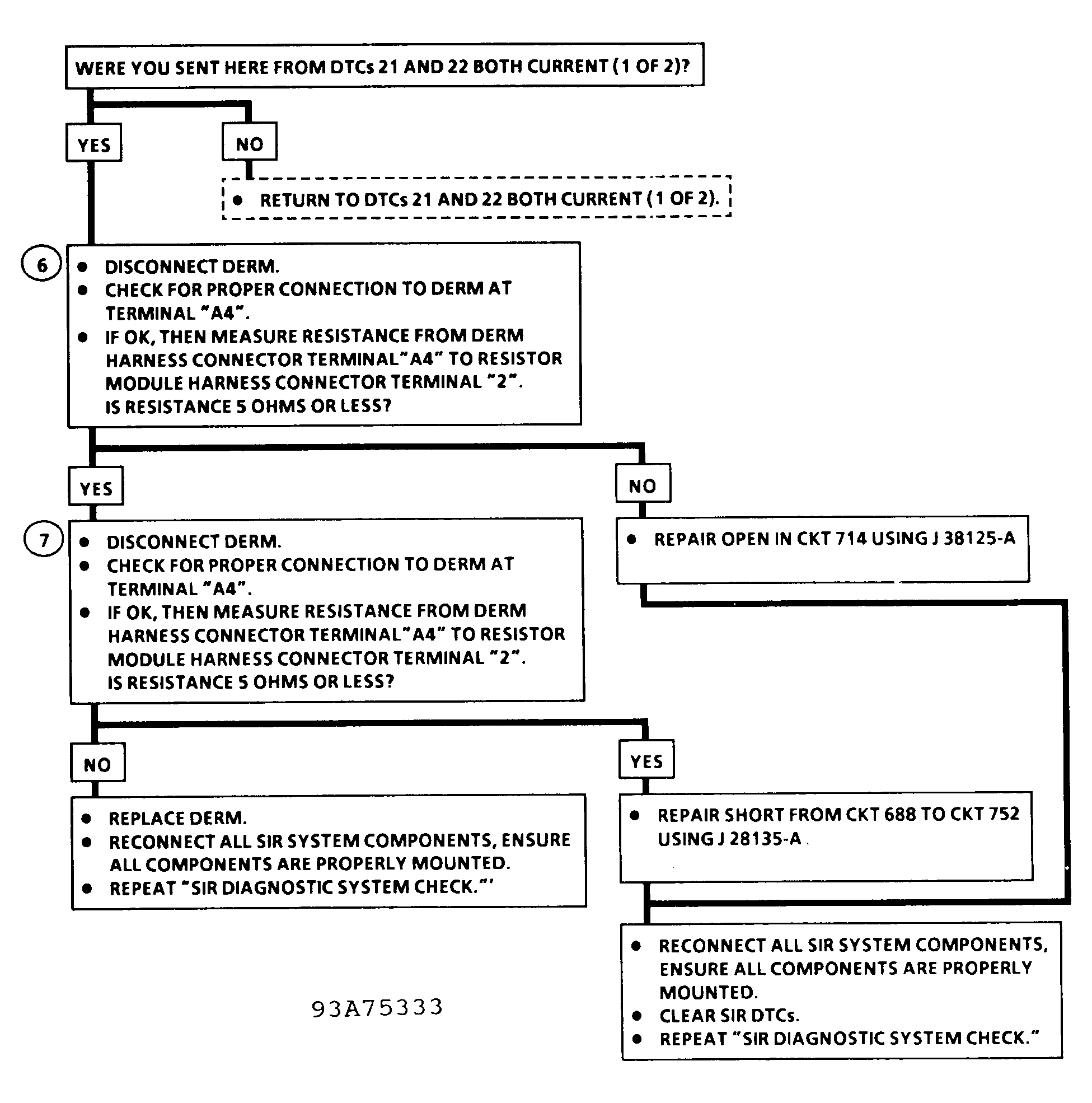

Test numbers refer to test numbers on diagnostic chart. For circuit number identification, see WIRING DIAGRAMS.
- 6) Checks for an open in FORCE HIGH circuit No. 714.
- 7) Checks whether fault is caused by a short from FORCE LOW circuit No. 688 to SENSE LOW circuit No. 752, or a faulty DERM.
WARNING:
To avoid air bag deployment and injury when trouble shooting system, only use test equipment specified in diagnostic charts.
