HITACHI 6-Cylinder Clutch Coil And Seal R & I: Installation

  1. Ensure shaft seal contact surface is free of dirt. Lubricate with refrigerant oil. Using shaft seal remover/installer, insert shaft seal.
  2. To install clutch coil and hub, reverse removal procedure. Tighten shaft nut to 14-15 ft. lbs. (19-21 N.m). Ensure clearance between pressure plate and pulley is 0.020-0.031" (.50-.80 mm).

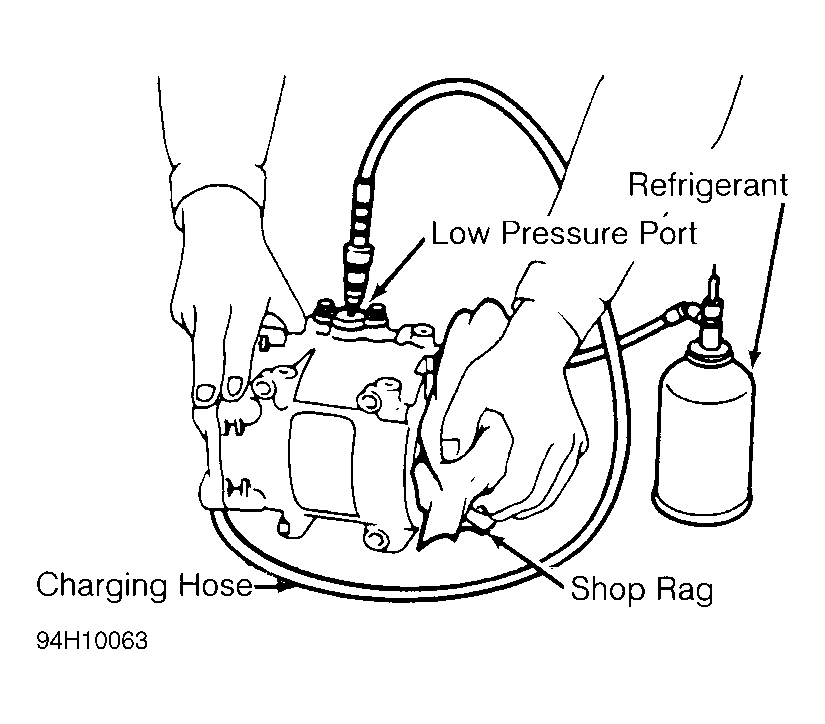

Fig 1: Removing Compressor Shaft Seal Seat (Hitachi 6-Cylinder)
G94H10063Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
