Master Cylinder: Reassembly

To reassemble, reverse disassembly procedure. See Fig 1 . Install dust seal with notch at bottom. Bench-bleed master cylinder before installing in vehicle. Bleed entire brake system after installation. See BLEEDING BRAKE SYSTEM  .

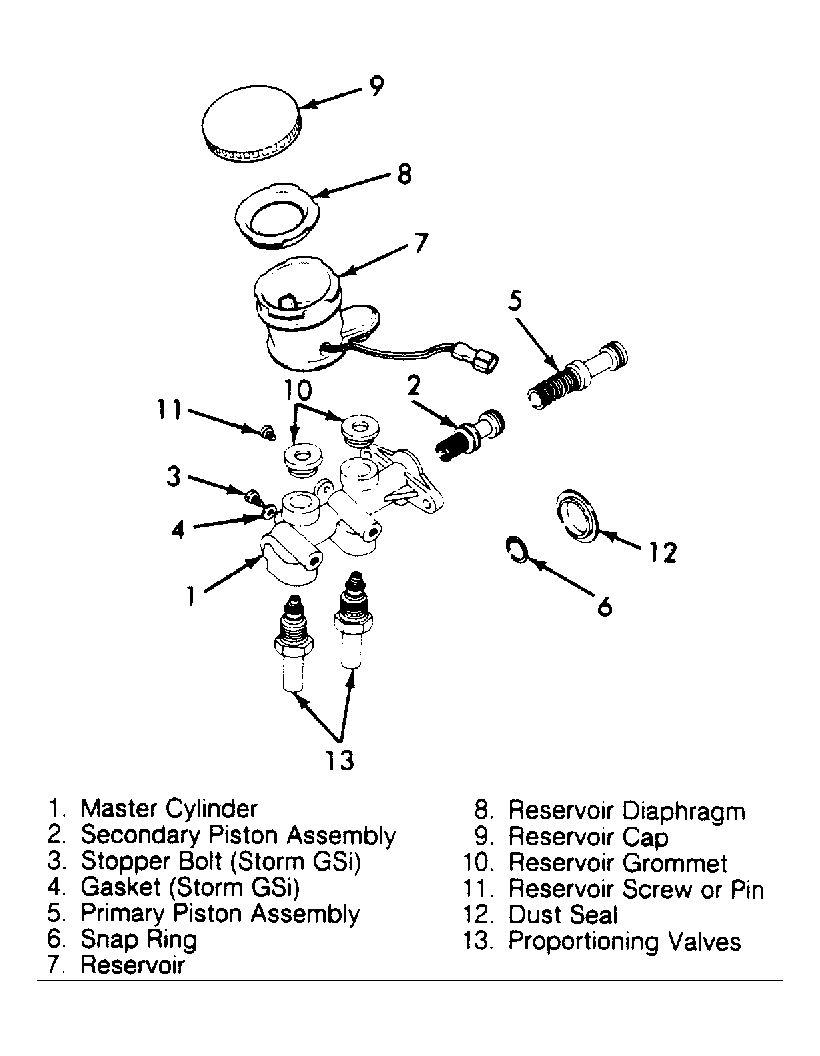

Fig 1: Exploded View Of Master Cylinder
G91F01988Courtesy of GENERAL MOTORS CORP.
