Park/Neutral Position Switch Component Test

Disconnect harness connector at Park/Neutral Position (PNP) switch. Switch is located on side of transmission. Using ohmmeter, check for continuity between specified terminals in accordance with shift lever position. See Fig 1-Fig 3 . Replace PNP switch if defective.

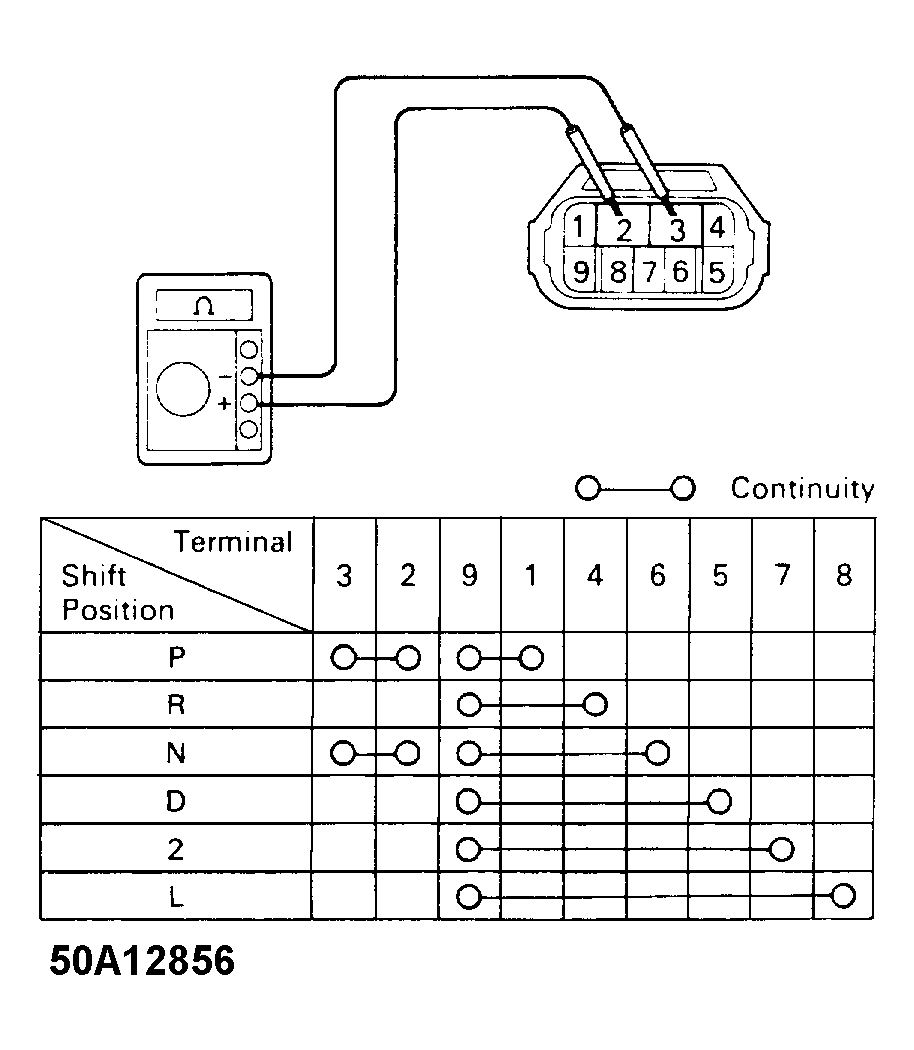

Fig 1: Testing Park/Neutral Position Switch (1993 Celica, MR2 & Paseo)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

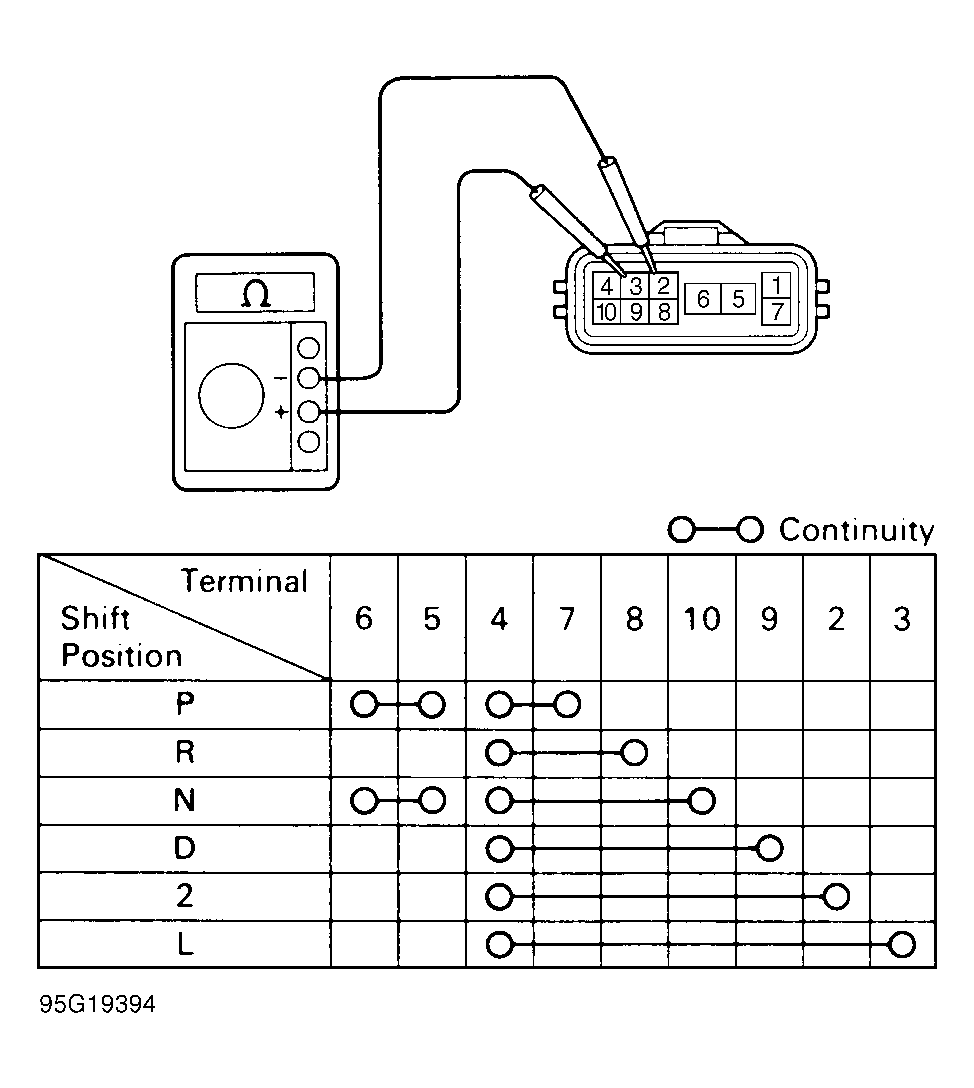

Fig 2: Testing Park/Neutral Position Switch (1994 Celica & Prizm)

Fig 3: Testing Park/Neutral Position Switch (Corolla)
