Disassembly (A-245E & A-246E)

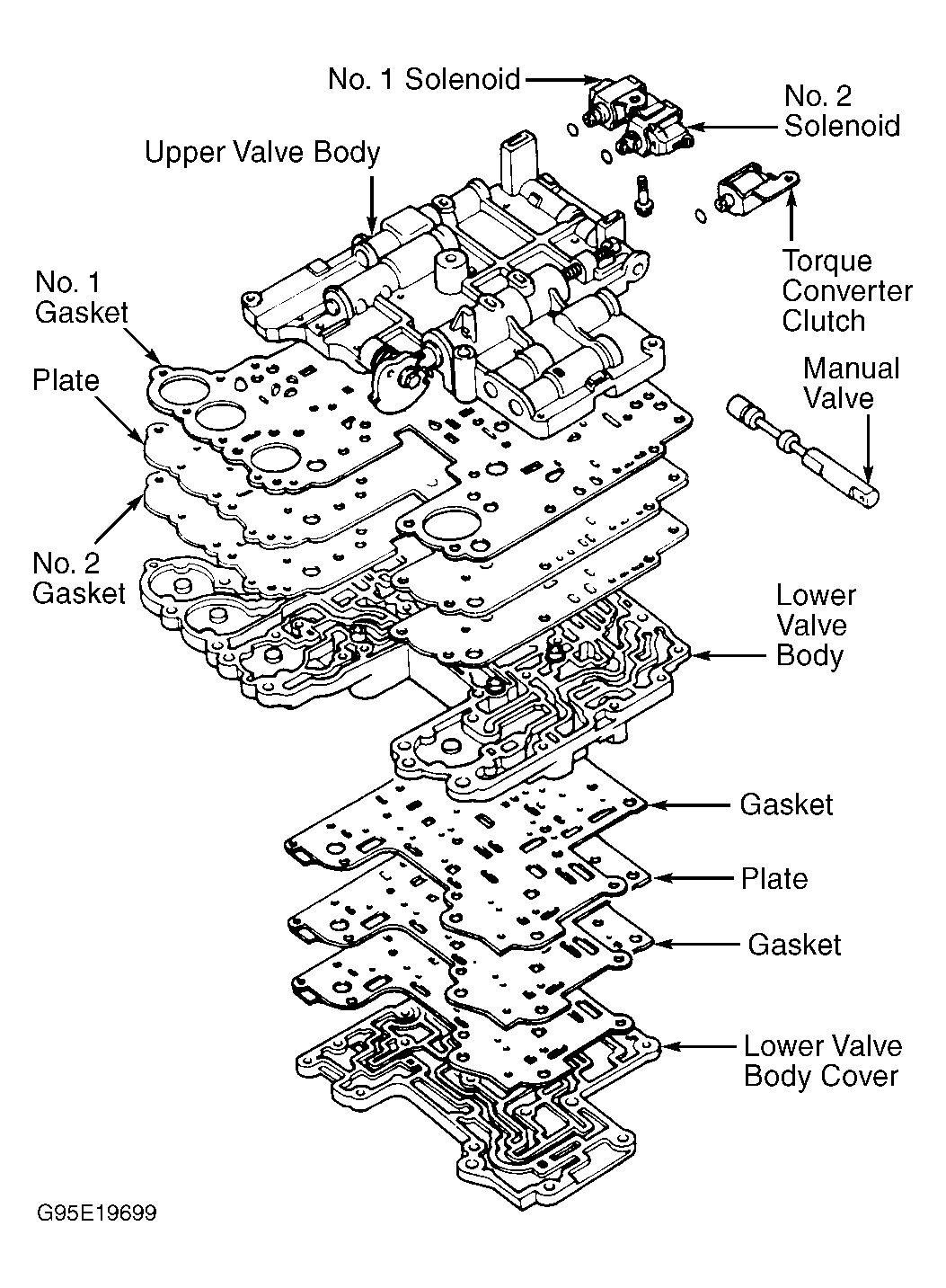

Remove throttle cam. Remove solenoids. Remove pressure relief valve. Remove 10 bolts and lower valve body cover. See Figure. Remove strainer, gaskets and plate. Remove 8 bolts from upper valve body. See Figure. Remove 21 bolts from lower valve body. See Fig 2. Hold plate against lower valve body and carefully remove lower valve body. DO NOT lose check balls. Note location of check balls, retainers, pins and plugs in valve body. Remove plate and gasket. See Fig 3.
