A-245E & A-246E Models

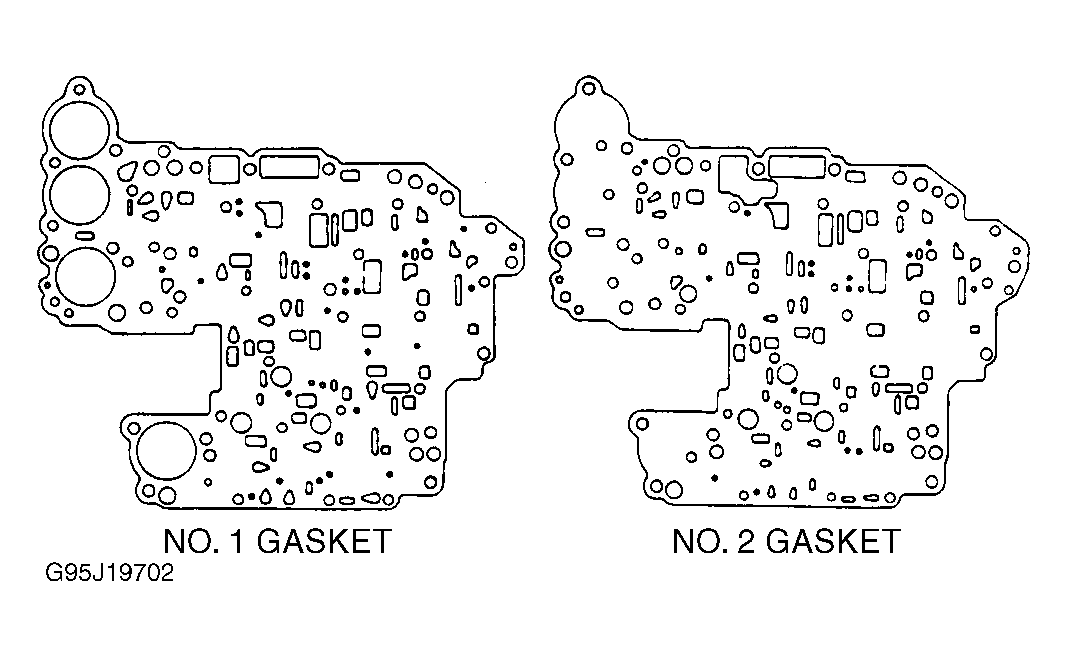

- Coat all components with ATF. To reassemble, reverse disassembly procedure. Position NEW No. 2 gasket, plate and NEW No. 1 gasket on lower valve body. Ensure gaskets are installed in correct locations. See Fig 1.
- Place lower valve body with plate and gaskets on upper valve body. DO NOT
let components separate. Align each bolt hole in valve bodies with gaskets and plate. Turn assembly over and install lower valve body cover.

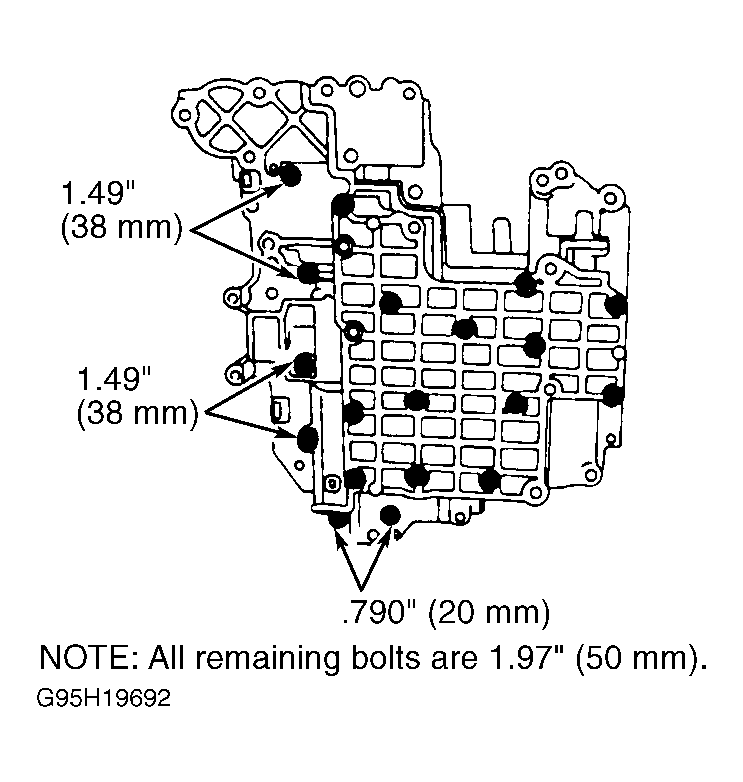

- Install and finger tighten bolts in lower valve body to secure upper valve body. See Figure. Tighten valve body bolts to specifications. See TORQUE SPECIFICATIONS . Install NEW "O" rings on solenoids. Lubricate "O" rings with ATF and install solenoids. Tighten bolts to 56 INCH lbs. (6.5 N.m).
