Park/Neutral Position Switch R & I: Installation
- Install switch on control shaft. Loosely install neutral start switch retaining bolts. Install seal and lock washer. Install lock nut and tighten to specification. See TORQUE SPECIFICATIONS . Bend tabs on lock washer over against lock nut.

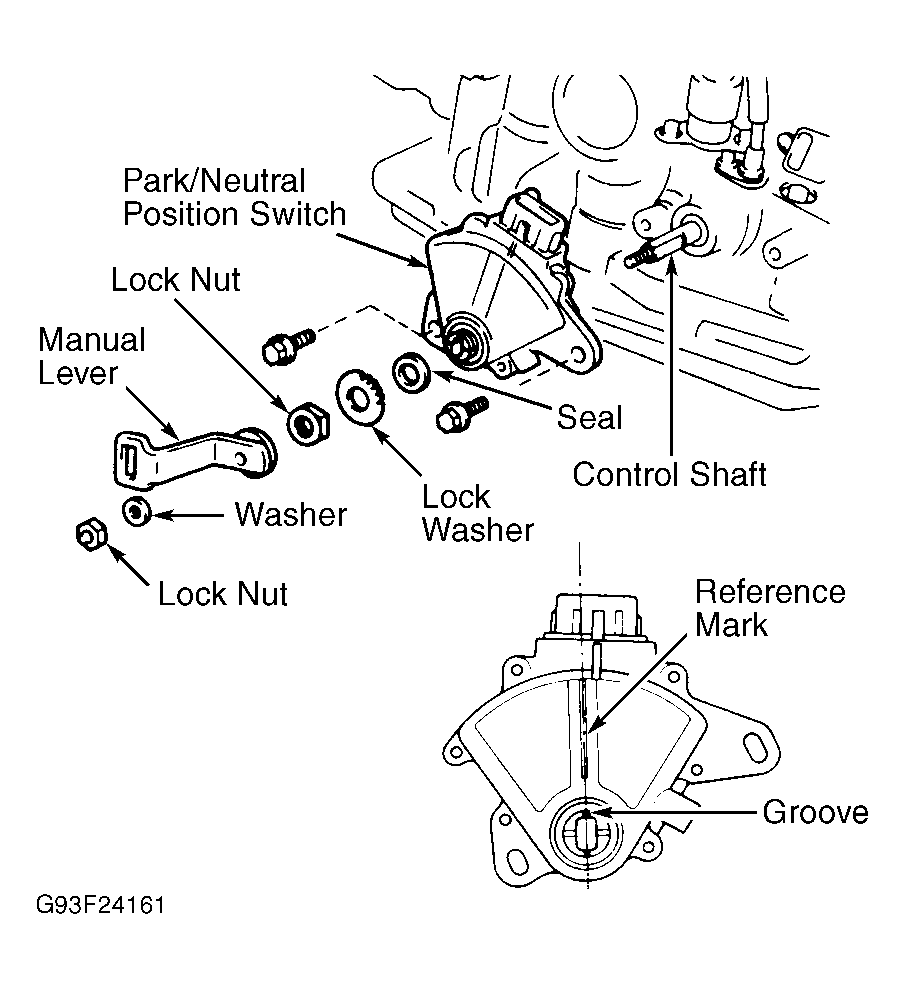

- Ensure parking brake is applied. Temporarily install manual lever on control shaft. Place shift lever in Neutral. Remove manual lever. Rotate switch and align reference mark on PNP switch with groove. See Fig 1 and Fig 2
.
- Hold neutral switch in this position. Tighten retaining bolts to specification. To install remaining components, reverse removal procedure.
