No. 1 & No. 2 Solenoids

The ECU controls transmission shifting by delivering an output signal to operate proper solenoid. Solenoids are operated in accordance with shift lever range. See Fig 1. If a solenoid malfunctions, designated gear may result. See Fig 1. Solenoids are located on transmission. See Figure-Figure .

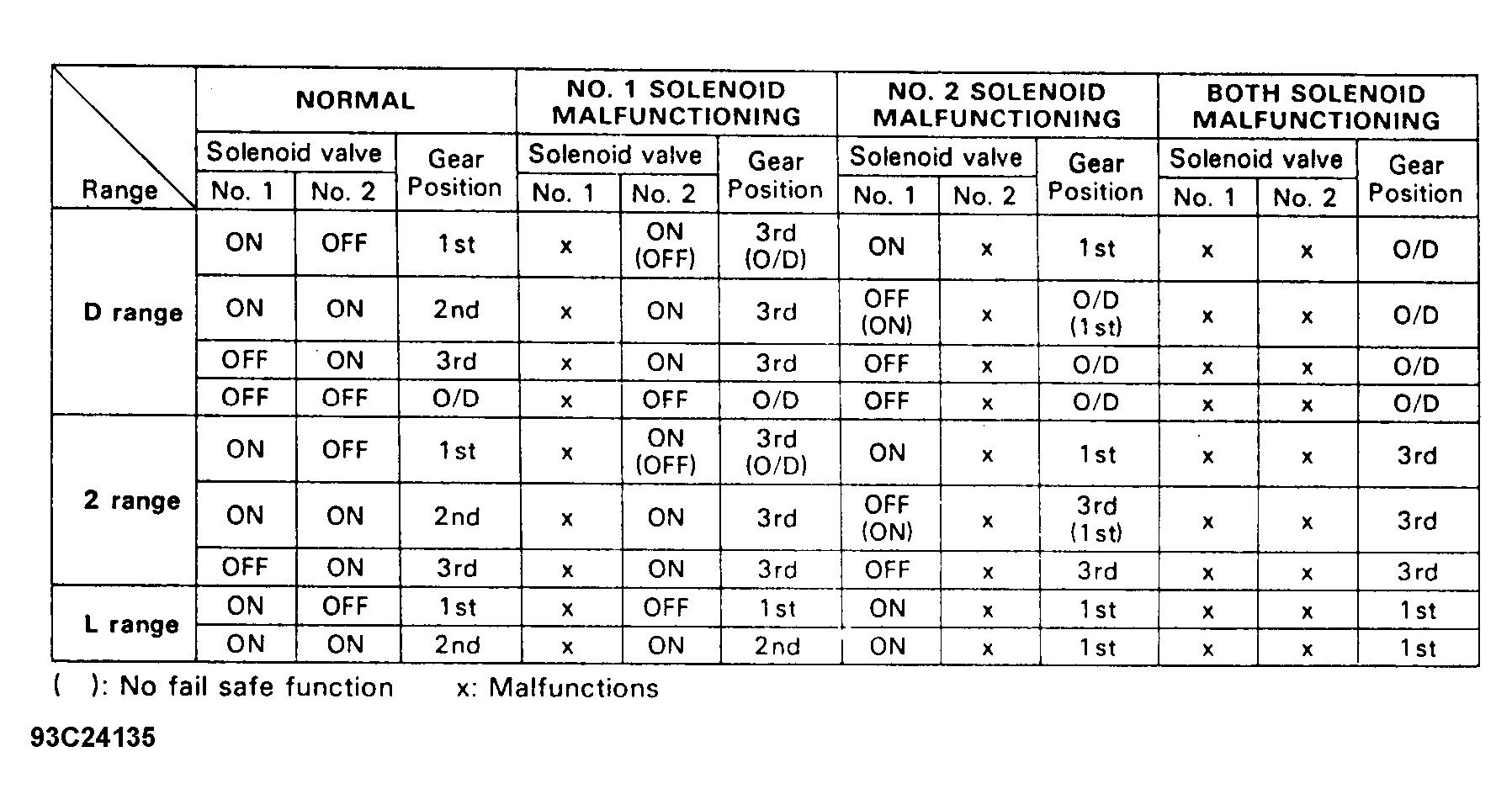

Fig 1: Determining No. 1 & No. 2 Solenoid Operation
G93C24135Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
