2ND Coast Brake: Disassembly

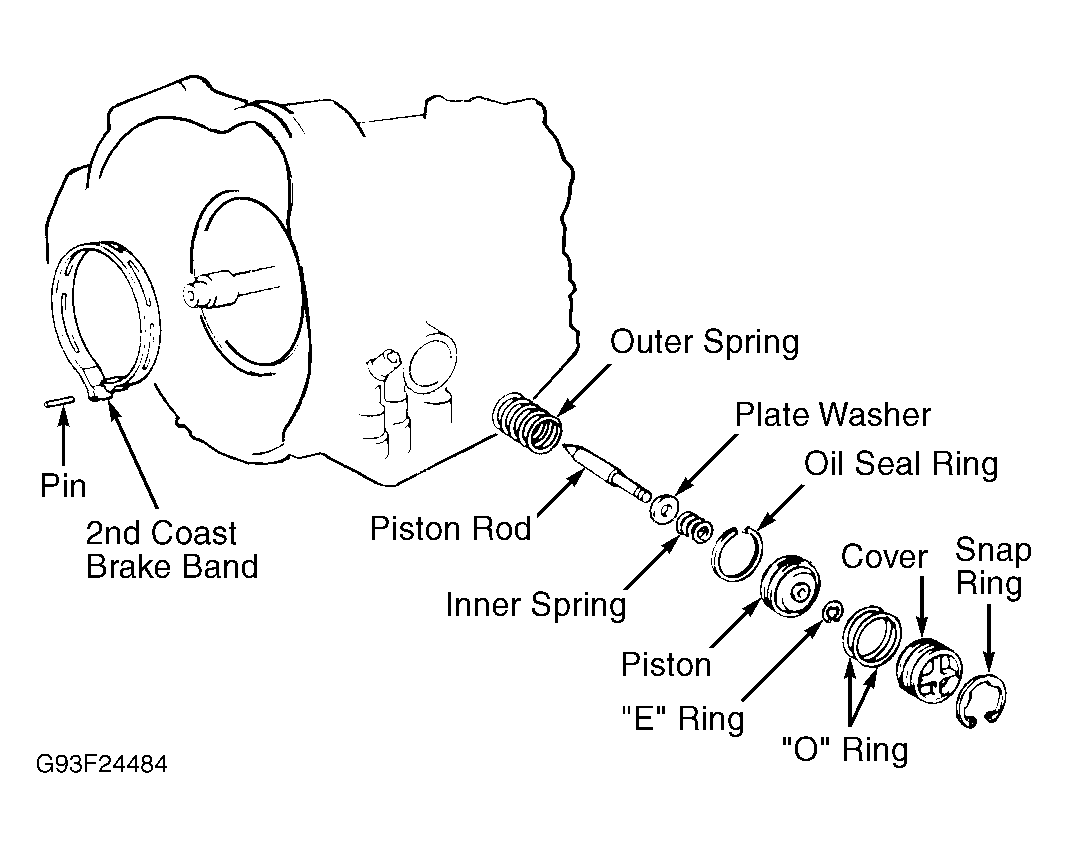

Remove oil seal ring from piston. Remove "E" ring from piston with needle-nose pliers. Remove spring, washer and piston rod. See Figure.
