Wheel Bearing: Removal

  1. Remove steering knuckle and hub assembly from vehicle. See HUB & KNUCKLE ASSEMBLY  . Place steering knuckle in vise. Remove dust deflector. See Fig 1 .

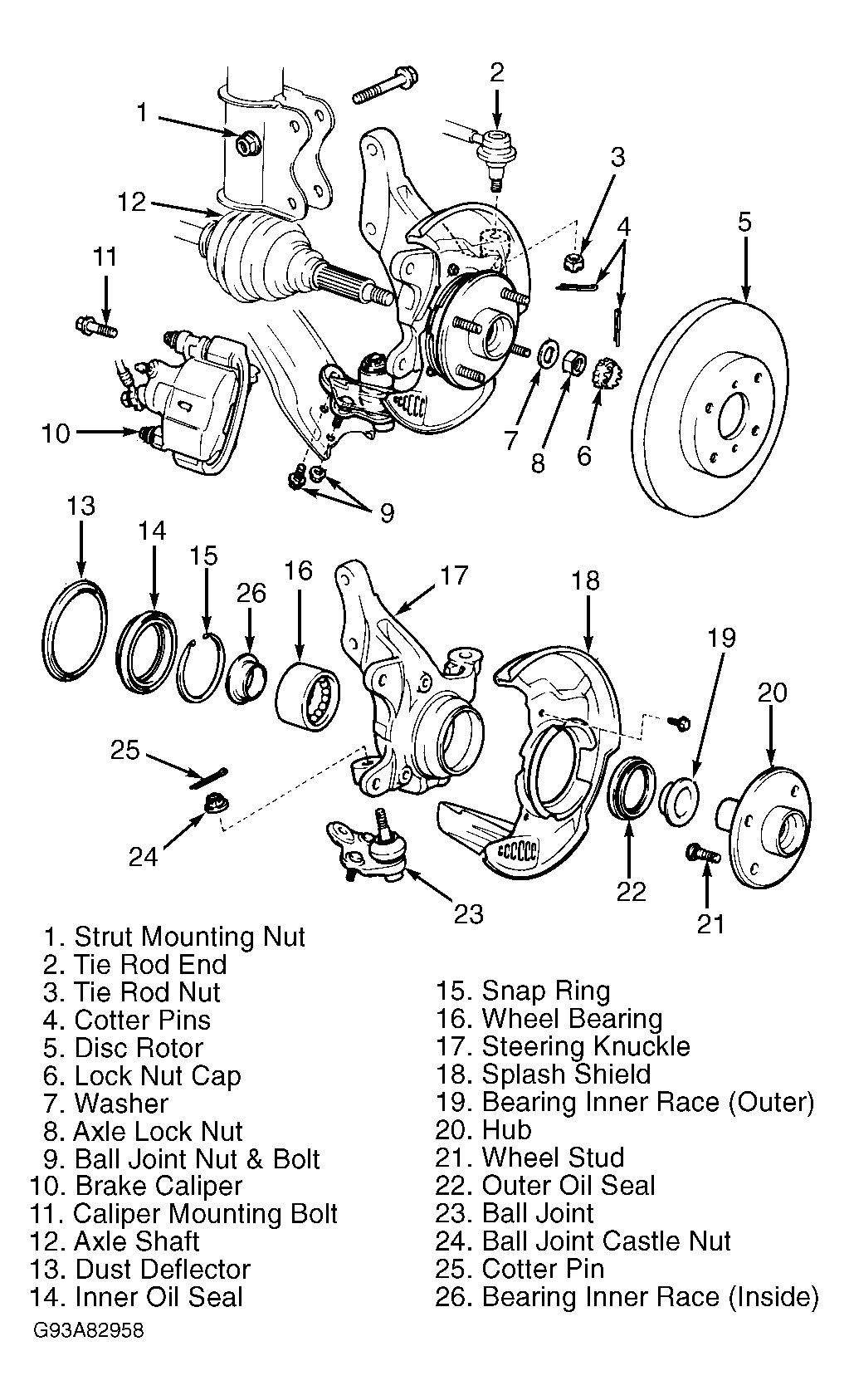

    Fig 1: Exploded View Of Front Hub & Knuckle Assembly
    G93A82958Courtesy of GENERAL MOTORS CORP.
  2. Remove ball joint from steering knuckle (if not done already). Using Seal Puller (J-26941 ) and slide hammer, pull inner oil seal out of steering knuckle. Remove snap ring from steering knuckle.

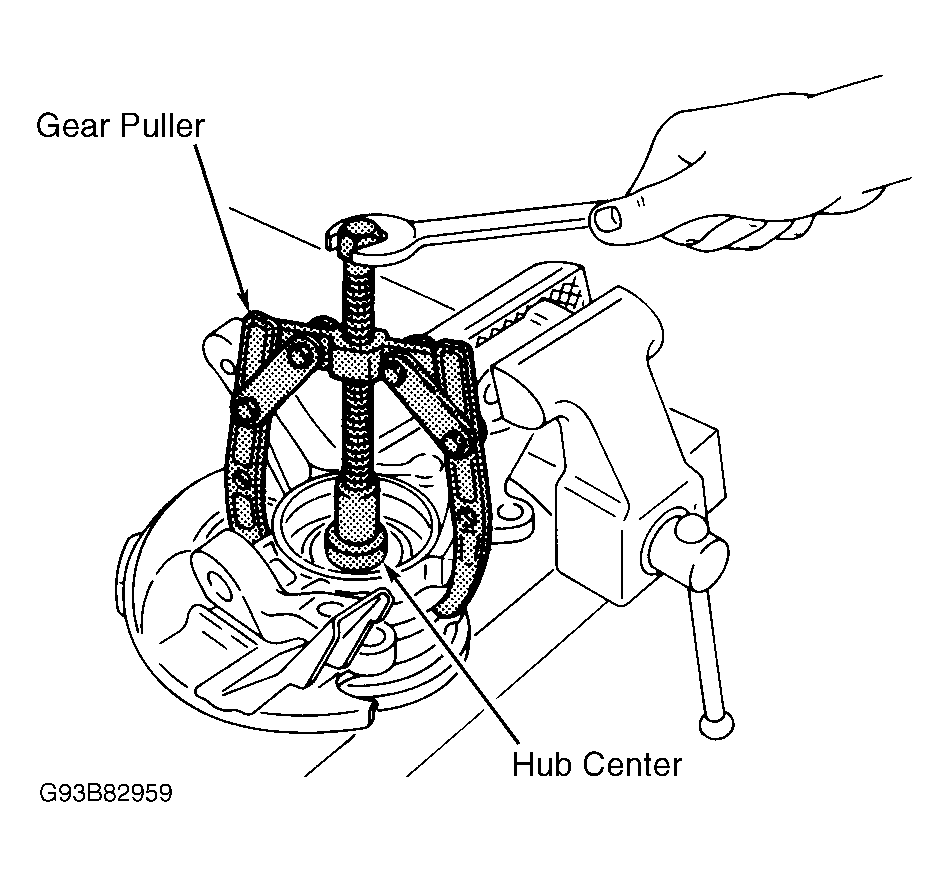

  3. Remove bolts holding disc brake splash shield to steering knuckle. Using gear puller, push axle hub from steering knuckle. See Figure . Remove disc brake dust cover and pull outer oil seal from knuckle.
  4. Using a press and Bearing Separator (J-22912-01 ), press inside bearing race from axle hub. Using drift and Bearing Installer (J-35399 ), press hub bearing from knuckle.
