Action Taken

Center sensor assembly will illuminate AIR BAG indicator and will open safety circuit preventing SRS operation.

WARNING: To avoid air bag deployment and injury when trouble shooting system, only use test equipment specified in diagnostic charts.

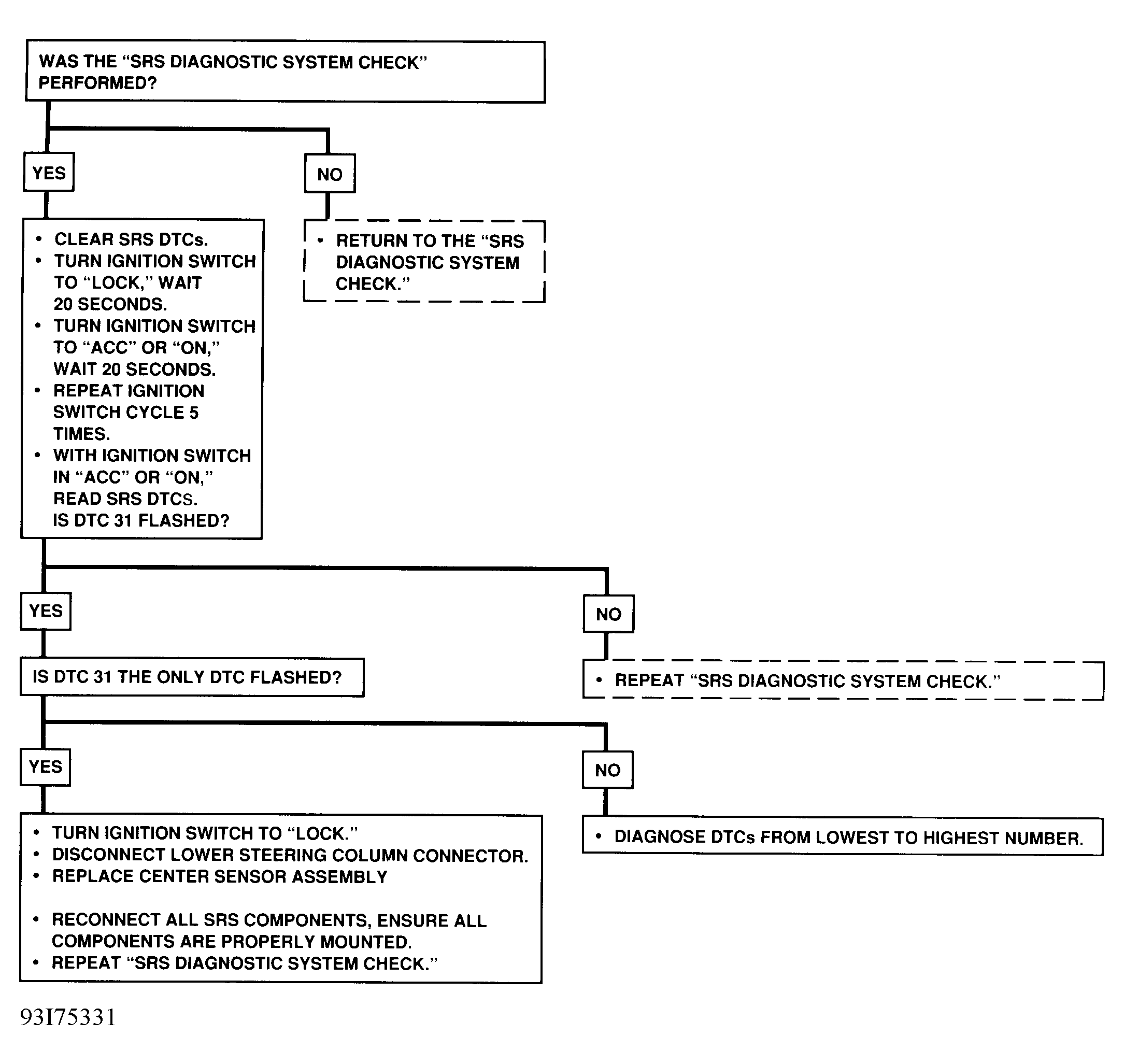

Fig 1: Flowchart, DTC 31 - Center Sensor Assembly Malfunction
G93I75331Courtesy of GENERAL MOTORS CORP.
