DTC 22, Air Bag Indicator Circuit Fault (5 Of 5)

NOTE: Test numbers refer to test numbers on diagnostic chart. For circuit number identification, see WIRING DIAGRAMS.

1. 13)  Checks for a short to ground in LA circuit.
2. 14)  Checks for a faulty junction block No. 1.
3. 15)  Checks for a faulty center sensor assembly.

WARNING: To avoid air bag deployment and injury when trouble shooting system, only use test equipment specified in diagnostic charts.

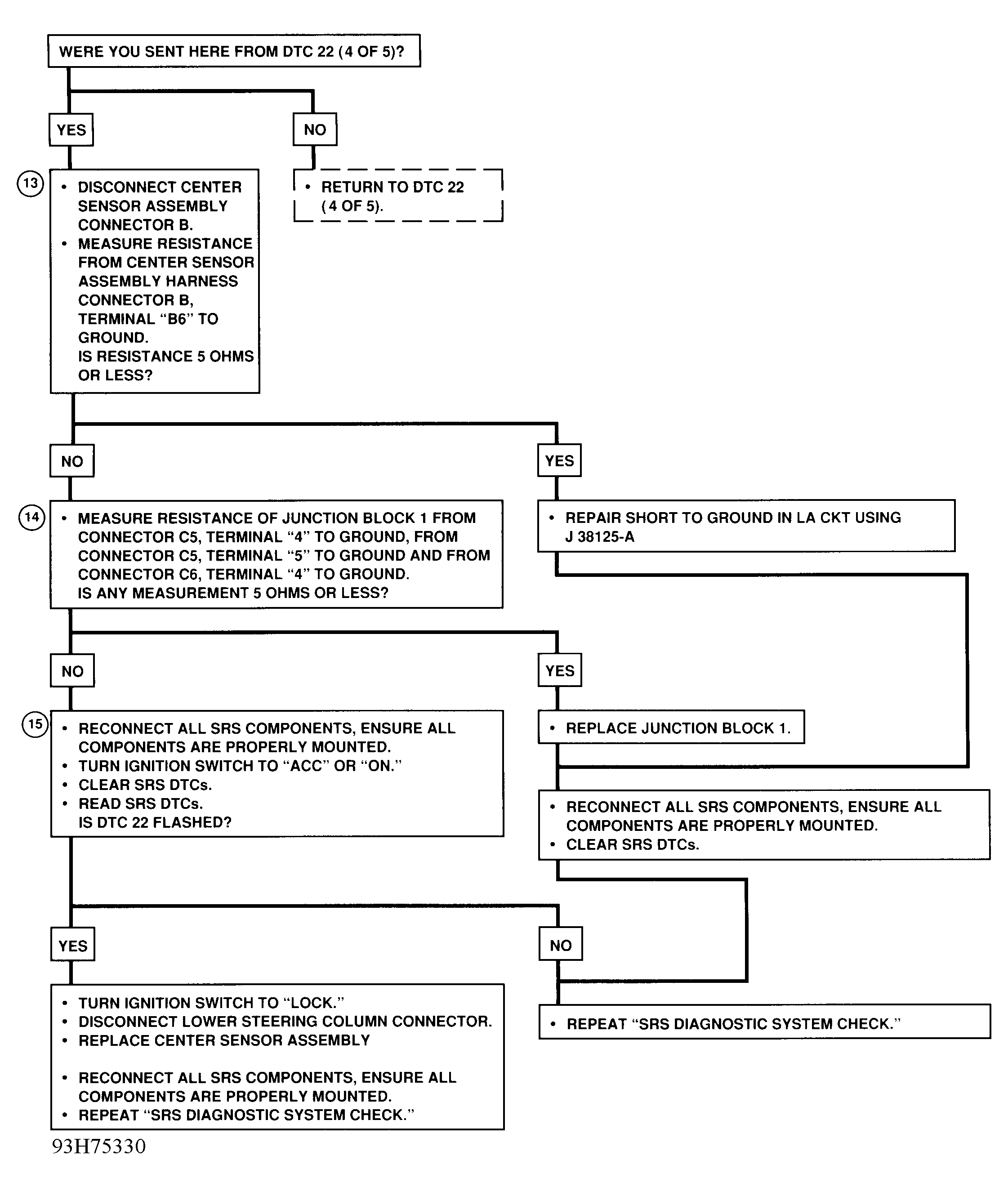

Fig 1: Flowchart, DTC 22 - Air Bag Indic. Circuit Fault (5 of 5)

Courtesy of GENERAL MOTORS CORP.
