Action Taken
Center sensor assembly will attempt to illuminate AIR BAG indicator and will open safety circuit preventing SRS operation.
NOTE:

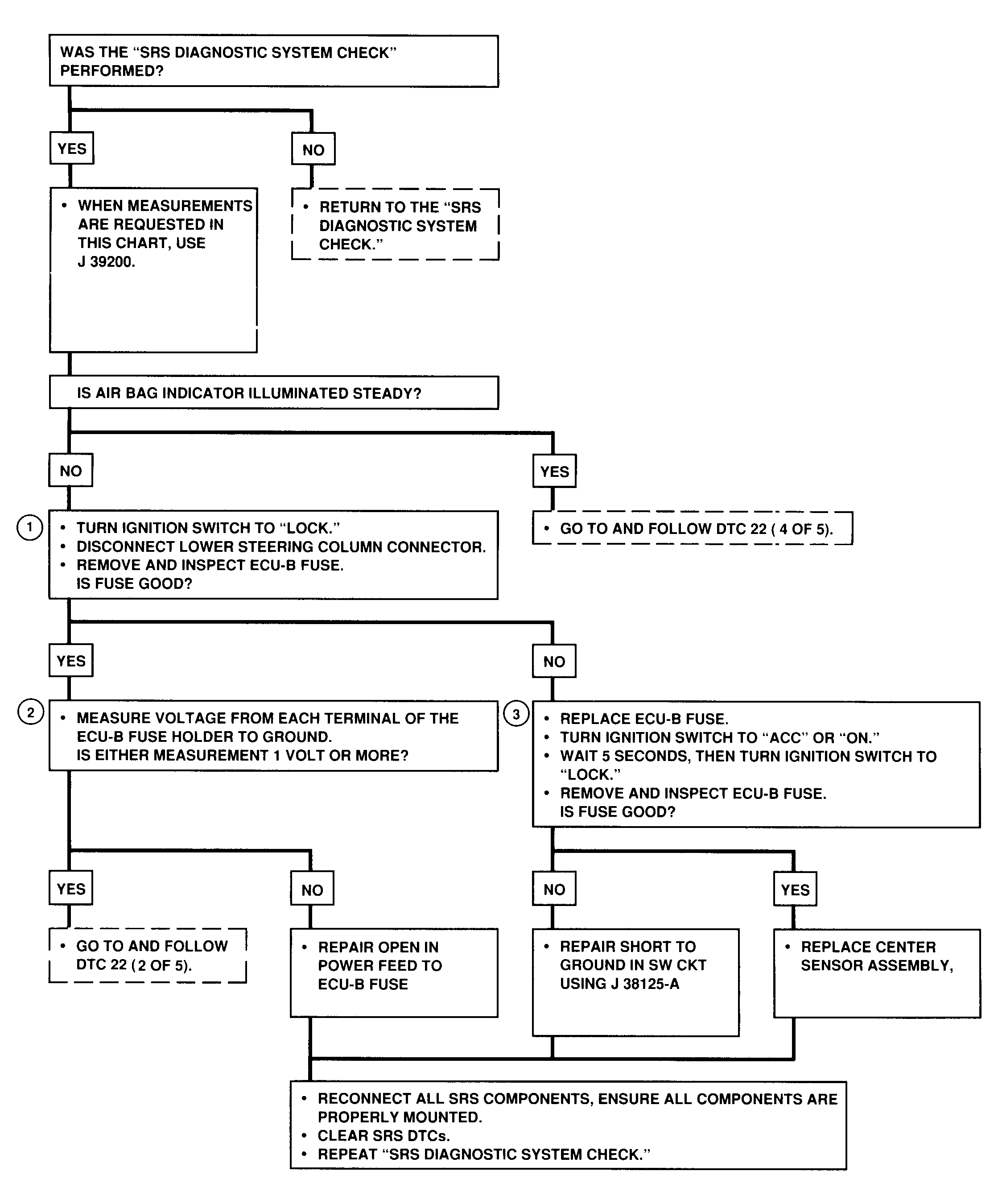

Test numbers refer to test numbers on diagnostic chart. For circuit number identification, see WIRING DIAGRAMS.
- Checks for a good ECU-B fuse.
- Checks for an open in power feed to ECU-B fuse.
- Checks whether fault is caused by short to ground in SW circuit or a faulty center sensor assembly.
WARNING:
To avoid air bag deployment and injury when trouble shooting system, only use test equipment specified in diagnostic charts.
