Action Taken

Center sensor assembly will illuminate AIR BAG indicator and open safety circuit, disabling SRS.

NOTE: Test numbers refer to test numbers on diagnostic chart. For circuit number identification, see WIRING DIAGRAMS.
  1. Checks integrity of right forward sensor circuit.
  2. Checks integrity of left forward sensor circuit.
WARNING: To avoid air bag deployment and injury when trouble shooting system, only use test equipment specified in diagnostic charts.

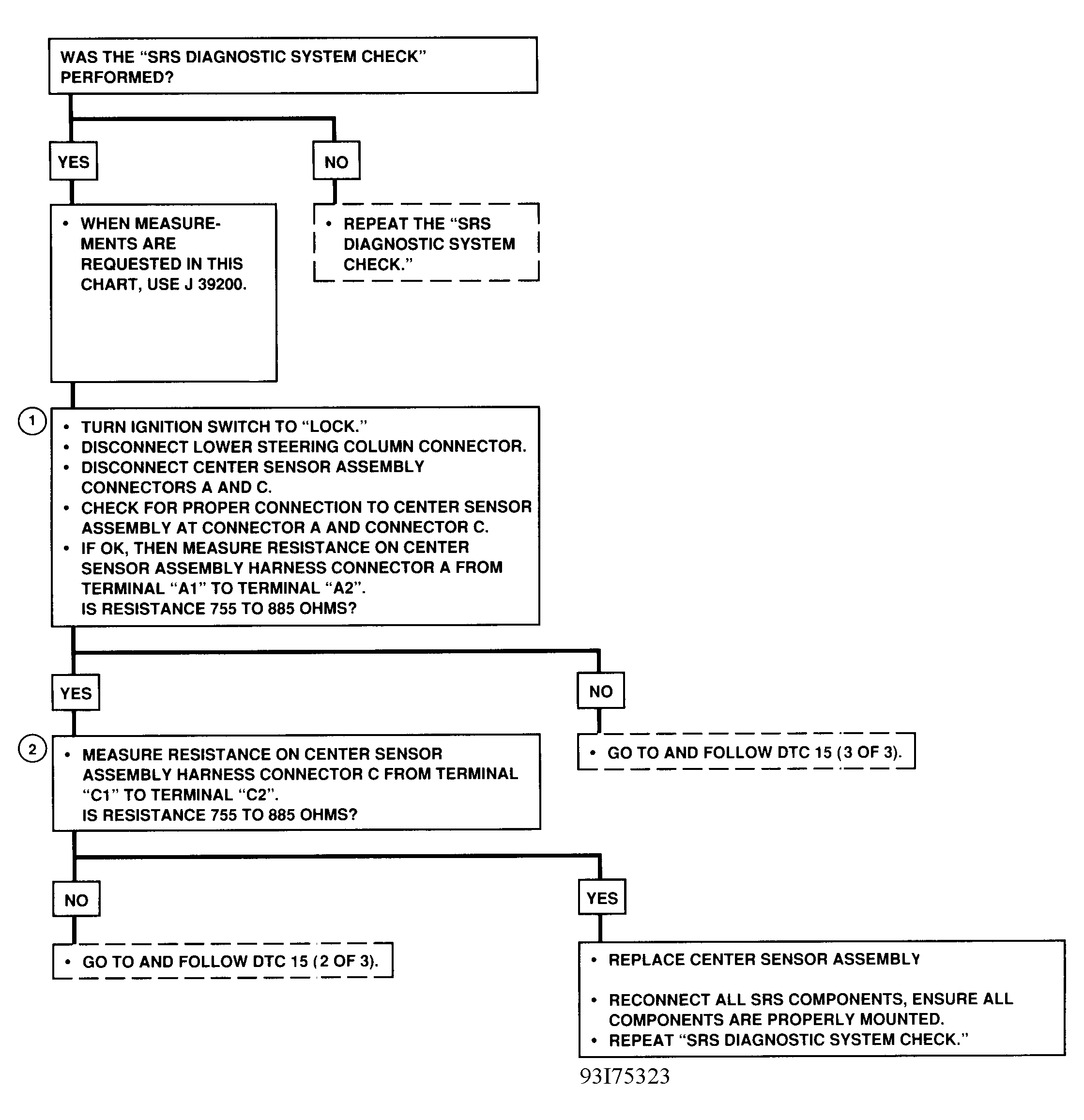

Fig 1: Flowchart, DTC 15 - Open In Forward Sensor Circuit (1 of 3)
G93I75323Courtesy of GENERAL MOTORS CORP.
