DTC 11, Short To Ground In Steering Column Circuit (3 Of 5)

NOTE: Test numbers refer to test numbers on diagnostic chart. For circuit number identification, see WIRING DIAGRAMS.

1. 6) - 8)  Checks for faulty left forward sensor.
2. 9)  Checks for short to ground in SR+ circuit.

WARNING: To avoid air bag deployment and injury when trouble shooting system, only use test equipment specified in diagnostic charts.

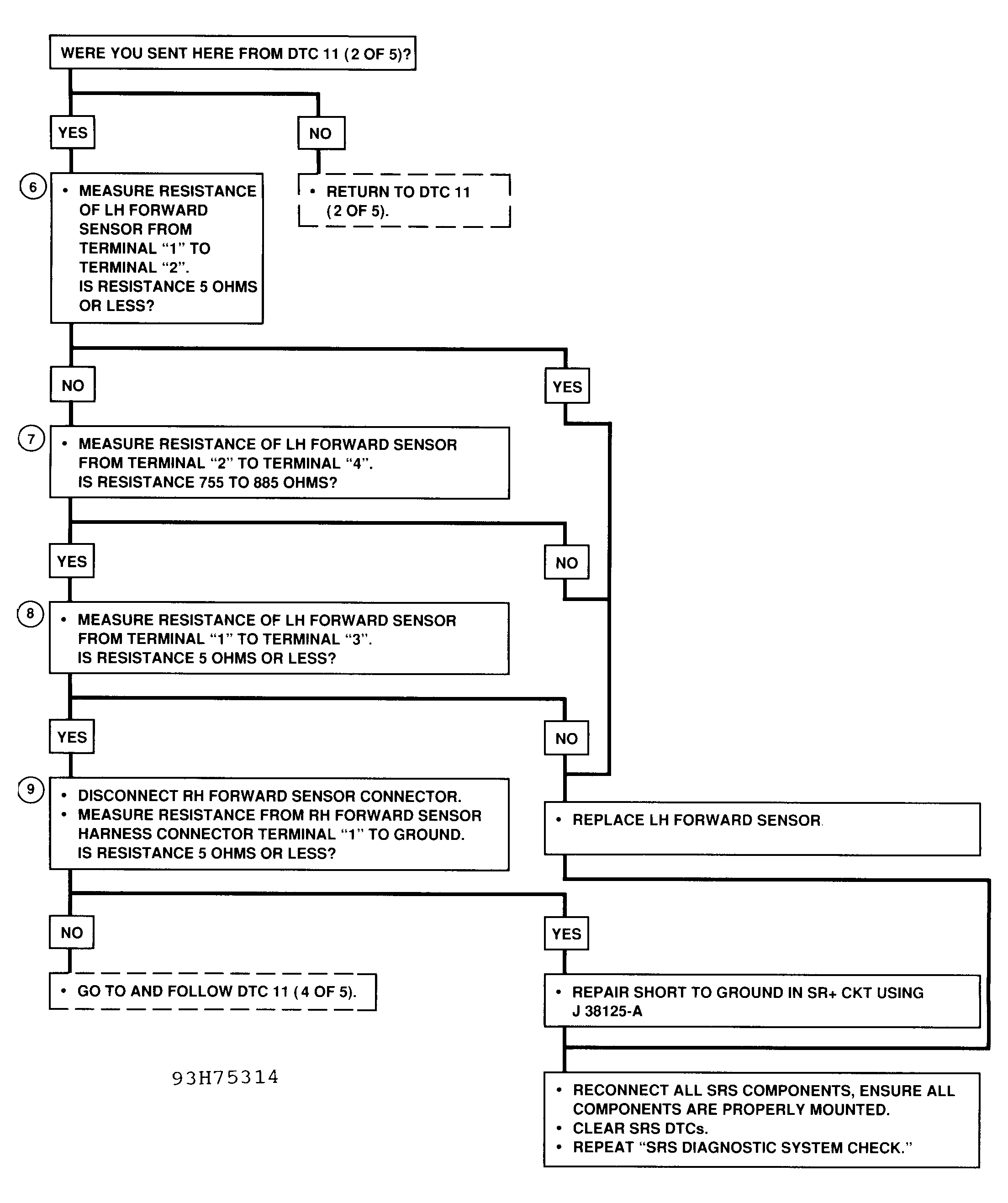

Fig 1: Flowchart, DTC 11 - Short To Ground In Steer. Col. Cir. (3 of 5)

Courtesy of GENERAL MOTORS CORP.
