Chart C, Air Bag Indicator On Steady With Ignition Switch In Acc Or On & Flash Code Diagnosis Enabled (2 Of 2)

NOTE: Test numbers refer to test numbers on diagnostic chart. For circuit number identification, see WIRING DIAGRAMS.

1. 4)  Checks whether fault is caused by an open in circuit E3 or an open in circuits TC1 and TC2.

WARNING: To avoid air bag deployment and injury when trouble shooting system, only use test equipment specified in diagnostic charts.

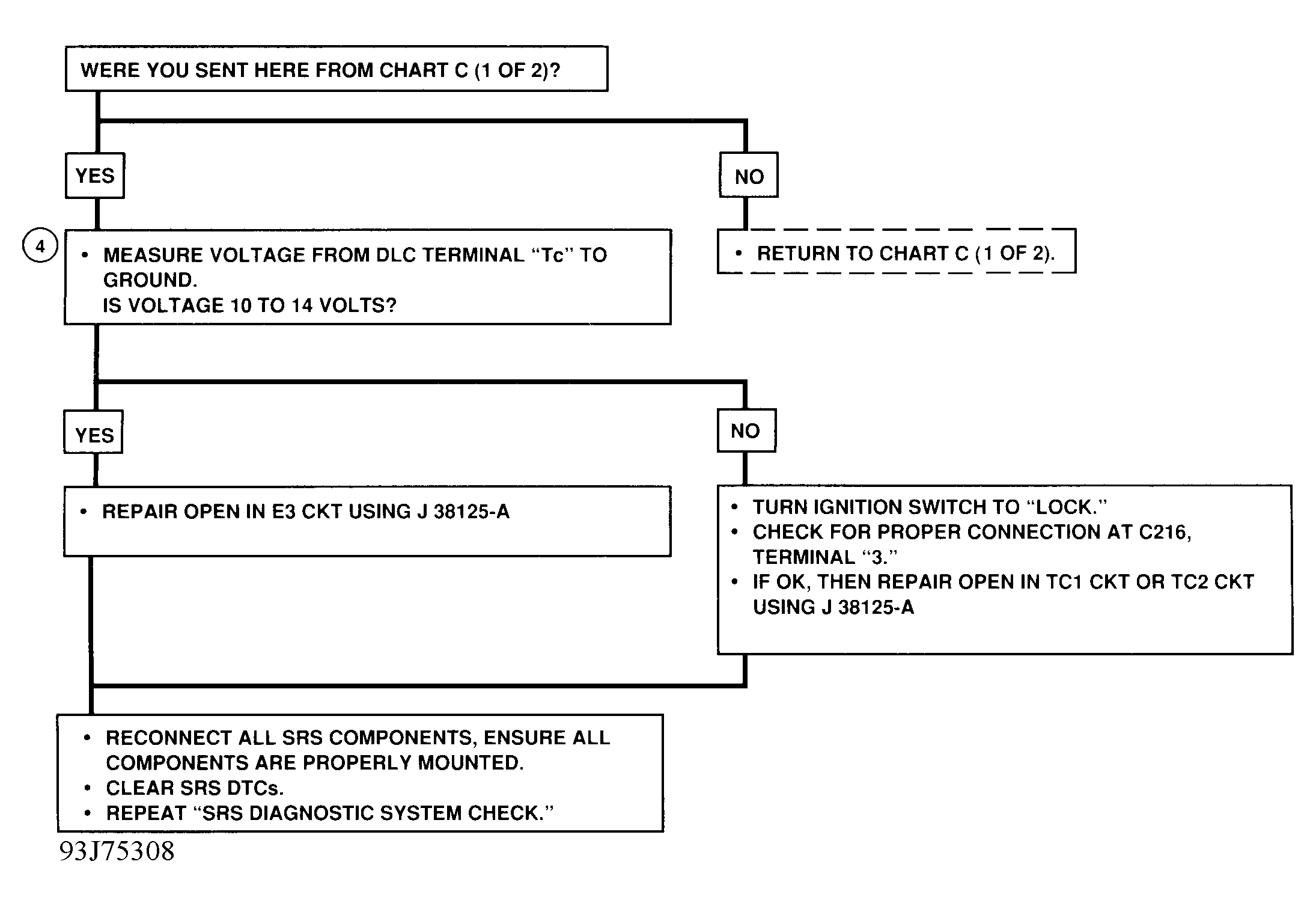

Fig 1: Flowchart C, Air Bag Indic. On Steady W/ Ign. Switch In ACC or On & Flash Code Diagnosis Enabled (2 of 2)

Courtesy of GENERAL MOTORS CORP.
