Chart C, Air Bag Indicator On Steady With Ignition Switch In Acc Or On & Flash Code Diagnosis Enabled (1 Of 2): Description
When ignition switch is first turned to ACC or ON, system voltage is applied form ECU-B fuse to AIR BAG indicator.
NOTE:

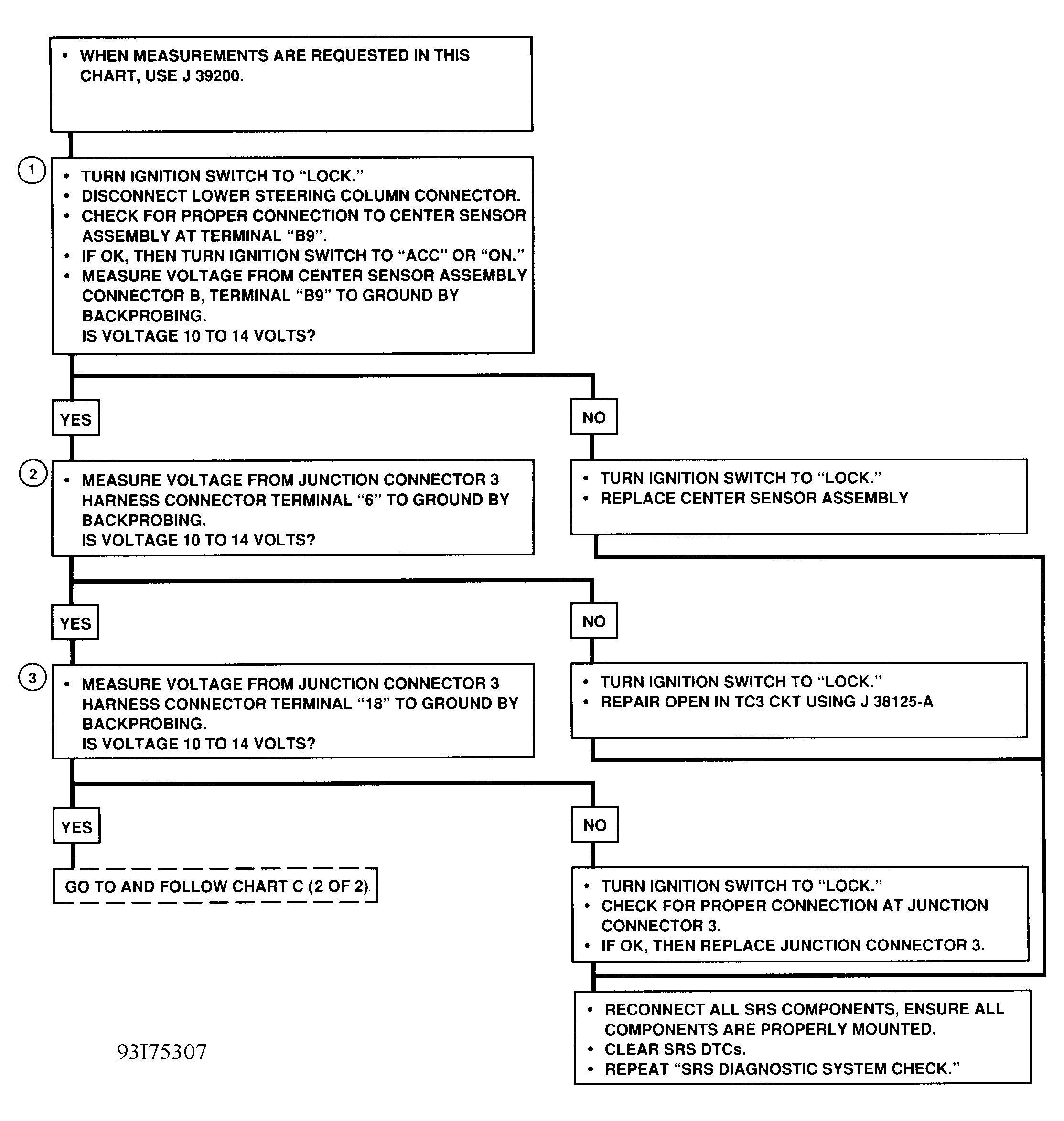

Test numbers refer to test numbers on diagnostic chart. For circuit number identification, see WIRING DIAGRAMS.
- Checks to see if diagnosis and memory circuits are functioning properly.
- Checks for an open in circuit TC3.
- Checks to see if junction connector No. 3 is faulty.
WARNING:
To avoid air bag deployment and injury when trouble shooting system, only use test equipment specified in diagnostic charts.
