NIPPONDENSO 6 & 10-Cylinder Shaft Seal R & I: Installation

  1. Apply clean refrigerant oil to compressor housing bore. Lubricate shaft seal with refrigerant oil and install in front housing. Lubricate seal plate and install in front housing.
  2. Install shaft key, snap ring, felt retainer and felt. With clutch plate installed, ensure air gap between clutch plate and pulley is .024-.040" (.60-1.00 mm) on Fox and MR2; .014-.026" (.36-.66 mm) on all others. If air gap is incorrect, add or remove shim(s) as necessary.

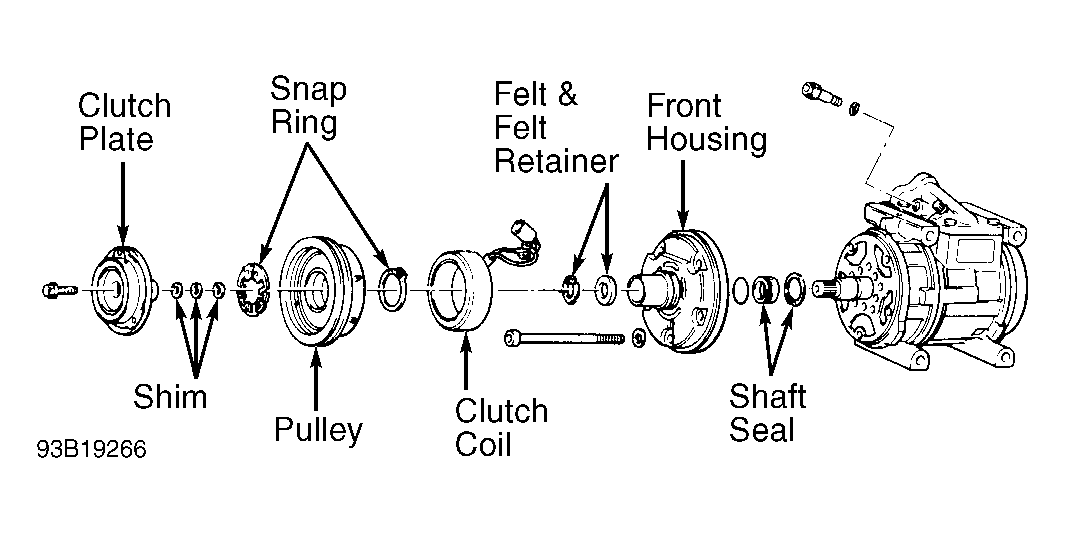

Fig 1: Exploded View Of Compressor (Nippondenso 10PA15 10-Cylinder)
G93B19266Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
