CALSONIC V5 & V6 Clutch Coil R & I: Removal

  1. Remove shaft nut while holding clutch plate with Clutch Disc Wrench (J-39072). Install clutch disc Puller Set (J-39073-4, J-33013-1, J-33013-3) and remove clutch plate.

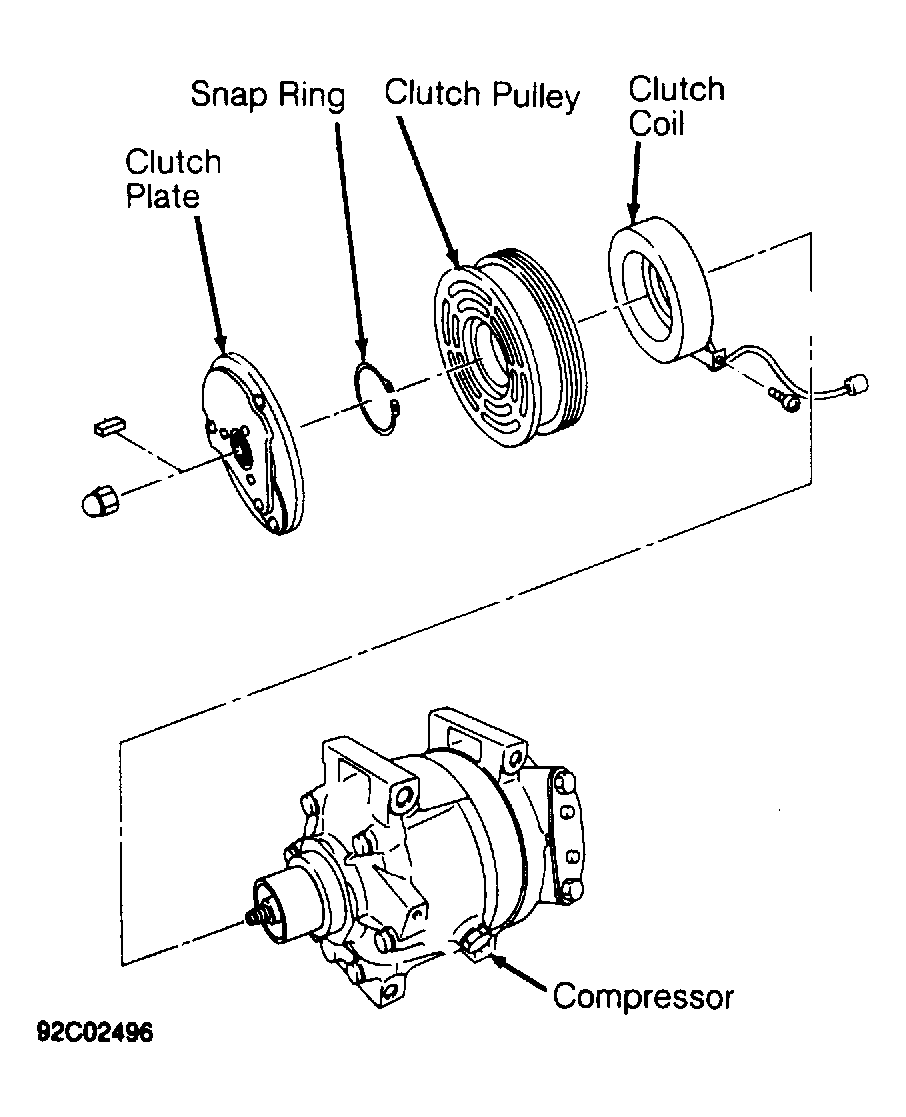

  2. Remove snap ring. Use a universal gear puller to remove clutch pulley. See Figure. Remove screw from clutch coil lead. Use puller to remove clutch coil.
