Disabling Driver-Side Air Bag (Integra & Vigor)

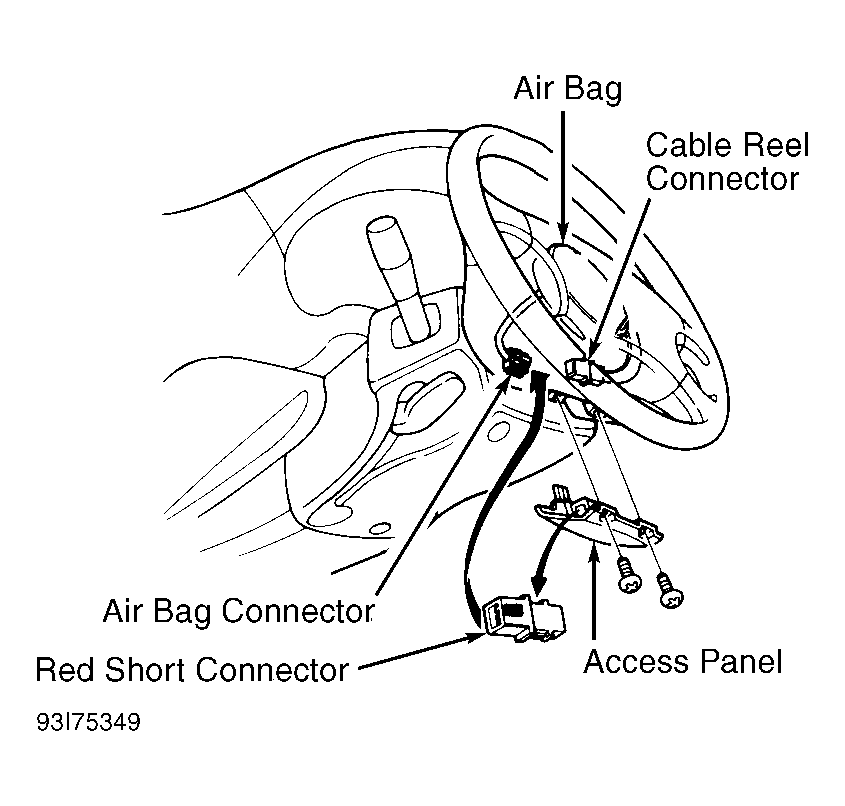

  1. Turn ignition off. Disconnect both battery cables. Remove access panel from steering wheel. See Figure. Remove Red short connector from holder on access panel.
  2. Disconnect air bag connector from cable reel connector. Connect Red short connector to air bag connector. Driver-side air bag is now disabled. Disable passenger-side air bag (if equipped).
