Master Cylinder: Reassembly

To reassemble, reverse disassembly procedure using new rubber parts. See Fig 1 . Lubricate all components with clean brake fluid or brake fluid compatible grease. Bench-bleed master cylinder before installing in vehicle. Bleed entire brake system after installation. See BLEEDING BRAKE SYSTEM  .

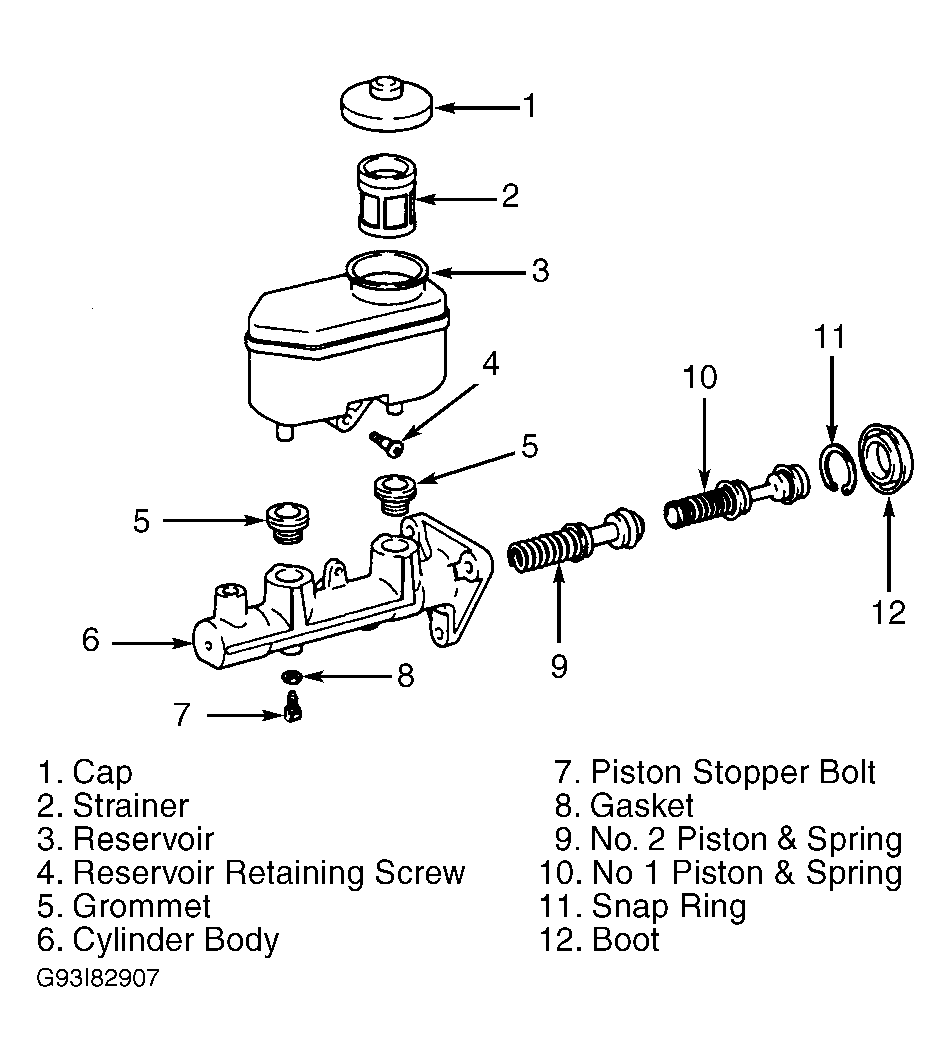

Fig 1: Exploded View Of Master Cylinder

Courtesy of GENERAL MOTORS CORP.
