Front Disc Brake Caliper: Reassembly

To reassemble, reverse disassembly procedure. Lubricate piston seal, piston and caliper bore with brake fluid. Install dust boot seal ring. See Fig 1 .

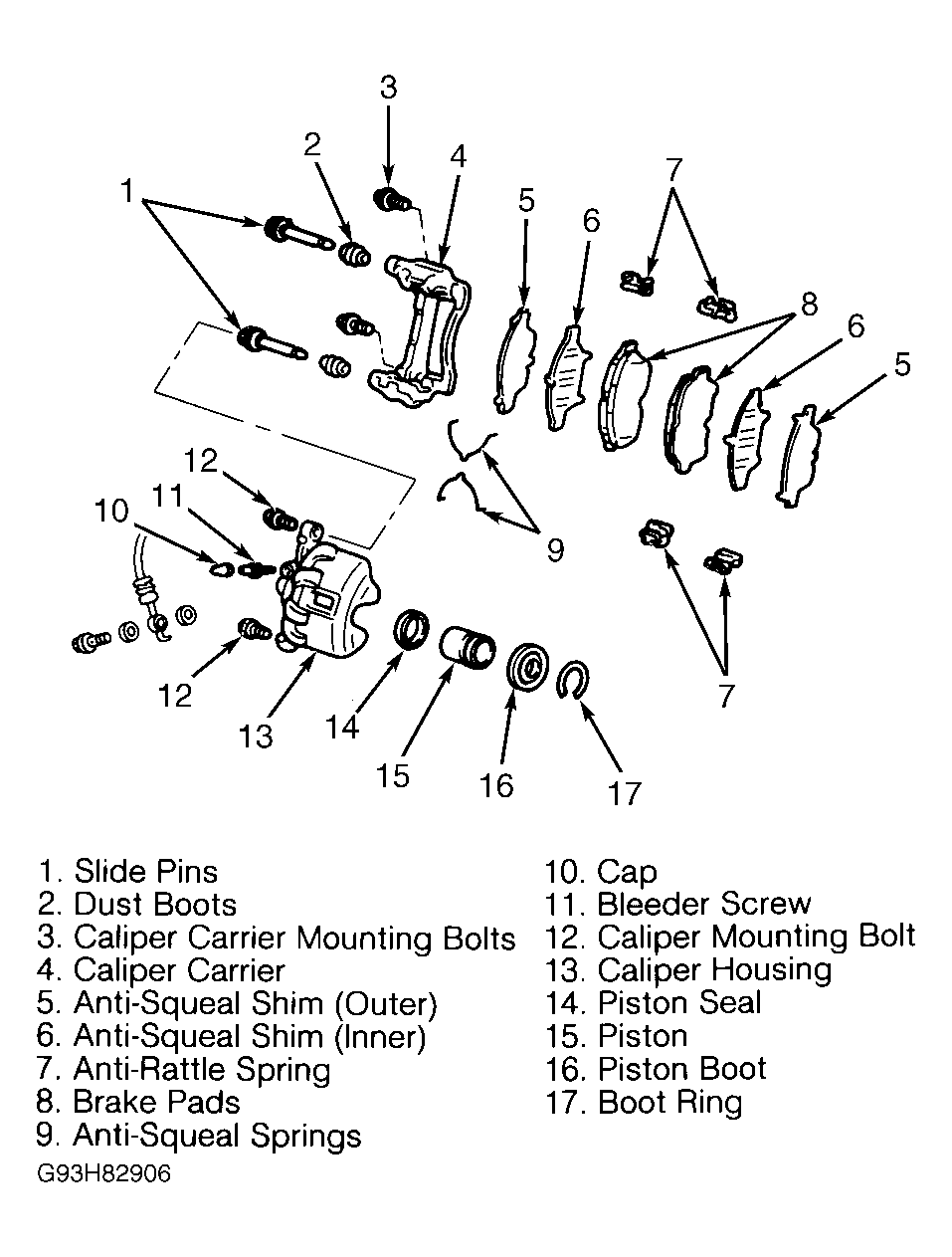

Fig 1: Exploded View Of Front Disc Brake Caliper
G93H82906Courtesy of GENERAL MOTORS CORP.
