Diagnostic Aids

An intermittent malfunction may result from a mechanical part sticking, binding or slipping.

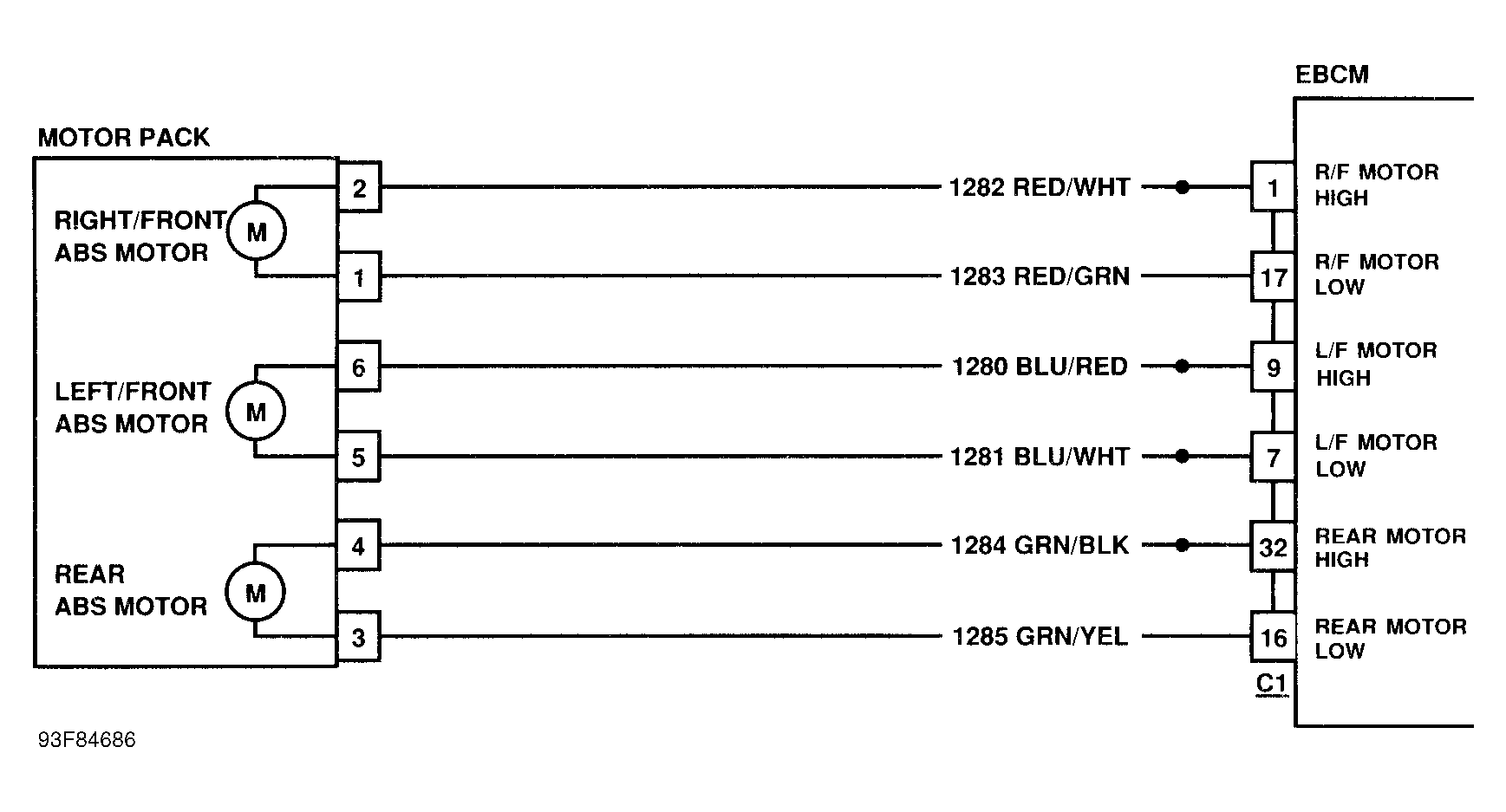

Fig 1: DTC A047 Schematic, Left Front Motor Free Spins

Courtesy of GENERAL MOTORS CORP.

Fig 2: DTC A047 Flow Chart (1 Of 2), Left Front Motor Free Spins

Courtesy of GENERAL MOTORS CORP.

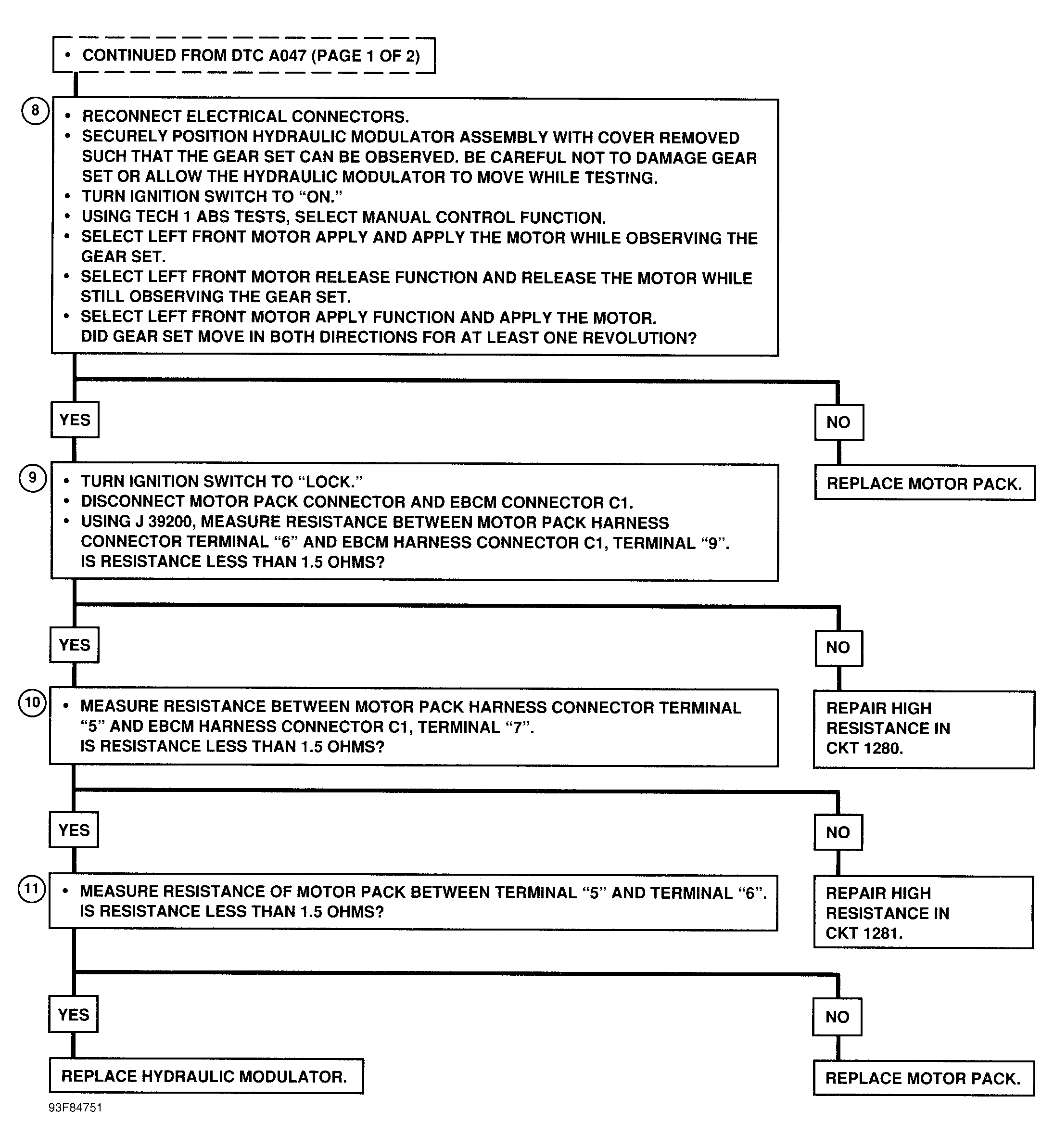

Fig 3: DTC A047 Flow Chart (2 Of 2), Left Front Motor Free Spins

Courtesy of GENERAL MOTORS CORP.
