Diagnostic Aids

An intermittent malfunction may result from a mechanical part sticking, binding or slipping.

Fig 1: DTC A041 Schematic, Right Front Esb Will Not Hold Motor

Courtesy of GENERAL MOTORS CORP.

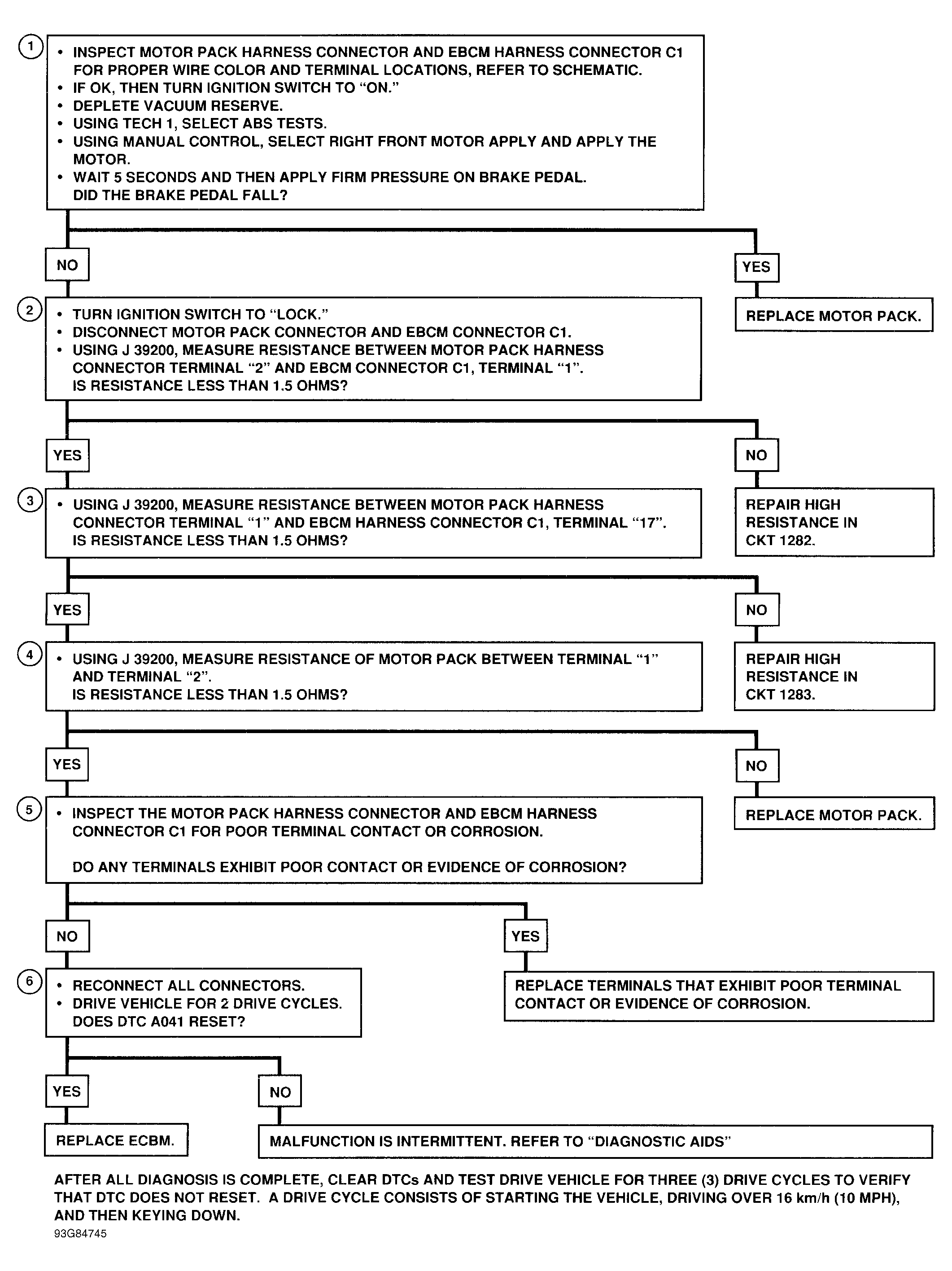

Fig 2: DTC A041 Flow Chart, Right Front Esb Will Not Hold Motor

Courtesy of GENERAL MOTORS CORP.
