Diagnostic Aids

An intermittent malfunction may result from a mechanical part sticking, binding or slipping.

Fig 1: DTC A038 Schematic, Left Front ESB Will Not Hold Motor

Courtesy of GENERAL MOTORS CORP.

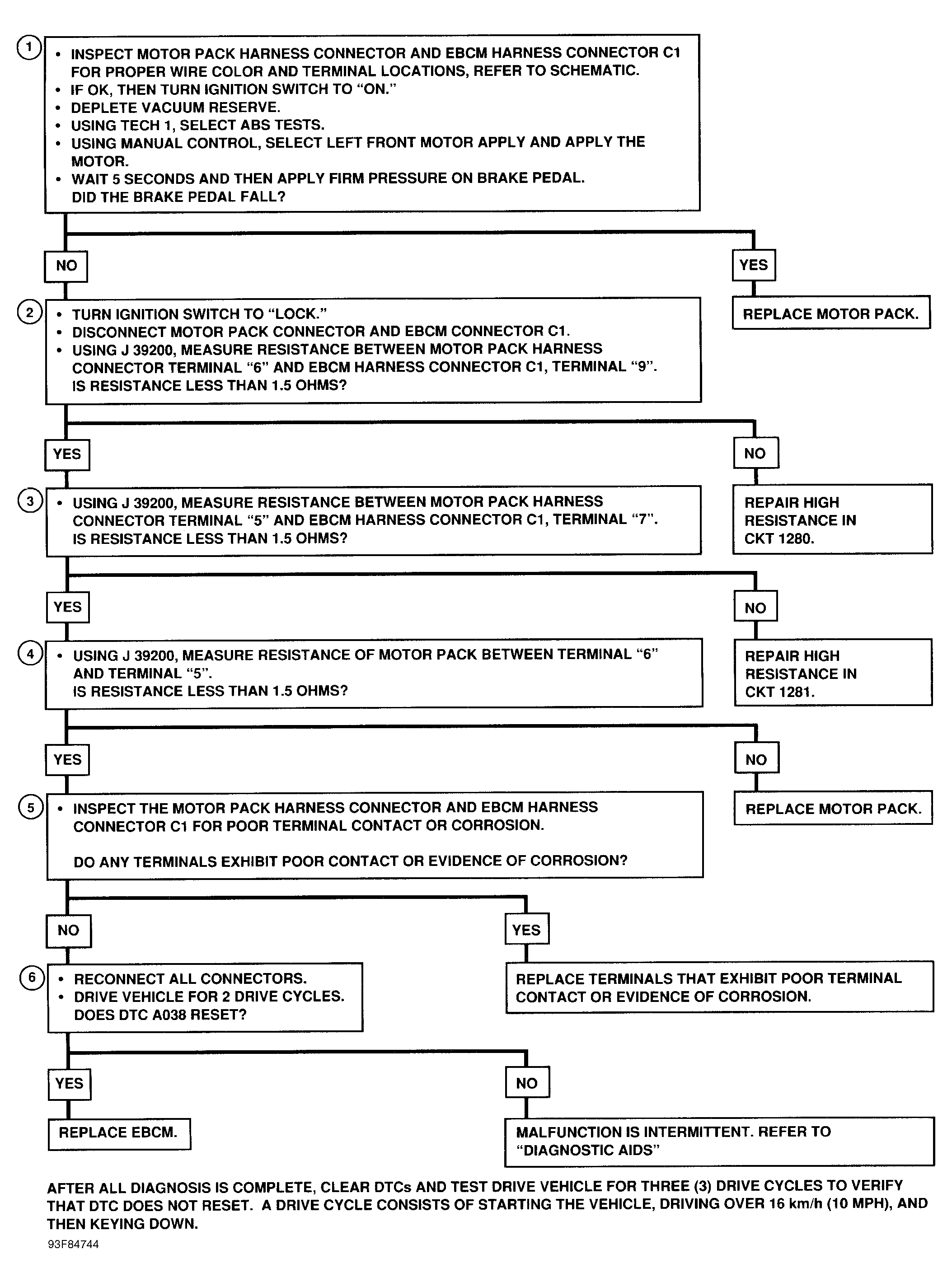

Fig 2: DTC A038 Flow Chart, Left Front Esb Will Not Hold Motor

Courtesy of GENERAL MOTORS CORP.
