Front Disc Brake Caliper: Disassembly

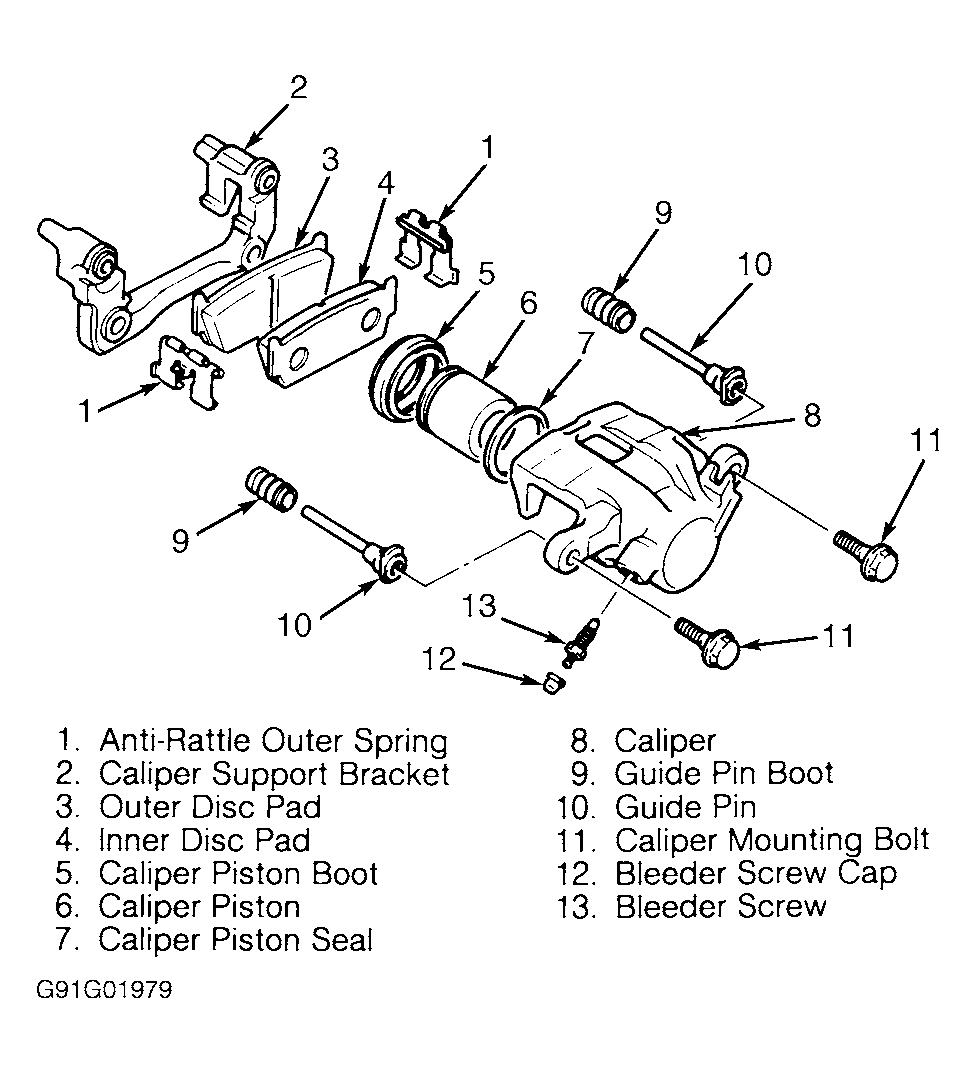

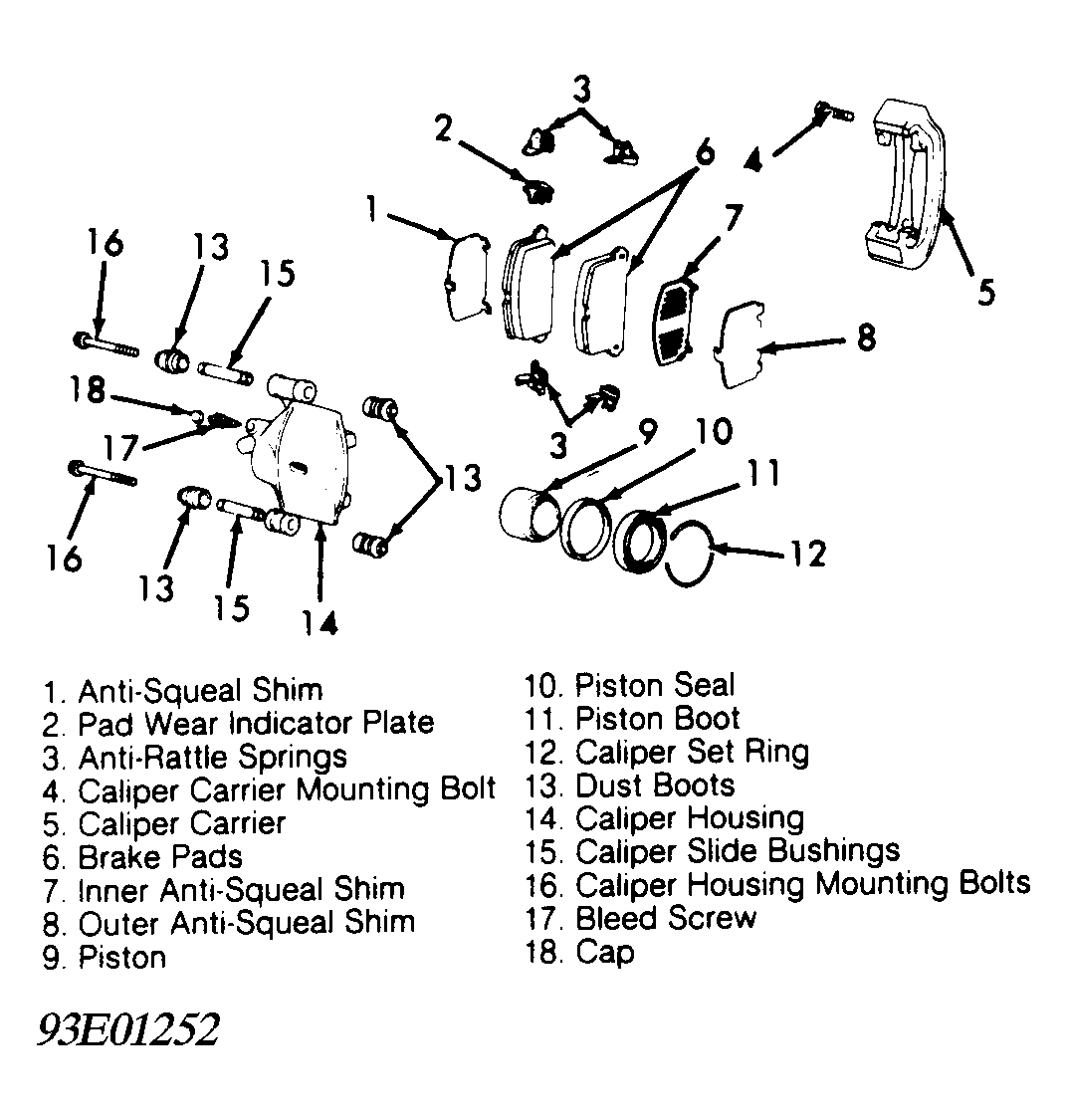

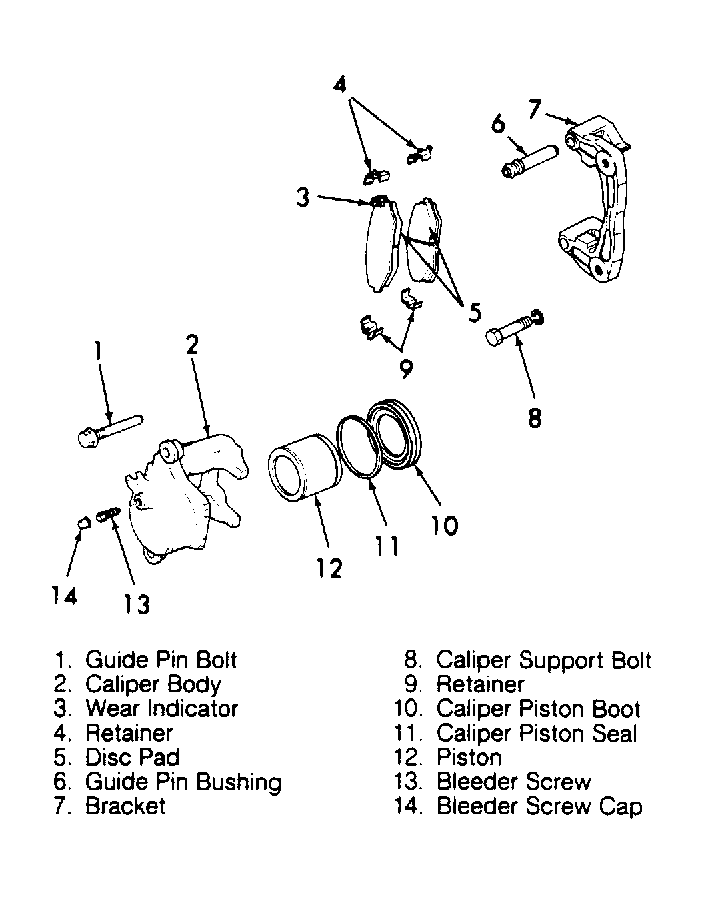

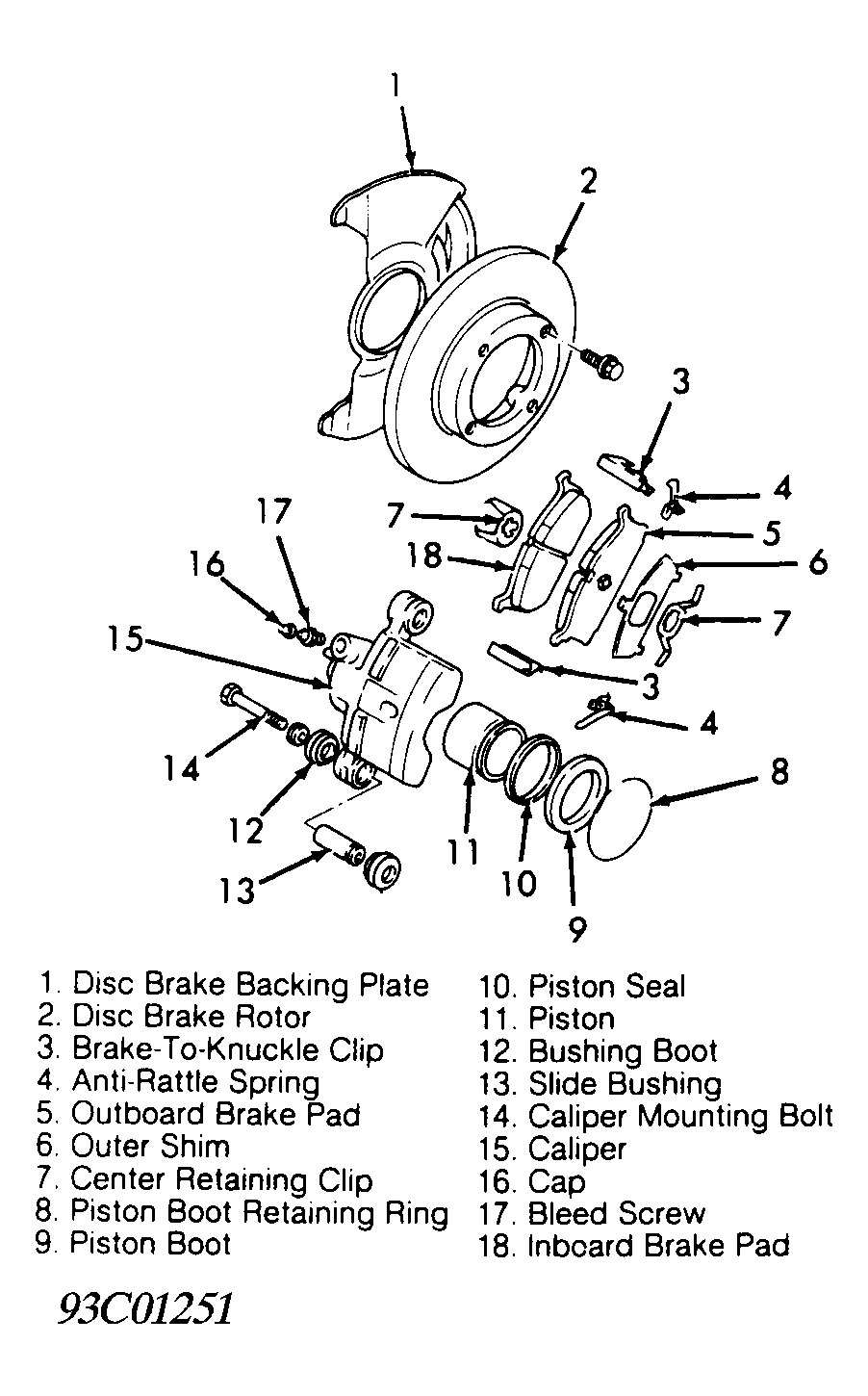

Remove piston dust boot and ring. See Figure, Figure, Figure or Figure . Place a block of wood between piston and caliper cavity wall. Carefully apply a moderate amount of compressed air to fluid inlet to force piston out of cylinder.
