Removal & Installation (Metro)
- Remove 4 retaining screws from instrument cluster trim bezel. Disconnect rear wiper/washer switch and rear defogger switch connectors. Remove both cluster hood and cluster switch panel as an assembly.

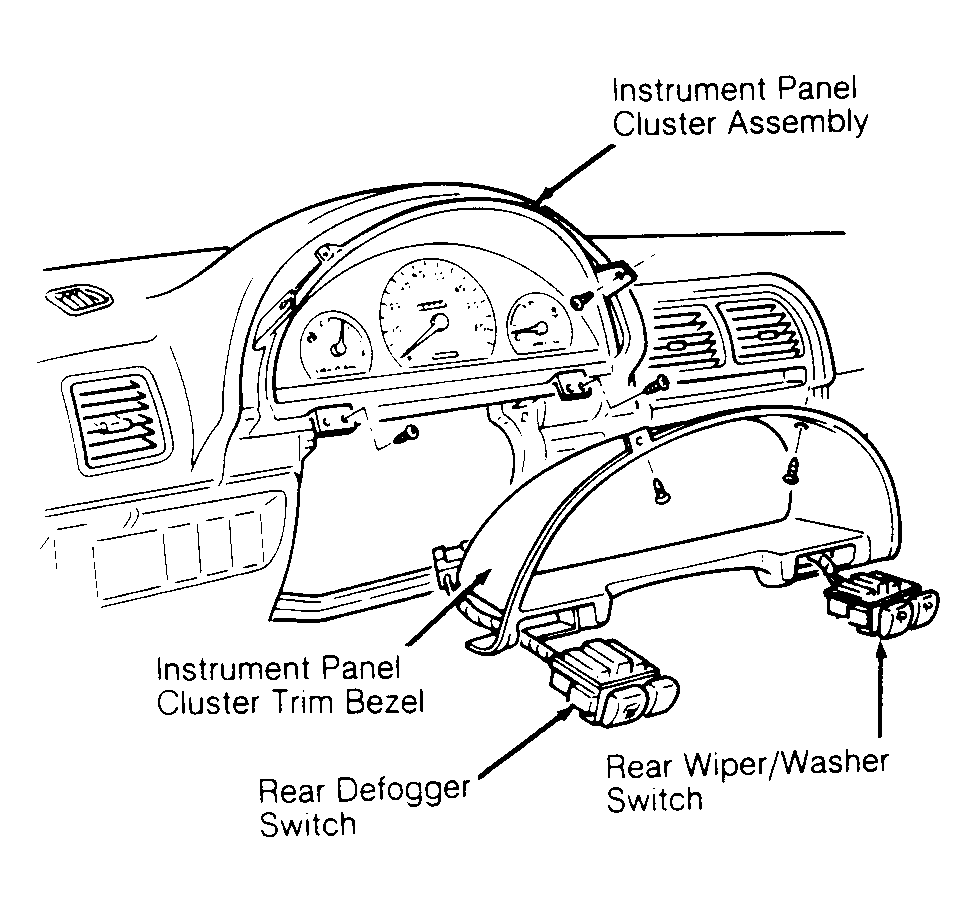

- Disconnect electrical connectors from cluster trim bezel-mounted switches. Remove retaining clip and speedometer cable at transaxle. Remove 4 screws and cluster assembly from instrument panel. Remove speedometer cable and all electrical connectors from back of cluster assembly. Remove cluster assembly from vehicle. To install instrument cluster, reverse removal procedure. See Fig 1
.
Courtesy of GENERAL MOTORS CORP.
