Upper Intake Manifold: Installation

To install, reverse removal procedure. Tighten bolts/nuts to specification. See TORQUE SPECIFICATIONS table at end of article. Fill cooling system.

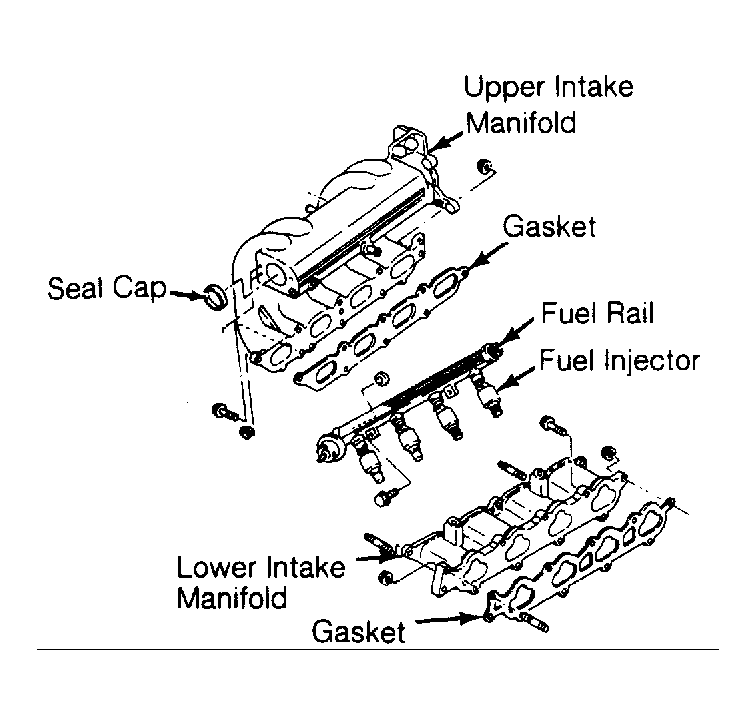

Fig 1: Exploded View Of Upper & Lower Intake Manifolds (1.6L)

Courtesy of GENERAL MOTORS CORP.

To install, reverse removal procedure. Tighten bolts/nuts to specification. See TORQUE SPECIFICATIONS table at end of article. Fill cooling system.

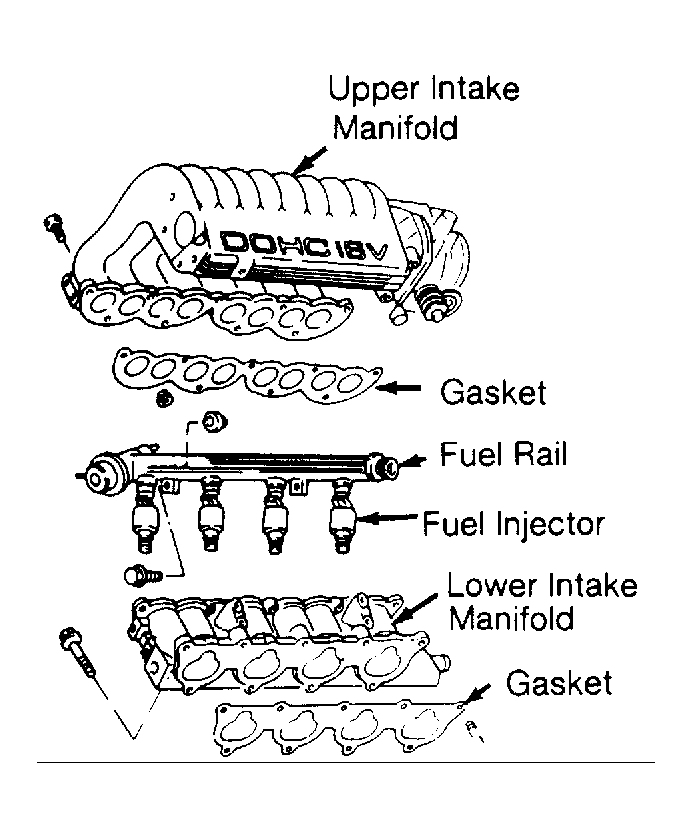

Fig 1: Exploded View Of Upper & Lower Intake Manifolds (1.8L)

Courtesy of GENERAL MOTORS CORP.
