Valve Body Retainer Specifications Tables: Notes

UPPER VALVE BODY RETAINER SPECIFICATIONS ⁽¹⁾

Application (Letter ID) ⁽²⁾

Height: In. (mm)

Accumulator Control Valve ("A")

.591 (15.00)

Cut-Back Valve ("B")

.630 (16.00)

Low Or 2nd Coast Modulator Valve ("C")

.835 (21.20)

⁽¹⁾	Width is .197" (5.00 mm) for all retainers.

⁽²⁾	For retainer locations, see Fig 2.

LOWER VALVE BODY RETAINER SPECIFICATIONS ⁽¹⁾ ("E" SERIES)

Application (Letter ID) ⁽²⁾

Height: In. (mm)

Secondary Regulator Valve ("A")

.362 (9.20)

All Other Valves

.453 (11.50)

⁽¹⁾	Width is .197" (5.00 mm) for all retainers.

⁽²⁾	For retainer locations, see Fig 5.

LOWER VALVE BODY RETAINER SPECIFICATIONS ⁽¹⁾ ("L" SERIES)

Application (Letter ID) ⁽²⁾

Height: In. (mm)

3-4 Shift ("A"), Low Modulator ("C"), Lock-Up Signal ("F"), Detent Regulator ("G") & Low Coast Shift Valve ("J")

.453 (11.50)

2-3 Shift ("B"), Intermediate Shift ("D"), 1-2 Shift ("H"), & Secondary Regulator ("K") Valve

.362 (9.20)

3-4 Shift ("E") & 3rd Coast Shift Valve ("I")

.315 (8.00)

⁽¹⁾	Width is .197" (5.00 mm) for all retainers except ("E") and ("I"). Retainers ("E") and ("I") width is .236" (6.00 mm).

⁽²⁾	For retainer locations, see Fig 5.

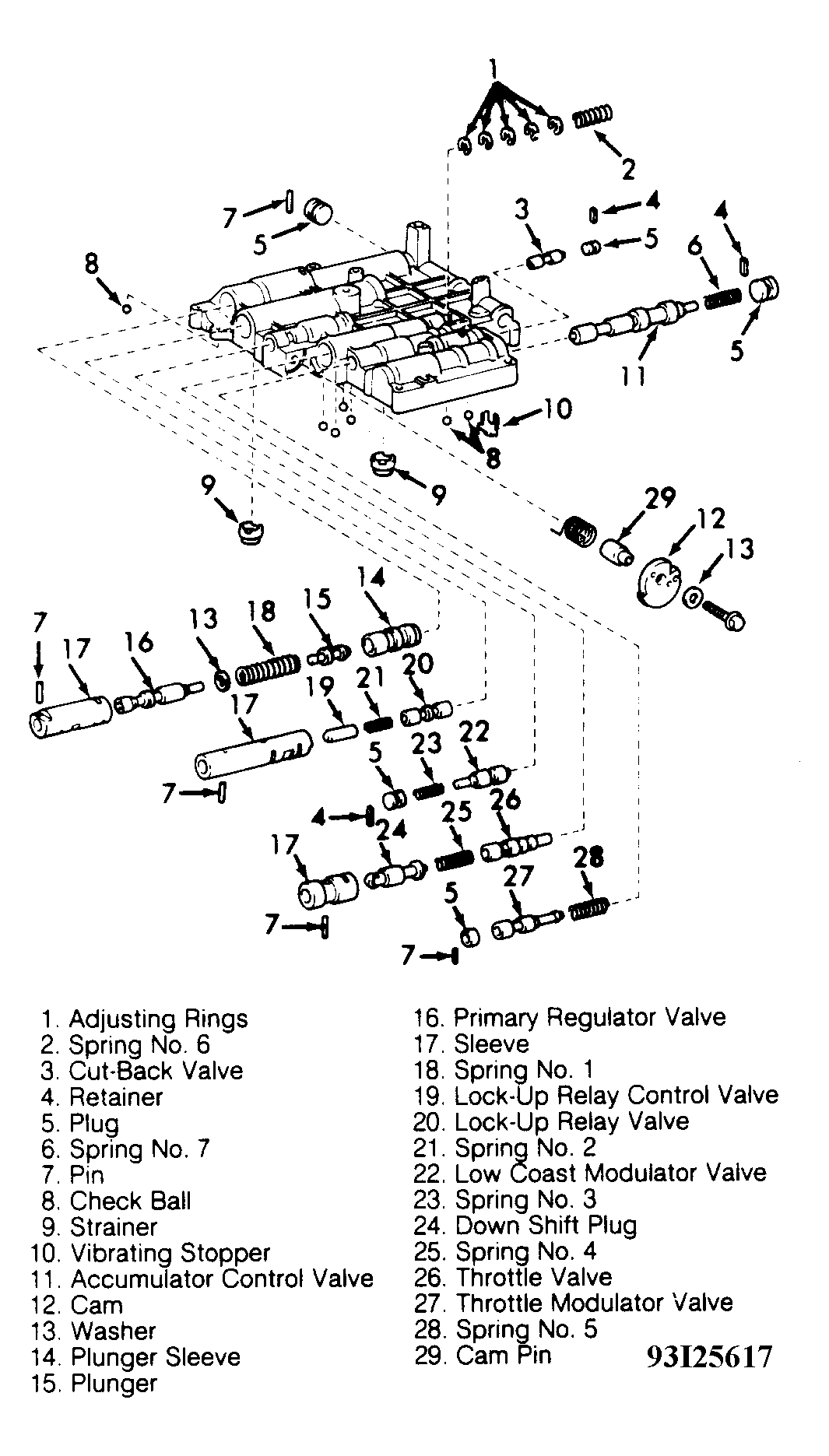

Fig 1: Exploded View Of Upper Valve Body

Fig 2: Upper Valve Body Check Ball, Pin & Retainer Locations

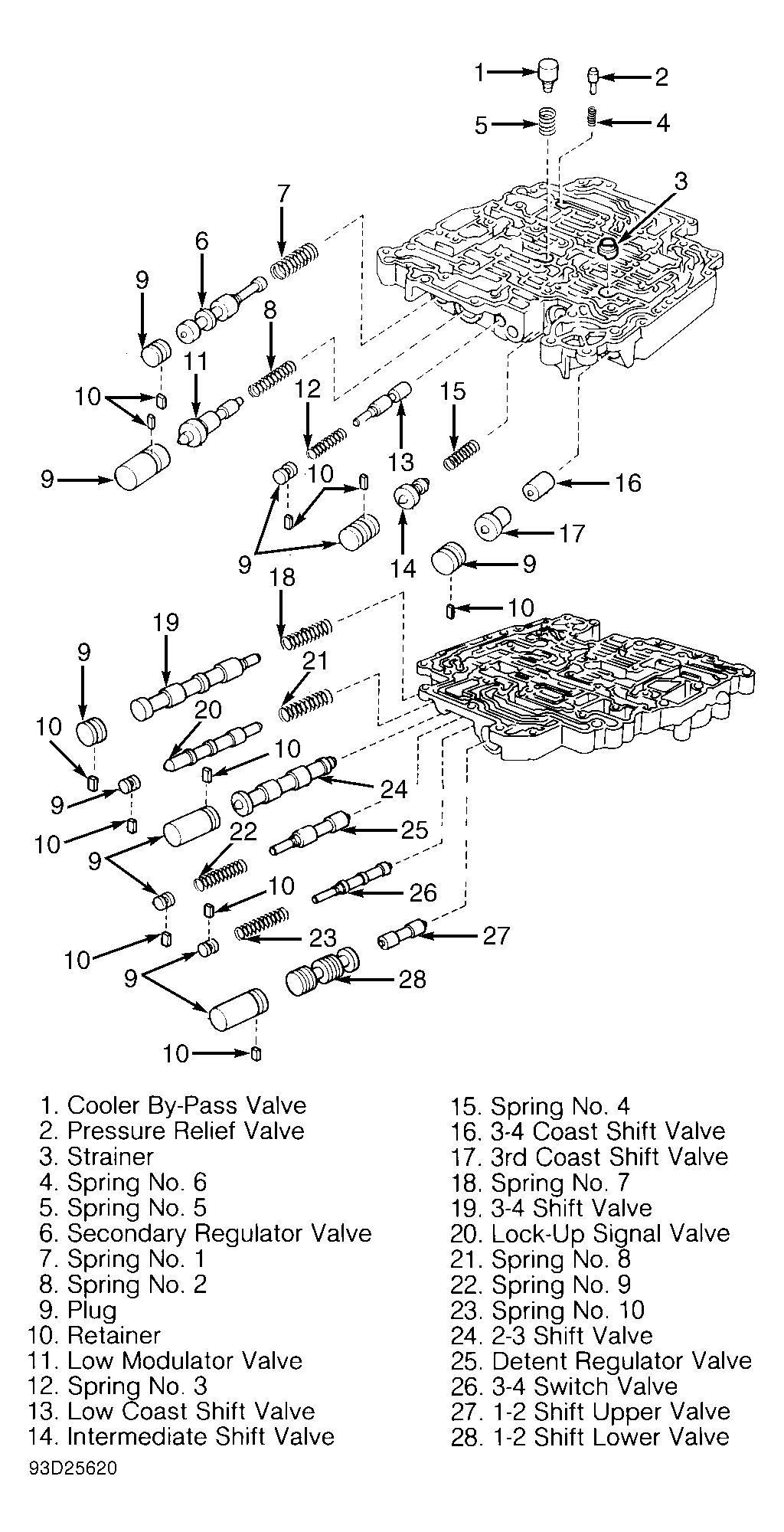

Fig 3: Exploded View Of Lower Valve Body (A-240E, A-241E & A-244E)

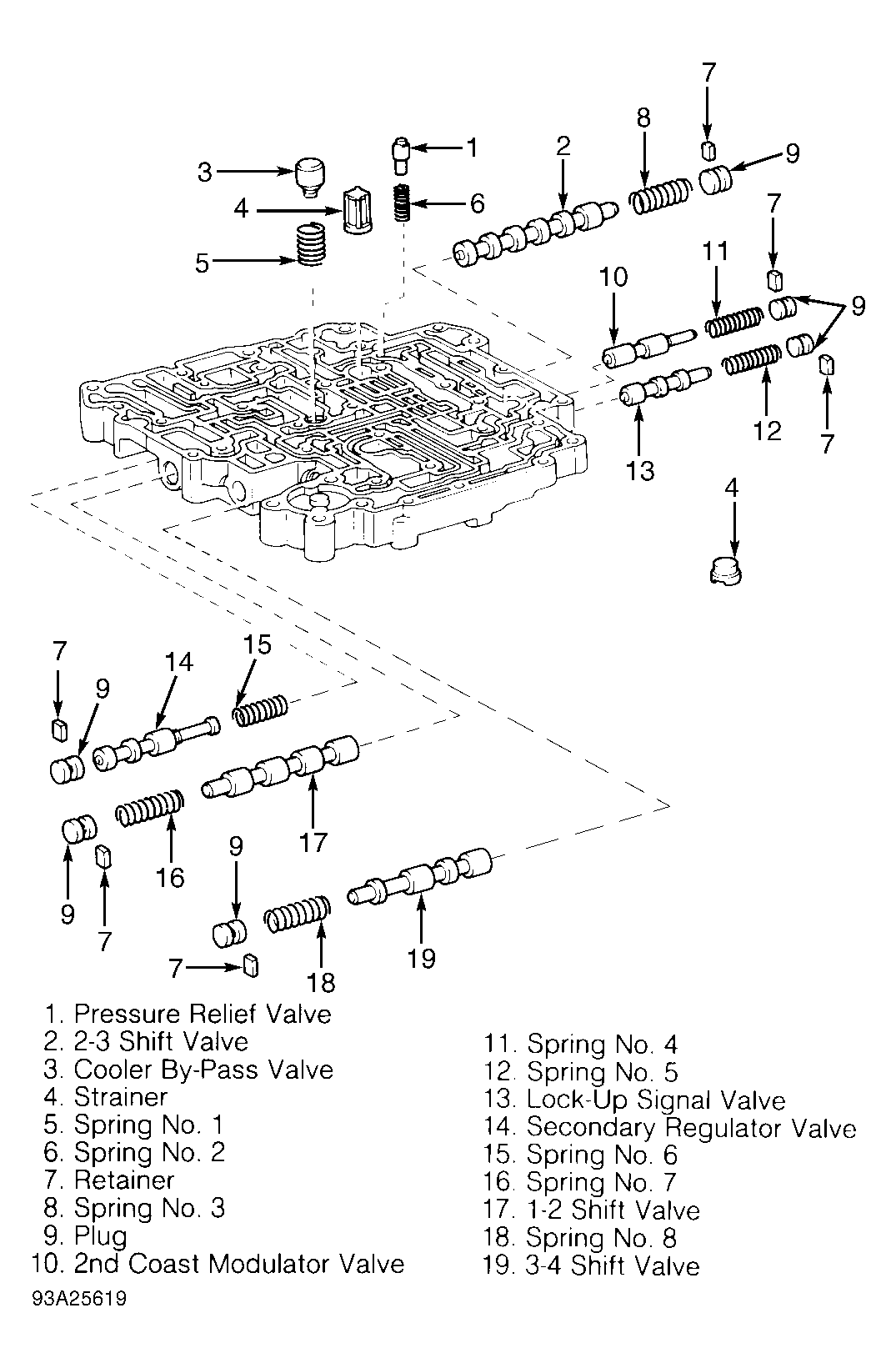

Fig 4: Exploded View Of Lower Valve Body (A-240L, A-241L & A-243L)

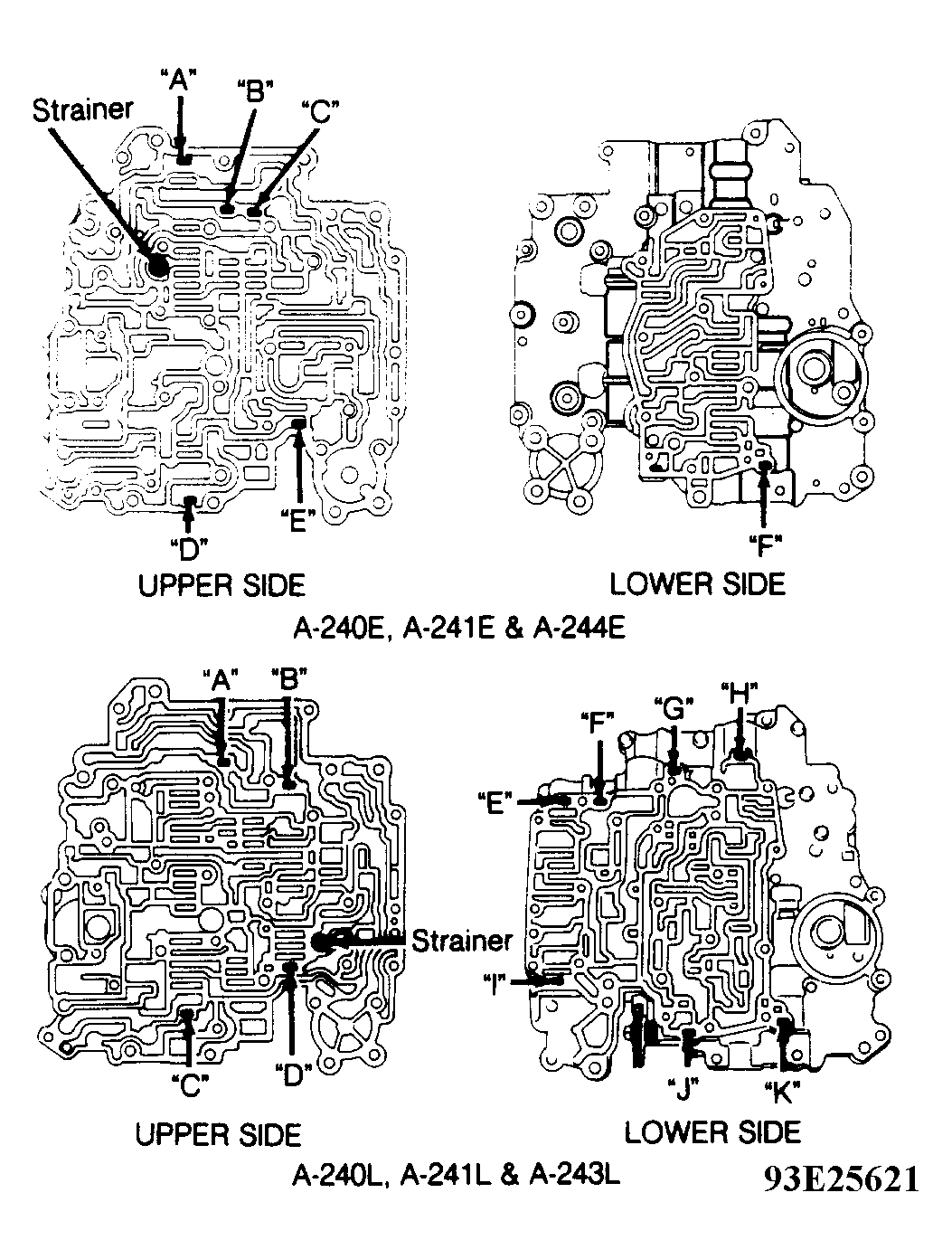

Fig 5: Identifying Lower Valve Body Retainer Locations
