Oil Pump: Reassembly

  1. Using Seal Installer (09350-32140), install NEW oil seal. Seal must be even with edge of oil pump body. Coat all components with ATF. Install pump gears aligning reference marks. Install stator shaft on pump body. Align bolt holes and tighten bolts to 89 INCH lbs. (10 N.m).
  2. Coat thrust washer with petroleum jelly. Install thrust washer on oil pump body. Align washer tab with oil pump body. Install oil seal rings. Use care not to over expand rings. Using screwdrivers, check drive gear for smooth rotation. Install "O" ring. Install race on stator shaft. See Fig 1.
Fig 1: Exploded View Of Oil Pump Assembly
G93C24473Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

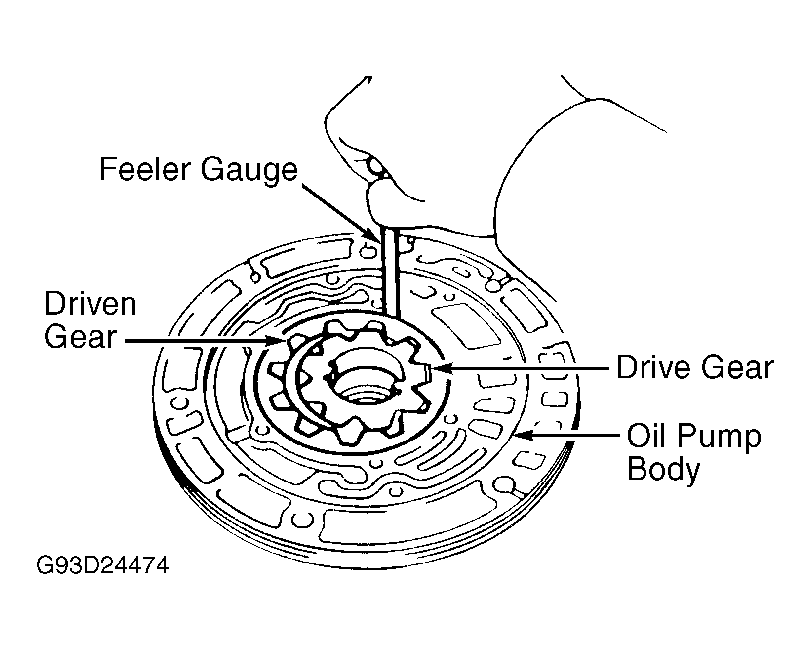

Fig 2: Checking Oil Pump Driven Gear Clearance
G93D24474Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

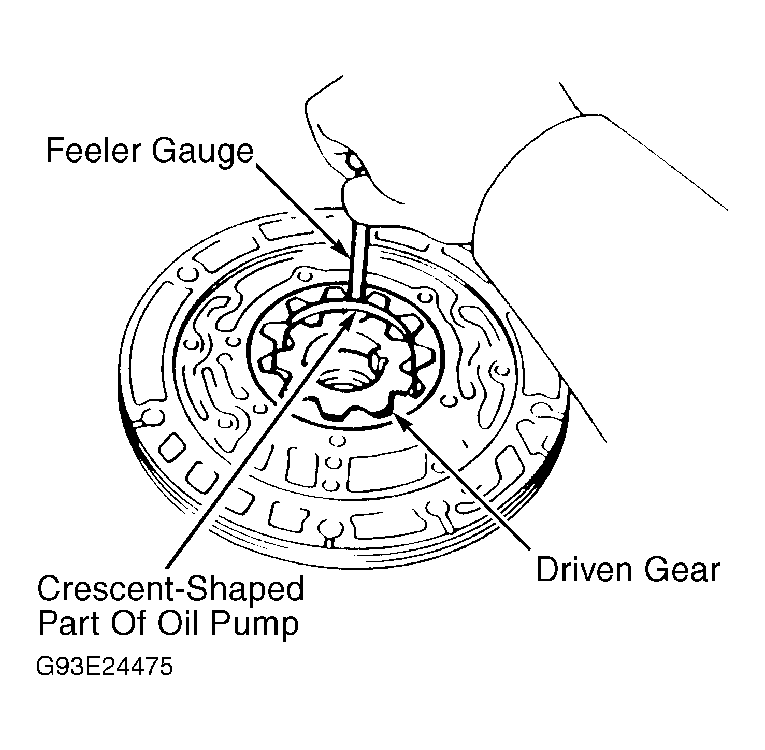

Fig 3: Checking Oil Pump Gear Tip Clearance
G93E24475Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Checking Oil Pump Gear Side Clearance
G93F24476Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
