Hub & Knuckle Assembly: Removal

  1. Raise and support vehicle, allowing suspension to hang freely. Remove wheel and brake drum (if equipped). Remove axle hub. See REAR AXLE HUB ASSEMBLY  .

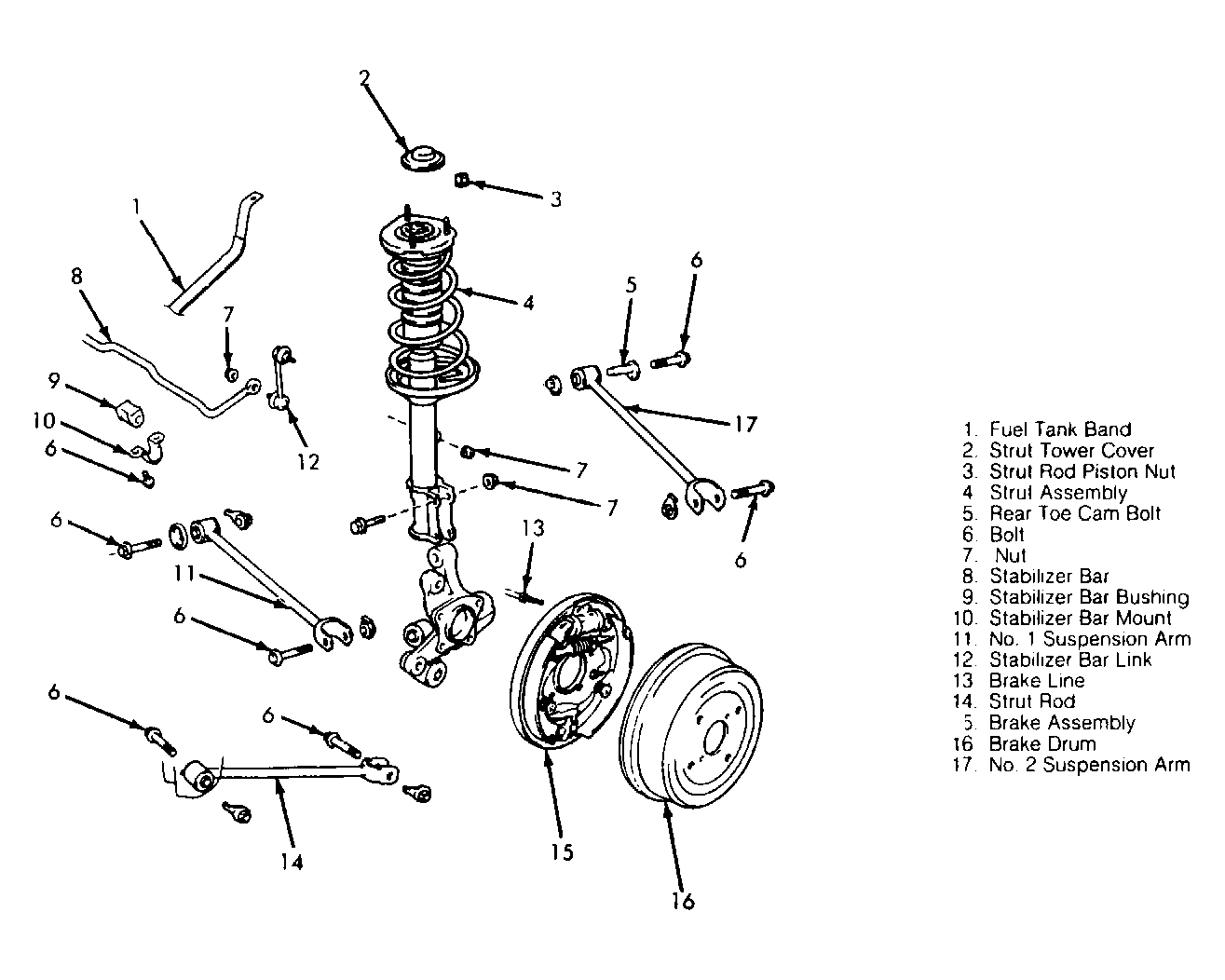

  2. Remove brake line from hose and backing plate (if equipped). Remove strut rod from knuckle. Disconnect No. 1 and No. 2suspension arms from knuckle. See Figure . Disconnect strut assembly from knuckle. Remove knuckle assembly.
