Differential (Prizm)

WARNING: This page is about a different car, the 1992 Geo Tracker and 1992 Geo Prizm. However, it is still accessible from the selected car via links, so may be relevant.

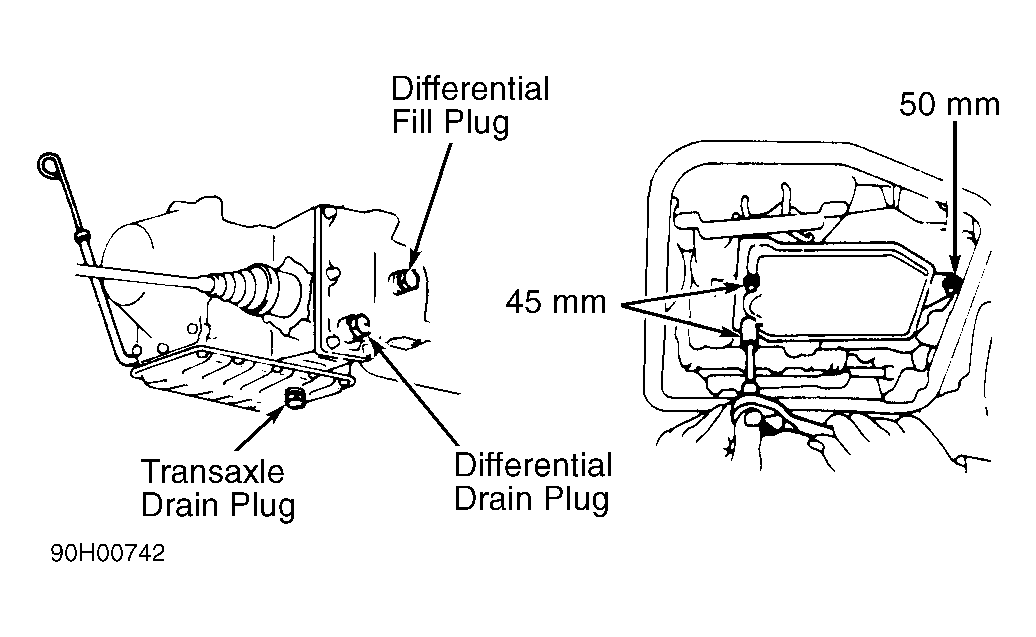

Differential ATF reservoir is separate from transaxle fluid reservoir. Remove differential fill plug from transaxle case. Ensure fluid level is at bottom of fill plug hole. See Figure.
