Park/Lock Cable: Tracker

WARNING: This page is about a different car, the 1992 Geo Tracker and 1992 Geo Prizm. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove console covers. Park/lock cable is adjusted at bracket, located near gearshift. Place ignition switch in ACC position.
  2. Loosen park/lock cable lock nut. See Fig 1. Lift cable from bracket, but not from park/lock cam.
  3. Place gearshift in PARK position with release button on gearshift fully depressed. Align adjusting nut with bracket with park/lock cable pulled tight. Rotate adjusting nut one revolution inward, away from park/lock cam. Tighten lock nut. Install console covers.

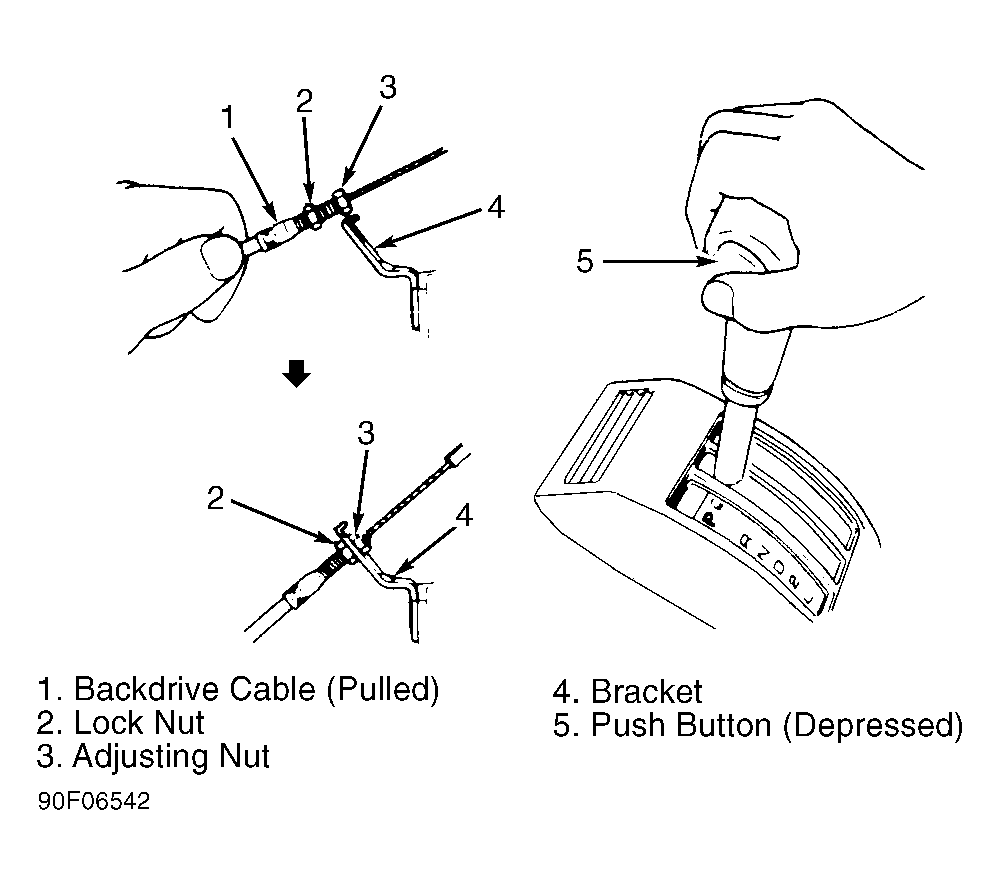

Fig 1: Adjusting Park/Lock Cable (Tracker)
G90F06542Courtesy of GENERAL MOTORS CORP.
