Storm & Storm GSi

WARNING: This page is about a different car, the 1992 Geo Tracker and 1992 Geo Prizm. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect battery ground cable. Disconnect kickdown switch electrical connectors. Loosen kickdown switch lock nuts. Back switch out of accelerator pedal bracket 2-3 turns. Turn switch clockwise until click is heard. Rotate switch additional 1/2 turn clockwise after click is heard. Tighten switch lock nuts to 44 INCH lbs. (5 N.m). See Fig 1.

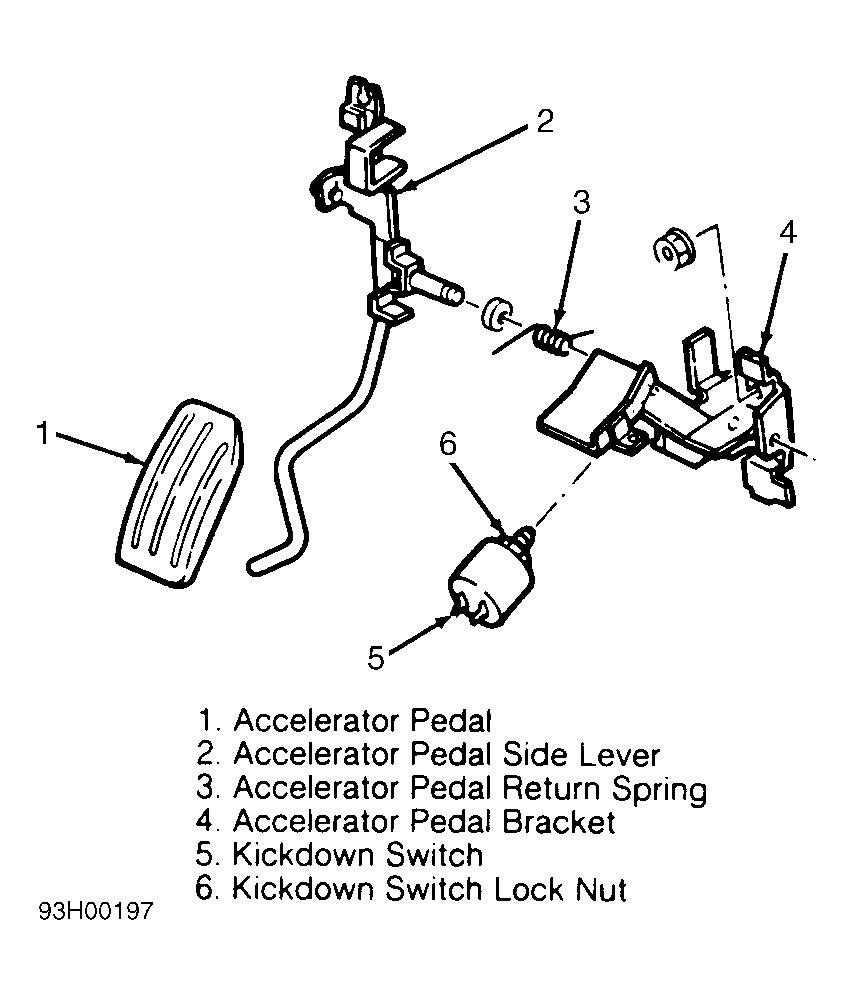

Fig 1: Adjusting Kickdown Switch (Storm & Storm GSi)
G93H00197Courtesy of GENERAL MOTORS CORP.
