Action Taken

WARNING: This page is about a different car, the 1991 Geo Storm, 1991 Geo Metro, 1990 Geo Storm, and 1990 Geo Metro. However, it is still accessible from the selected car via links, so may be relevant.

DERM turns on INFLATABLE RESTRAINT indicator light.

NOTE: Test numbers refer to test numbers on diagnostic chart. For circuit number identification, see WIRING DIAGRAMS  .

Checks for a short to ground in 36VLR circuit between DERM and arming sensor.

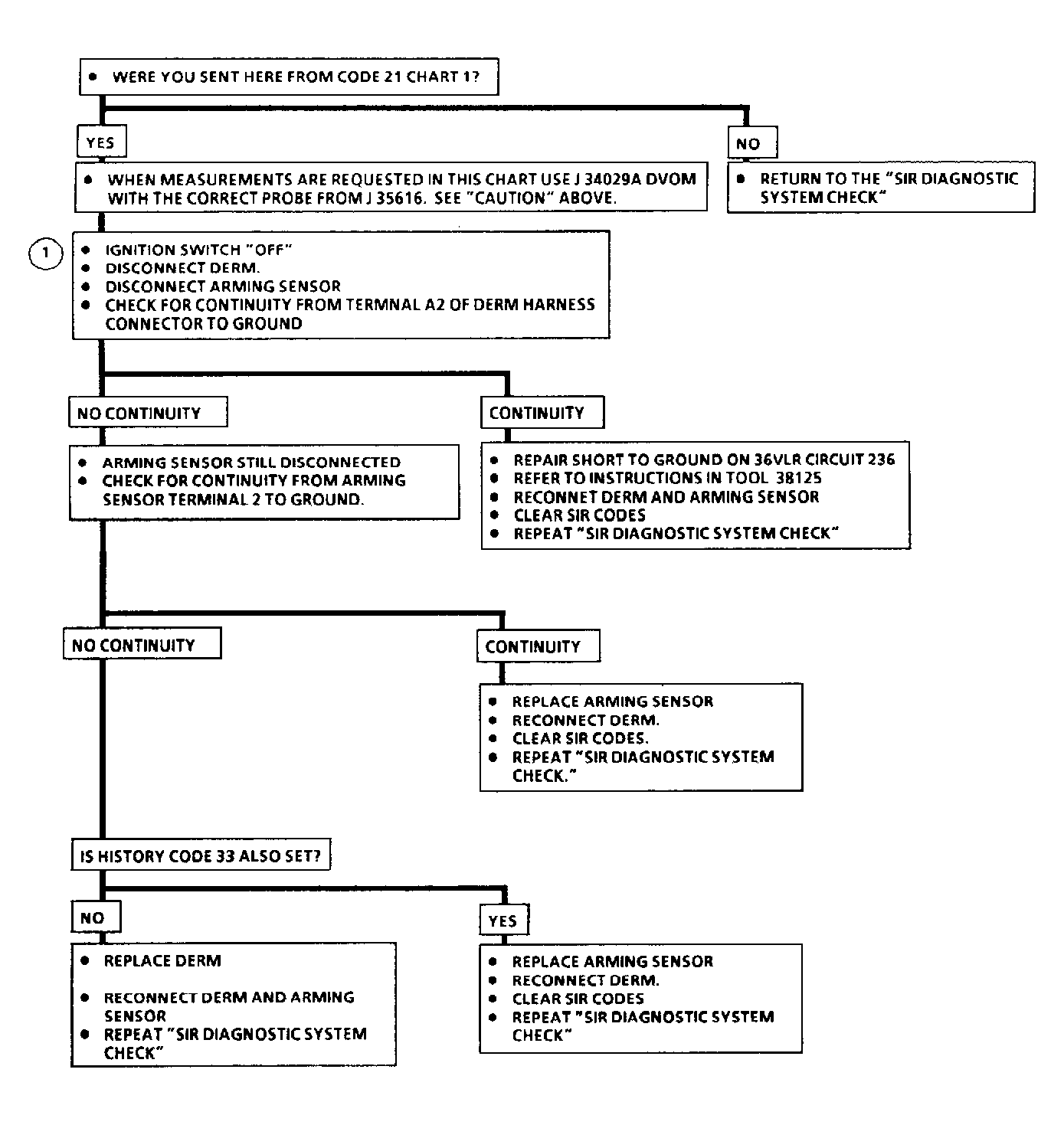

Fig 1: Code 32, Grounded 36VLR To Deployment Loop
G91J12780Courtesy of GENERAL MOTORS CORP.
