Action Taken
WARNING: This page is about a different car, the 1991 Geo Storm, 1991 Geo Metro, 1990 Geo Storm, and 1990 Geo Metro. However, it is still accessible from the selected car via links, so may be relevant.
DERM turns on INFLATABLE RESTRAINT indicator light.
NOTE:

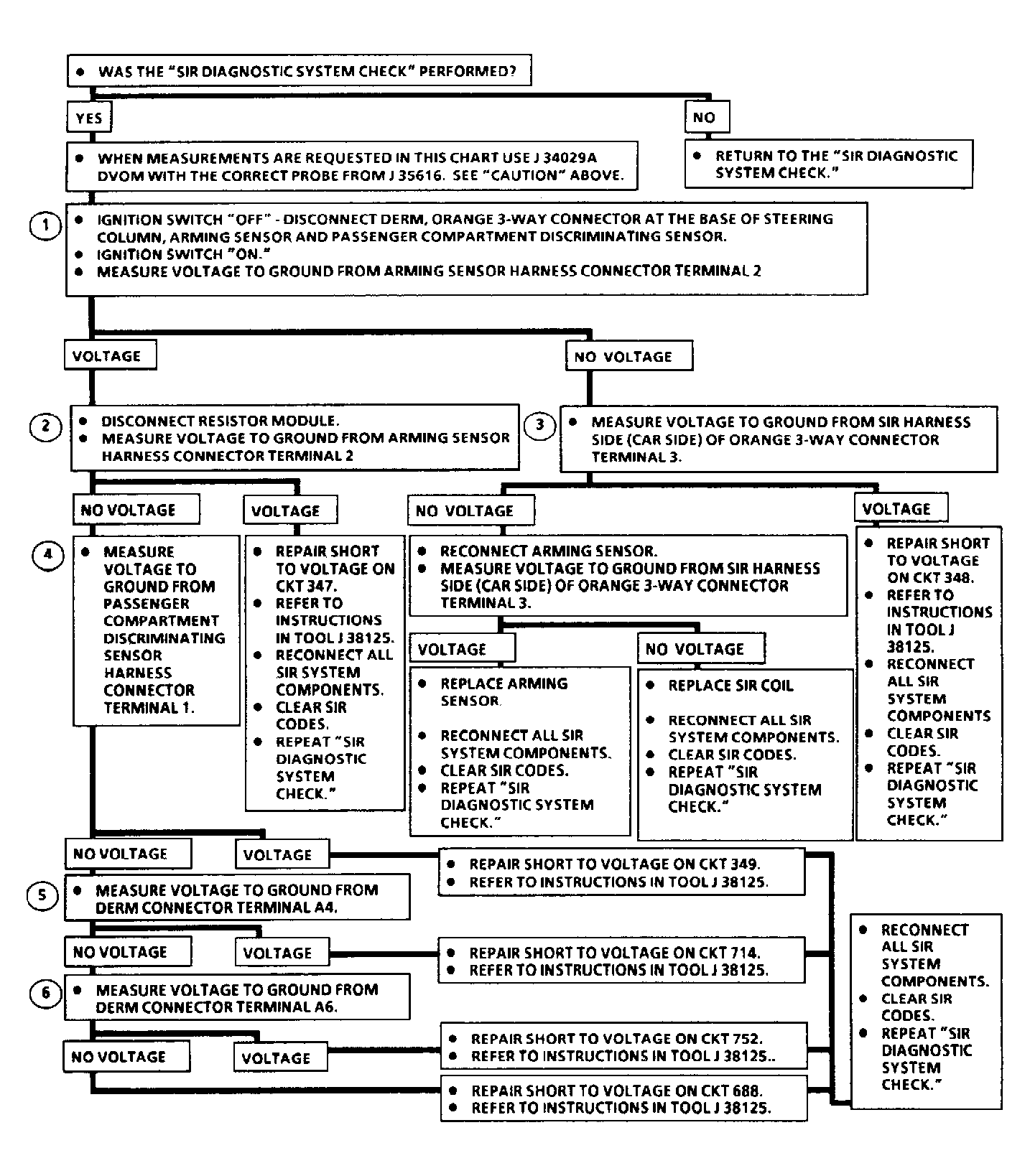

Test numbers refer to test numbers on diagnostic chart. For circuit number identification, see WIRING DIAGRAMS
.
- Determines if fault is short to voltage on circuit No. 340, SIR coil or dual sensor.
- Determines if fault is short to voltage on circuit No. 347.
- Determines if fault is short to voltage on circuit No. 340 or if fault is defective SIR coil or dual sensor.
- Determines if fault is short to voltage on circuit No. 348.
- Determines if fault is short to voltage on circuit No. 714.
- Determines if fault is short to voltage on circuit No. 752 or 688.
