Action Taken

WARNING: This page is about a different car, the 1991 Geo Storm, 1991 Geo Metro, 1990 Geo Storm, and 1990 Geo Metro. However, it is still accessible from the selected car via links, so may be relevant.

DERM attempts to turn on INFLATABLE RESTRAINT indicator light.

NOTE: Test numbers refer to test numbers on diagnostic chart. For circuit number identification, see WIRING DIAGRAMS .

Checks for an open 100-ohm resistor in resistor module.
Checks for an open between resistor module and DERM on FORCE LOW circuit.

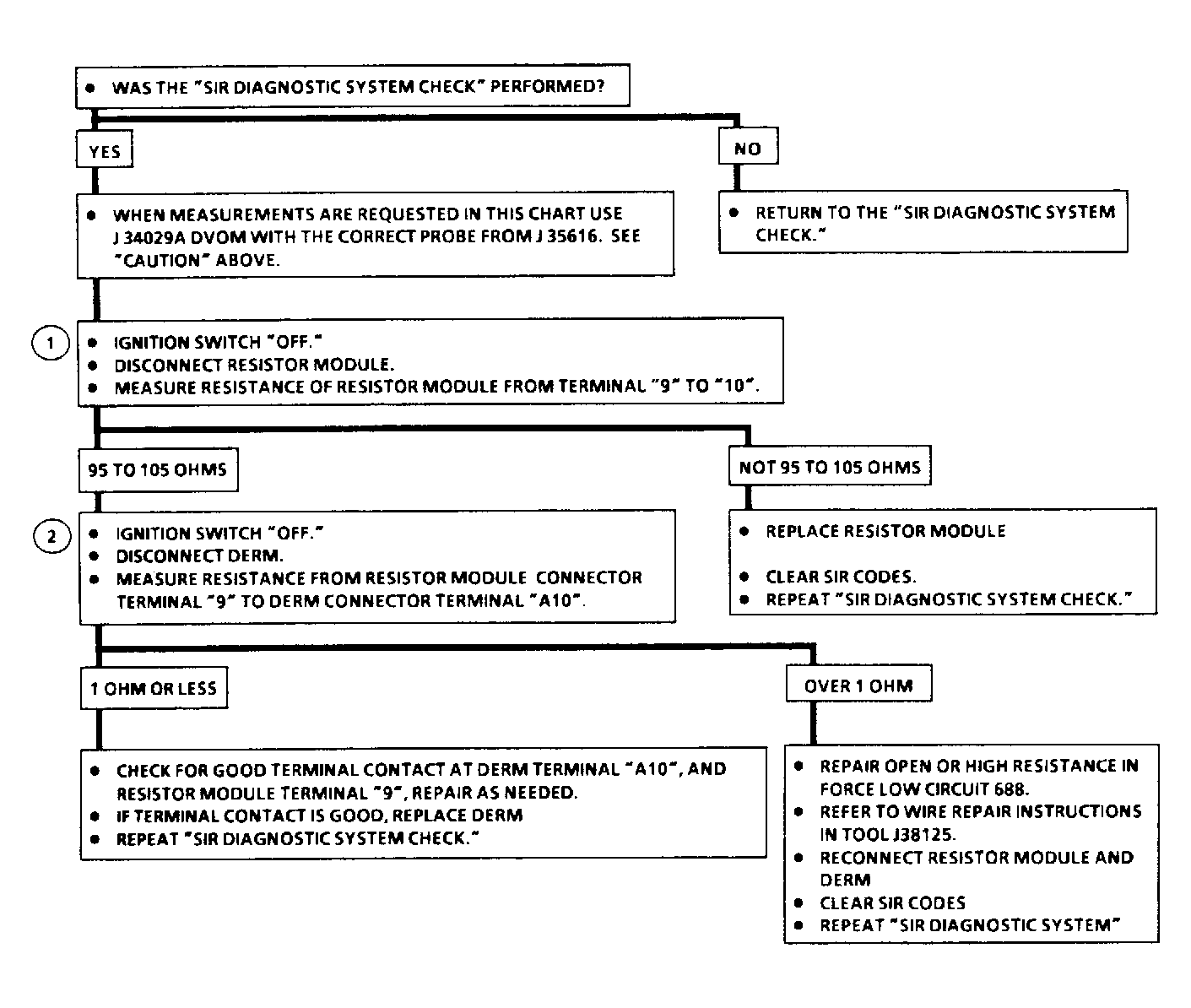

Fig 1: Code 61, Force Low Or Inflatable Restraint Indicator Circuit Failure

Courtesy of GENERAL MOTORS CORP.
