Action Taken

WARNING: This page is about a different car, the 1991 Geo Storm, 1991 Geo Metro, 1990 Geo Storm, and 1990 Geo Metro. However, it is still accessible from the selected car via links, so may be relevant.

DERM turns on INFLATABLE RESTRAINT indicator light.

NOTE: Test numbers refer to test numbers on diagnostic chart. For circuit number identification, see WIRING DIAGRAMS  .
  1. Checks for continuity in circuit No. 349.

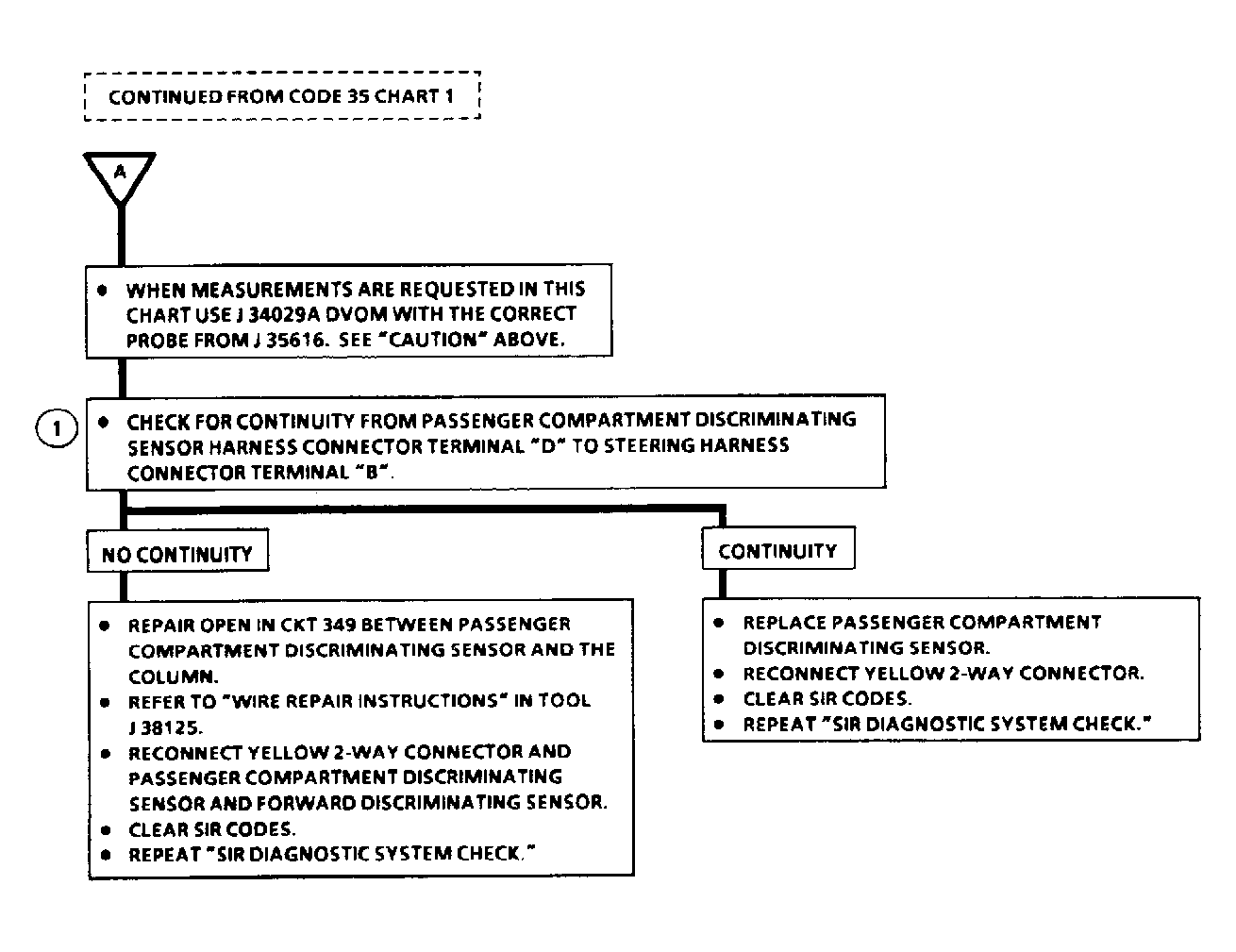

Fig 1: Code 35, Chart 2 Discriminating Sensor Open
G91J12756Courtesy of GENERAL MOTORS CORP.
