Action Taken

WARNING: This page is about a different car, the 1991 Geo Storm, 1991 Geo Metro, 1990 Geo Storm, and 1990 Geo Metro. However, it is still accessible from the selected car via links, so may be relevant.

DERM turns on INFLATABLE RESTRAINT indicator light.

NOTE: Test numbers refer to test numbers on diagnostic chart. For circuit number identification, see WIRING DIAGRAMS .

Checks if fault is in steering column. SIR load tester simulates resistance of good steering column wiring and components.
Checks if fault is in inflator module or SIR coil.
Checks if fault is in resistor module.
Checks if fault is in circuits No. 347 or 349.

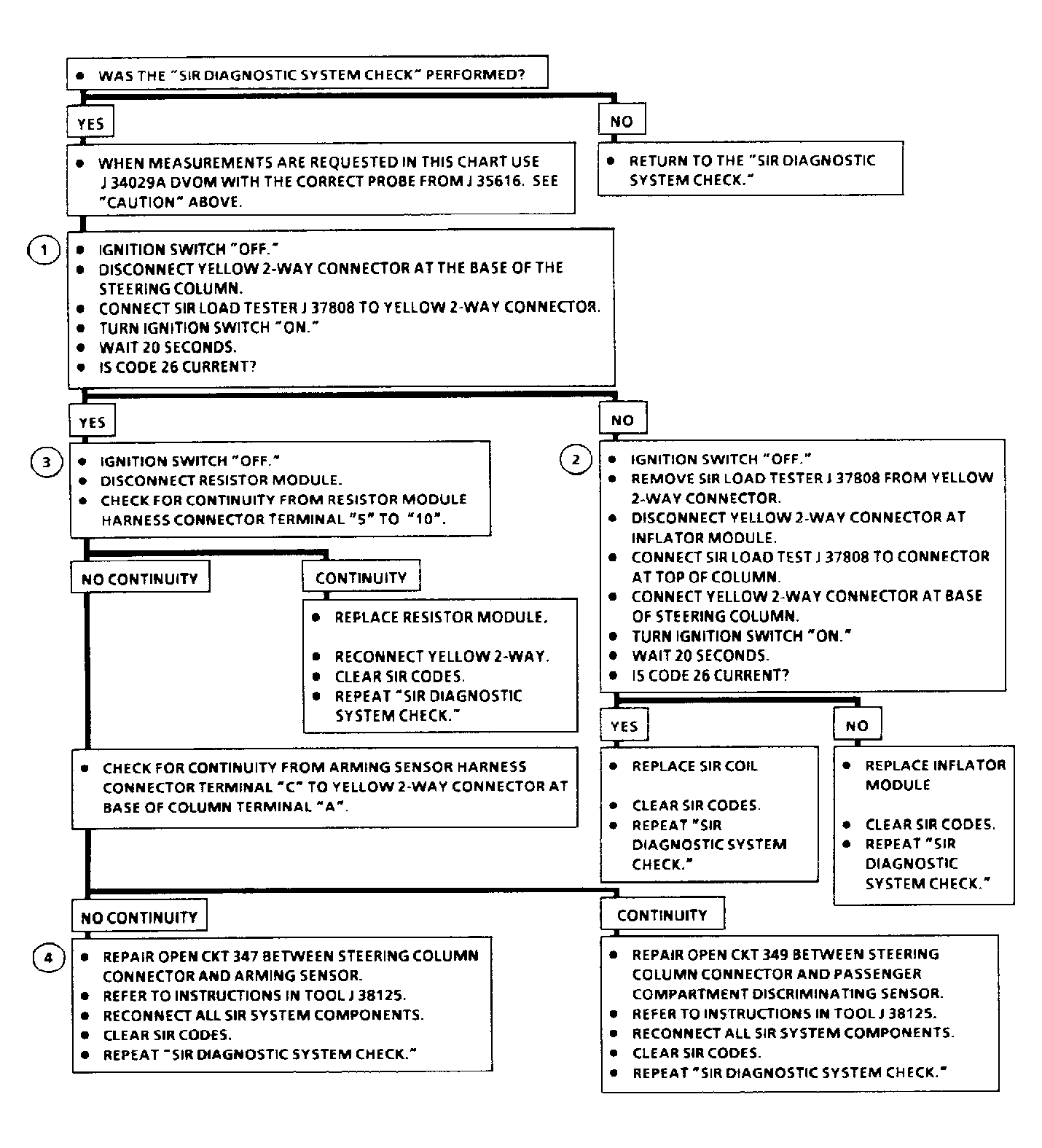

Fig 1: Code 26, Open In Steering Column

Courtesy of GENERAL MOTORS CORP.
