Inflator Module: Removal

WARNING: This page is about a different car, the 1991 Geo Storm, 1991 Geo Metro, 1990 Geo Storm, and 1990 Geo Metro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Before proceeding, follow air bag service precautions. See SERVICE PRECAUTIONS  . Disable SIR system. See DISABLING & ACTIVATING AIR BAG SYSTEM  .

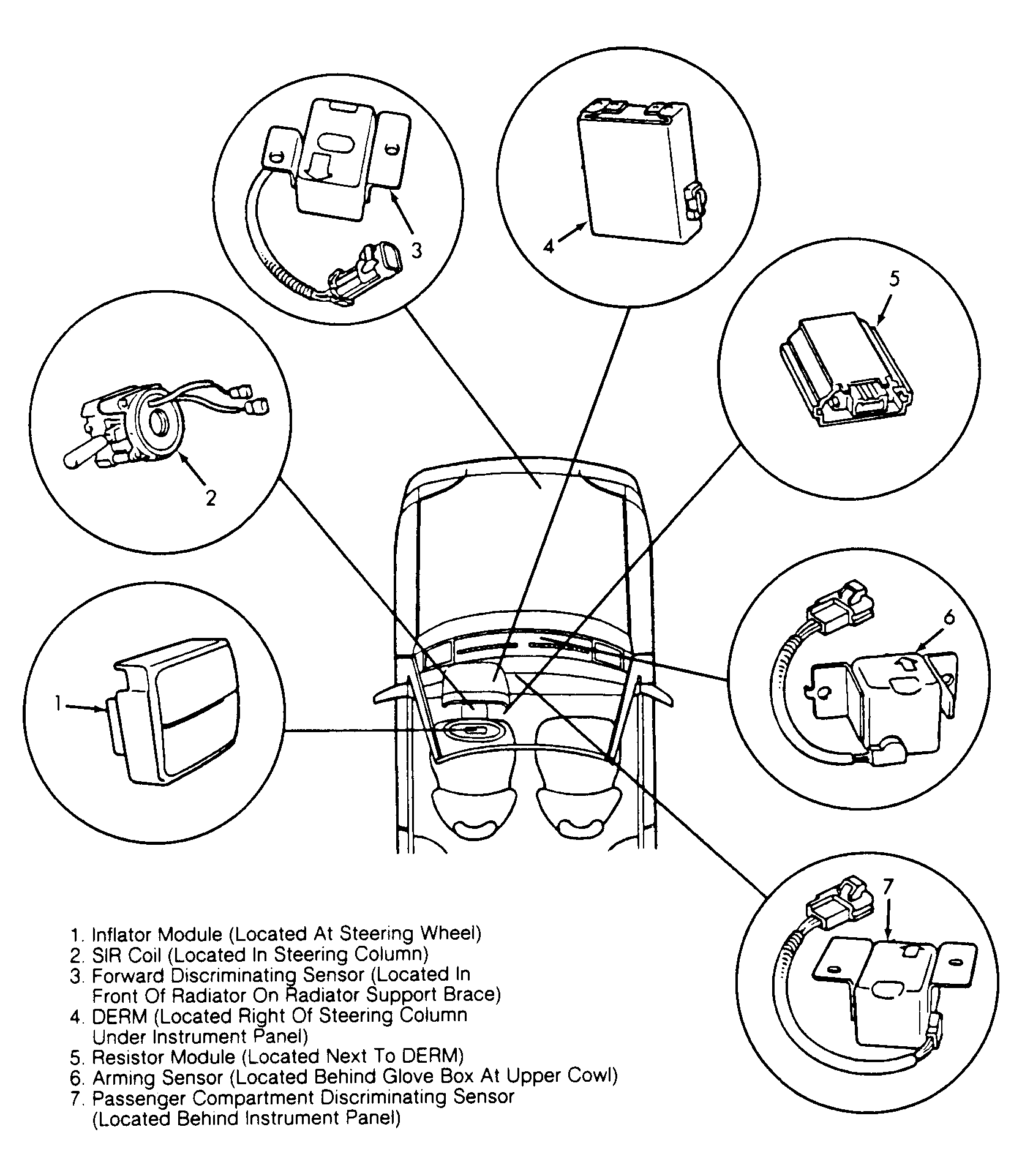

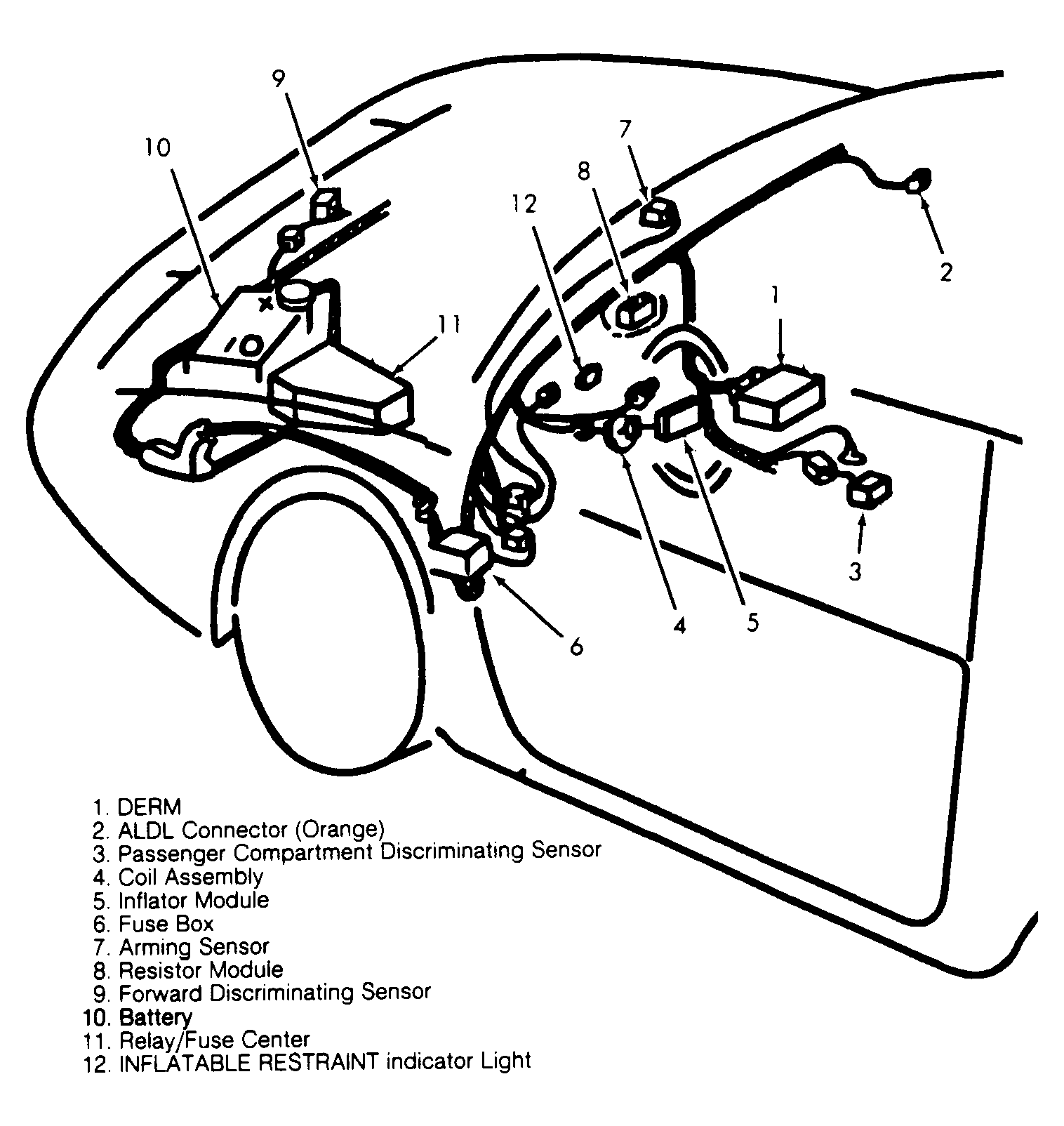

  2. Inflator module is located on steering wheel hub. See Figure or Figure . Ensure front wheels are straight-ahead. Remove module screws from behind steering wheel. Disconnect module connectors, and remove inflator module. Store assembly with pad surface upward.
