Code 71, EGR Temperature Sensor Circuit (CALIF. Only)

WARNING: This page is about a different car, the 1992 Geo Prizm. However, it is still accessible from the selected car via links, so may be relevant.

Code 71 indicates that EGR temperature sensor has signaled the ECM of a temperature greater than, or less than, the calibrated range.

NOTE: Test numbers refer to test numbers on diagnostic chart.

ECM should provide 4-5 volts to EGR temperature sensor.
ECM provides ground for EGR temperature sensor.
Checks EGR temperature sensor resistance.

Fig 1: Code 71 Schematic (Calif. GSi), EGR Temp. Sensor Circuit

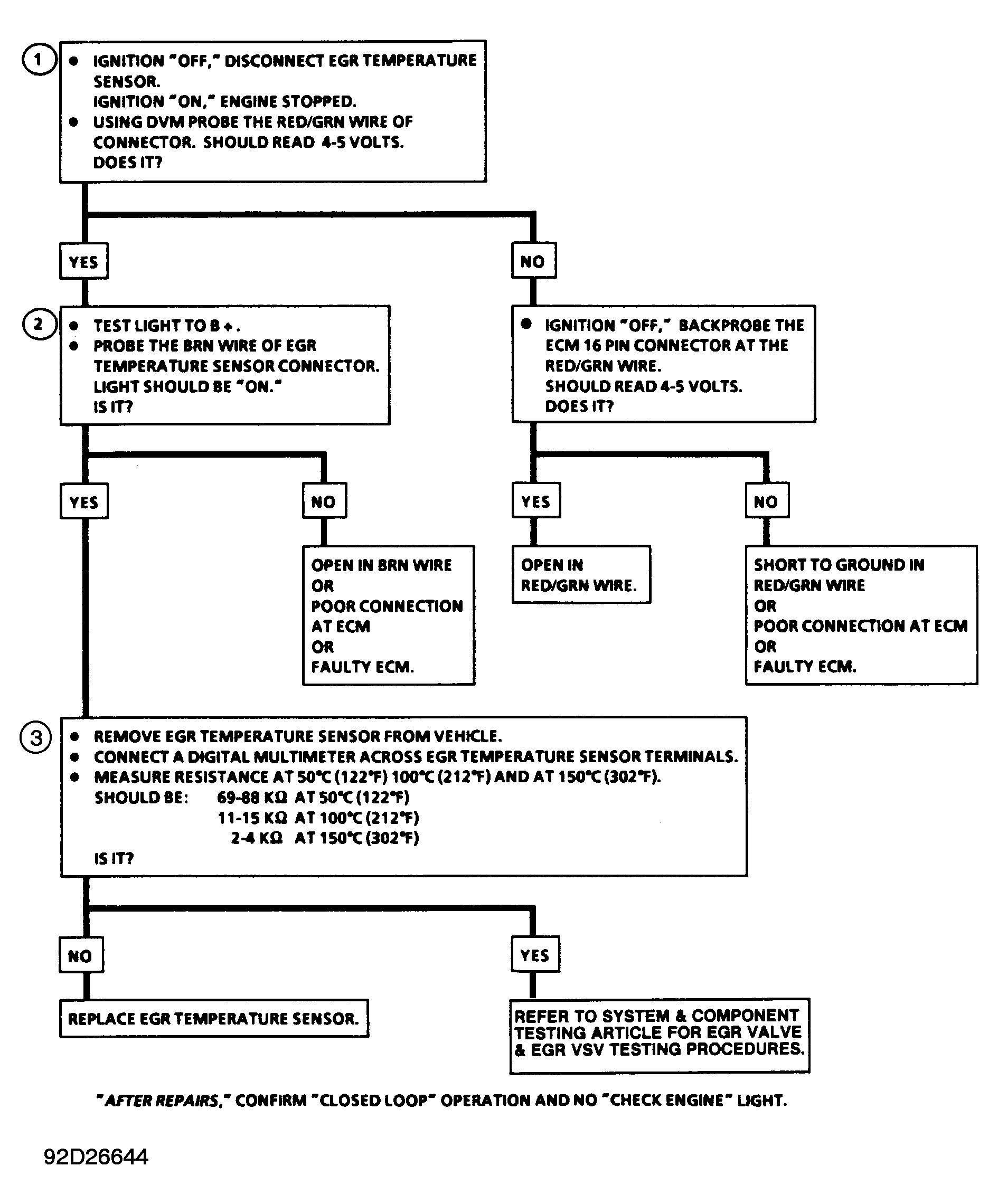

Fig 2: Code 71 Flow Chart (Calif. GSi), EGR Temp. Sensor Circuit
