Code 71, EGR Temperature Sensor Circuit (CALIF. Only)

WARNING: This page is about a different car, the 1992 Geo Prizm. However, it is still accessible from the selected car via links, so may be relevant.

Code 71 indicates that EGR temperature sensor has signaled ECM of a temperature greater or less than calibrated range.

NOTE: Test numbers refer to test numbers on diagnostic chart.

ECM should provide 4-5 volts to the EGR temperature sensor.
ECM provides ground for EGR temperature sensor.

Fig 1: Code 71 Schematic (Calif. Except GSi), EGR Temp. Sensor Ckt.

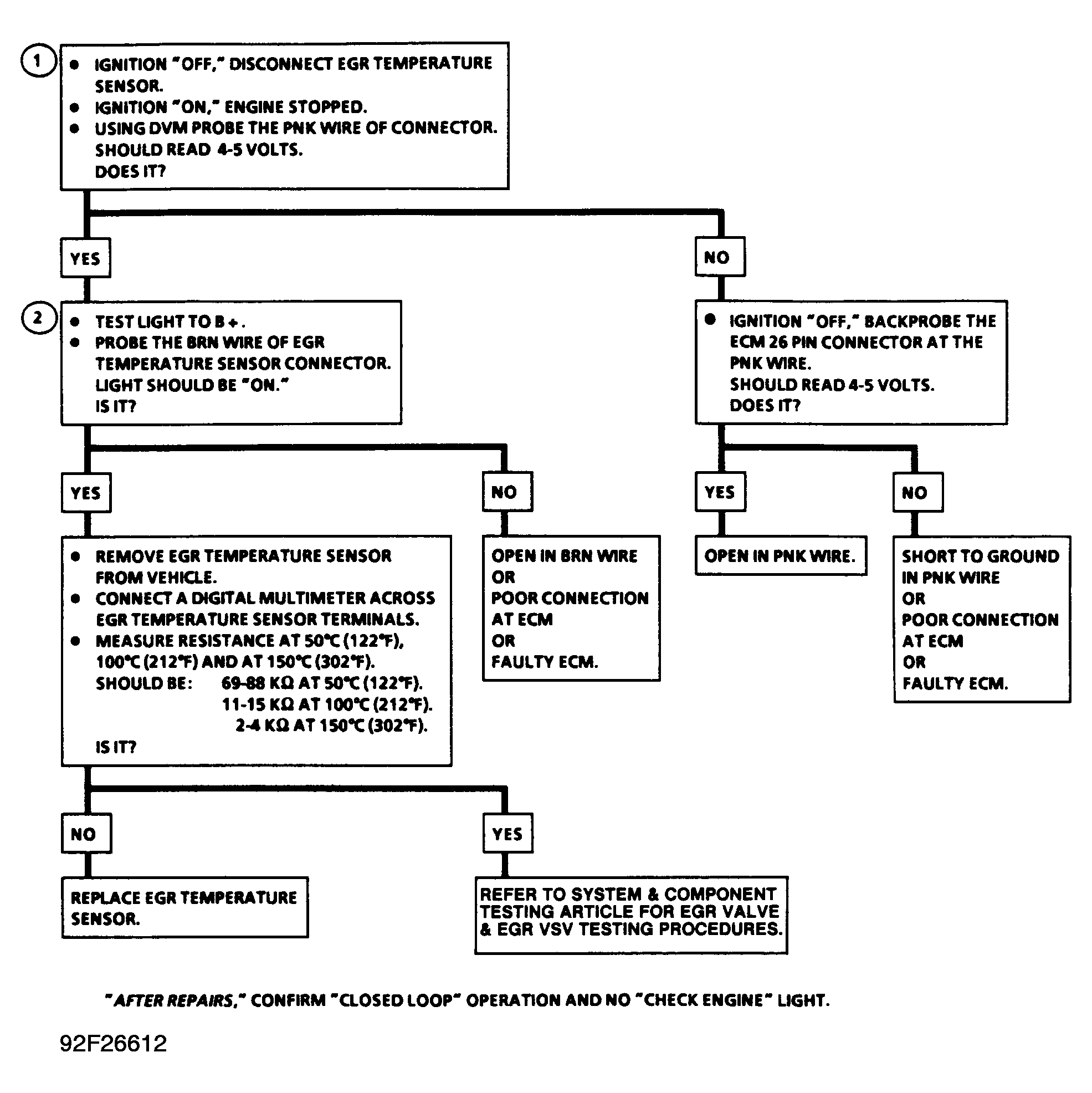

Fig 2: Code 71 Flow Chart (Calif. Except GSi), EGR Temp. Sensor Ckt.
