Diagnostic Aids

WARNING: This page is about a different car, the 1992 Geo Prizm. However, it is still accessible from the selected car via links, so may be relevant.

Intermittent condition may be caused by rubbed-through insulation or a wire broken inside insulation. Check ECM harness connectors for backed-out or damaged terminals. If code is intermittent, refer to TESTS W/O CODES article in this section.

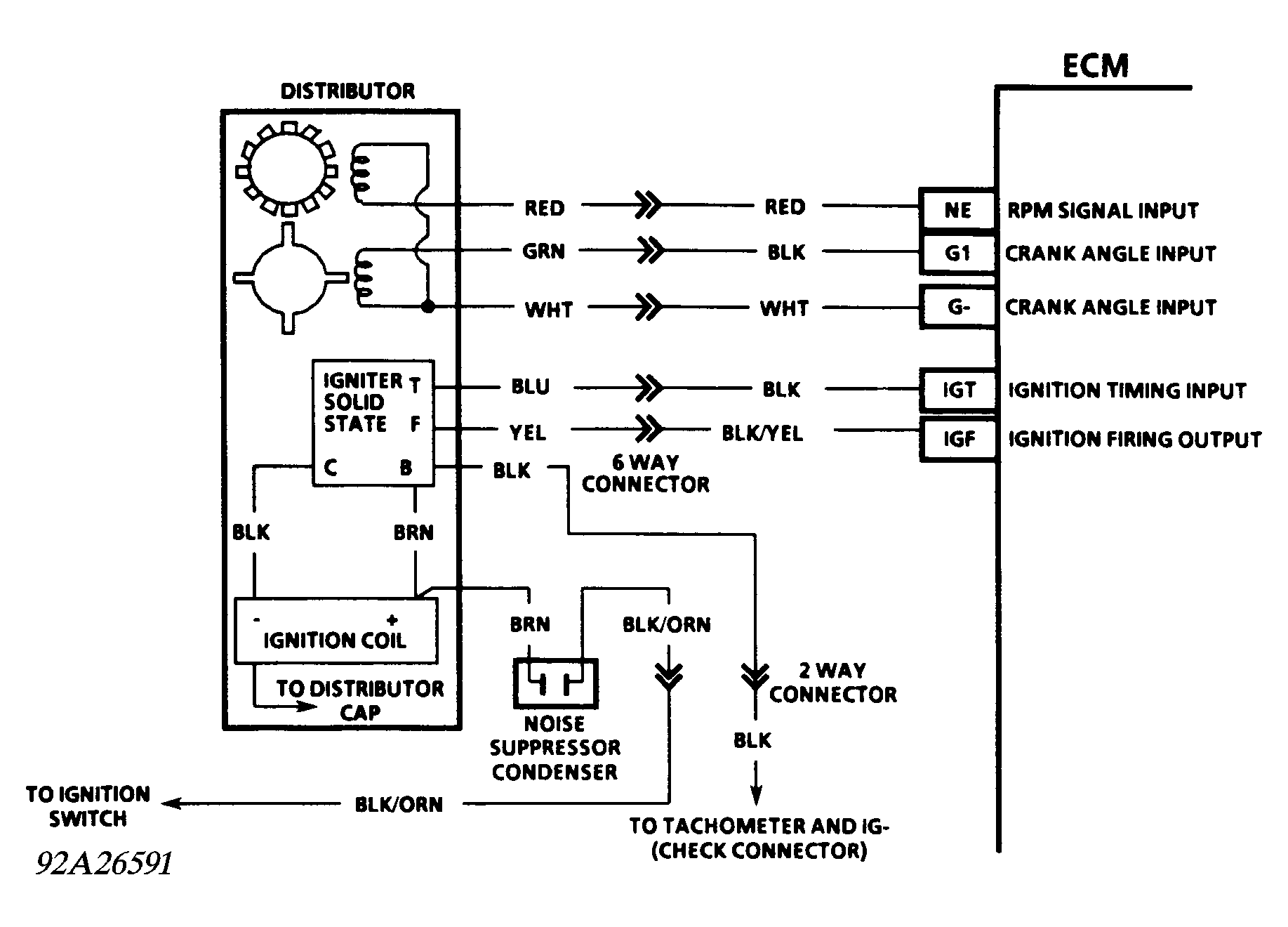

Fig 1: Code 14 Schematic (Except GSi), Ignition Signal Circuit No Signal

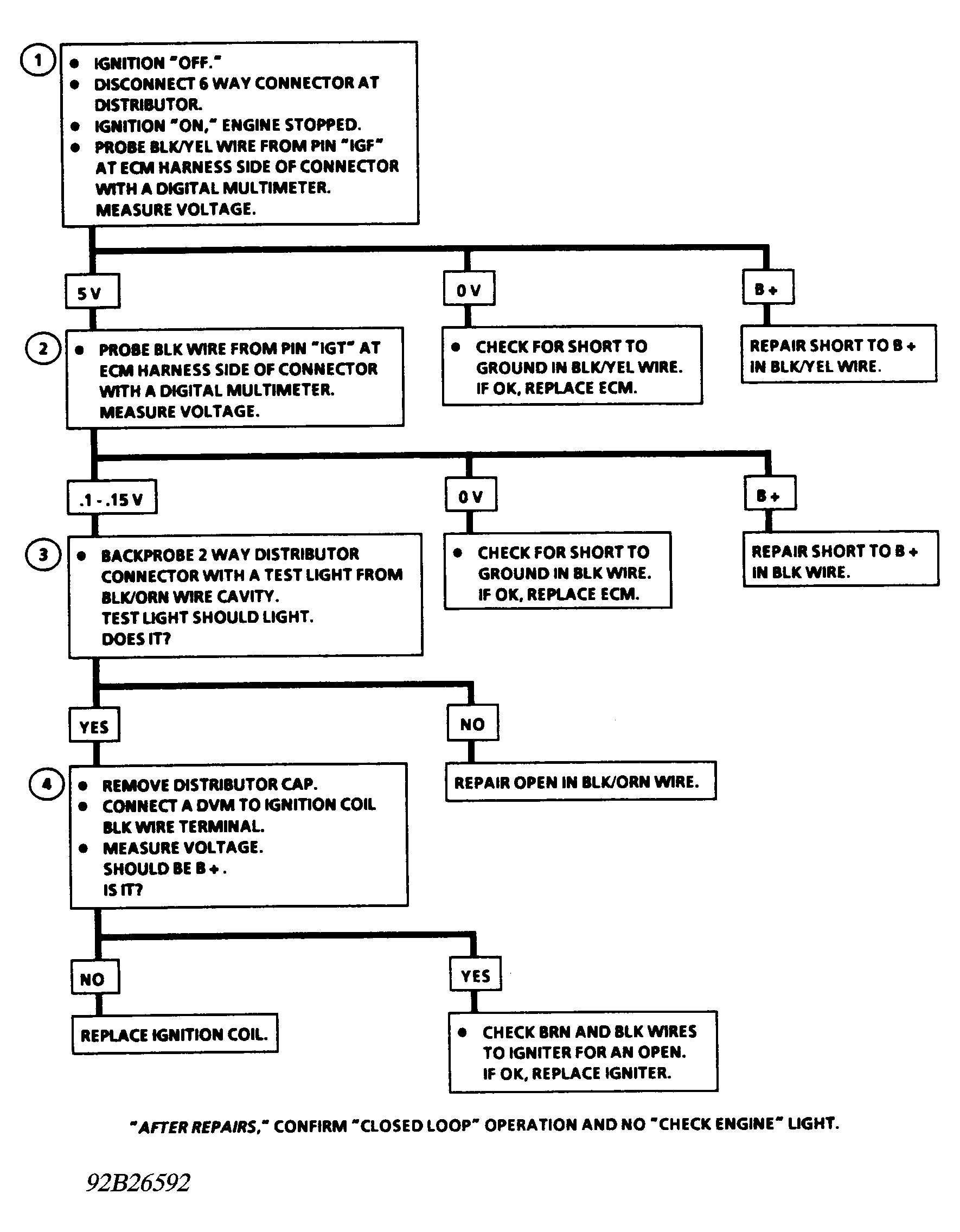

Fig 2: Code 14 Flow Chart (Except GSi), Ignition Signal Circuit No Signal
