Removal (Metro)
- Raise and support vehicle. Remove wheel. Remove spindle cap. Straighten staked portion of drive axle nut. Remove and discard spindle nut. Remove washer.

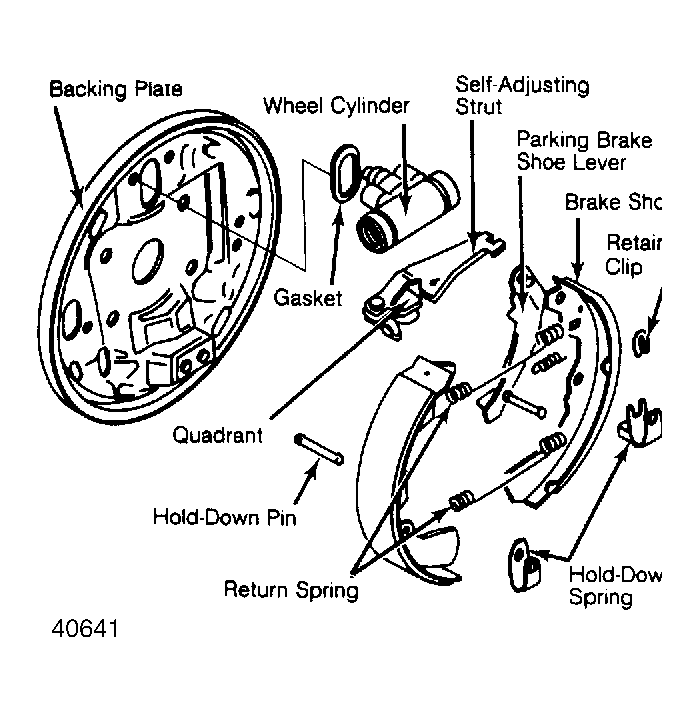

- Pull brake drum from spindle using slide hammer (attached to wheel lug nuts). Remove return and hold-down springs. Disconnect parking brake cable. Remove brake shoes. See Fig 1.
