Removal & Installation (Tracker)

Release parking brake. Remove parking brake cover. Loosen parking brake cable lock nut. Raise and support vehicle. Remove wheel. Remove brake drum-to-axle nuts. Remove brake drum using Slide Hammer (J-2619-01) and Adapter (J-37781).
Pull drum from axle flange. Remove return springs and hold-down clips. Disconnect parking brake cable. Remove brake shoes. See Fig 1. To install, reverse removal procedure. Adjust rear brakes. See REAR BRAKE SHOES under ADJUSTMENTS .

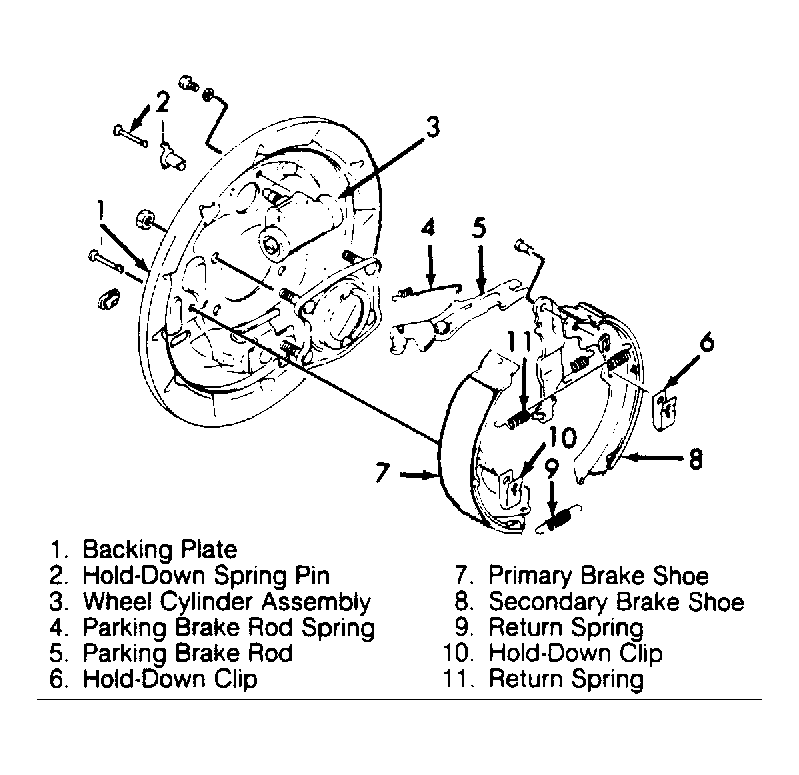

Fig 1: Exploded View Of Rear Brake Assembly (Tracker)

Courtesy of GENERAL MOTORS CORP.
