Removal & Installation (Prizm, Storm & Storm GSi)

Raise and support vehicle. Remove wheel and brake drum. Remove return and hold-down springs. Disconnect parking brake cable. Remove brake shoes. See Fig 1 or Fig 2 . To install, reverse removal procedure. Adjust rear brakes. See REAR BRAKE SHOES under ADJUSTMENTS .

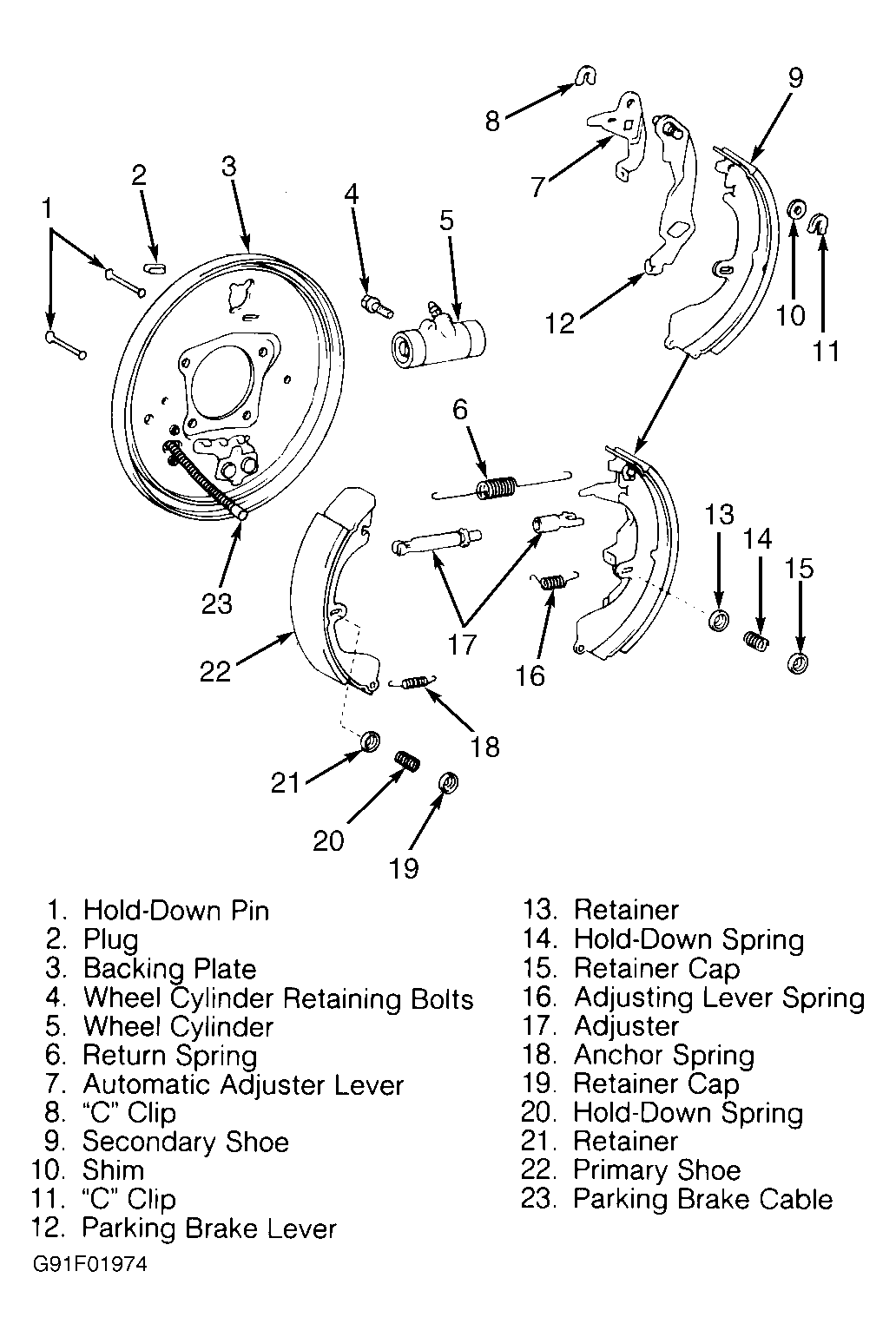

Fig 1: Exploded View Of Rear Brake Assembly (Prizm)

Courtesy of GENERAL MOTORS CORP.

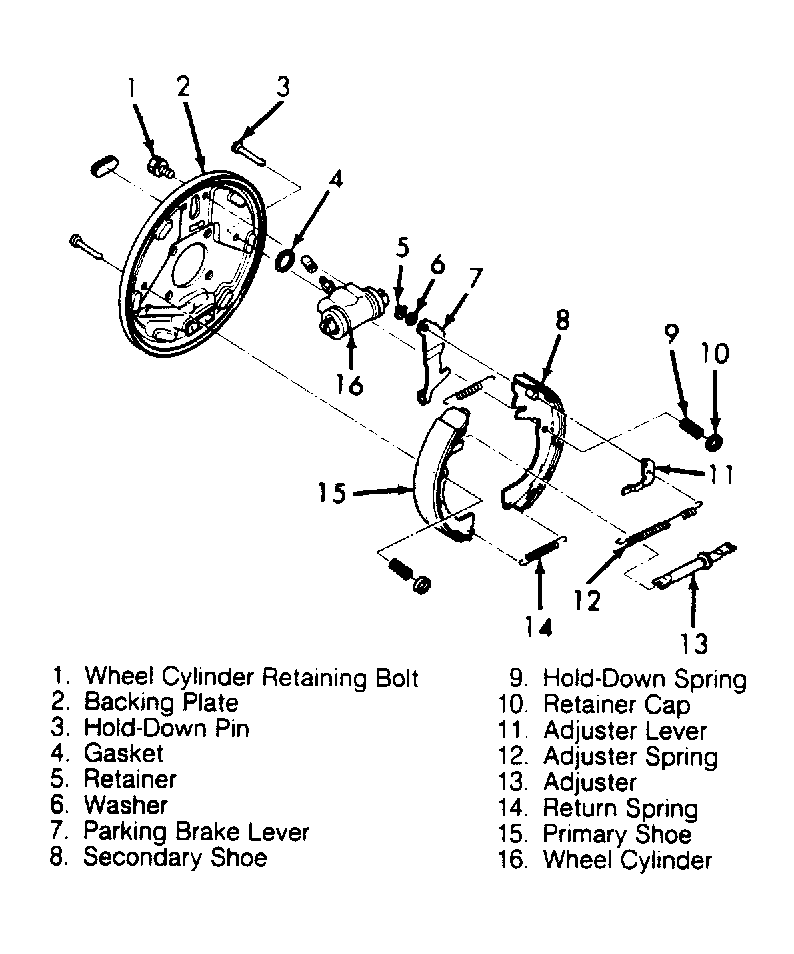

Fig 2: Exploded View Of Rear Brake Assembly (Storm & Storm GSi)

Courtesy of GENERAL MOTORS CORP.
