Removal & Installation (Ignition Switch - Prizm)

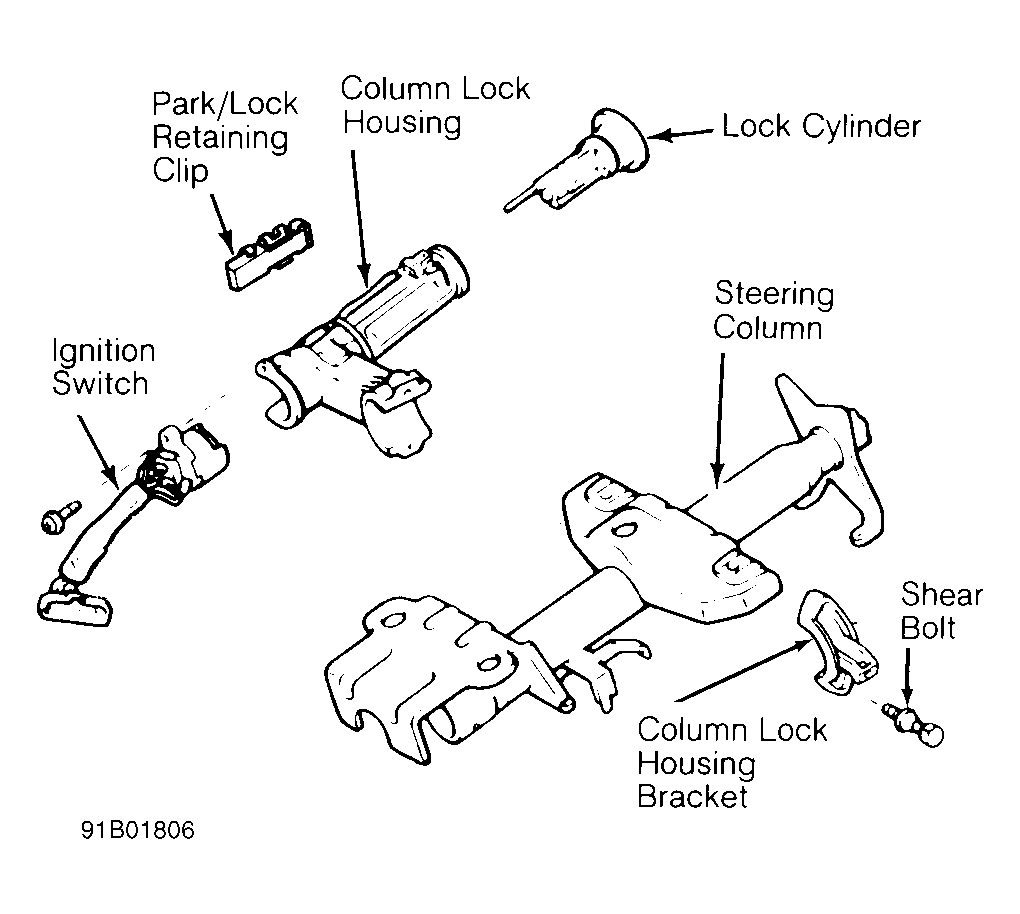

Disconnect negative battery cable. Remove lower dash trim cover and both steering column covers. See Figure . Disconnect ignition switch harness connector from behind instrument panel, near steering column. Remove steering column mounting bolts and lower column. Unbolt ignition switch from rear of column lock housing, and remove switch. See Figure . To install, reverse removal procedure.
